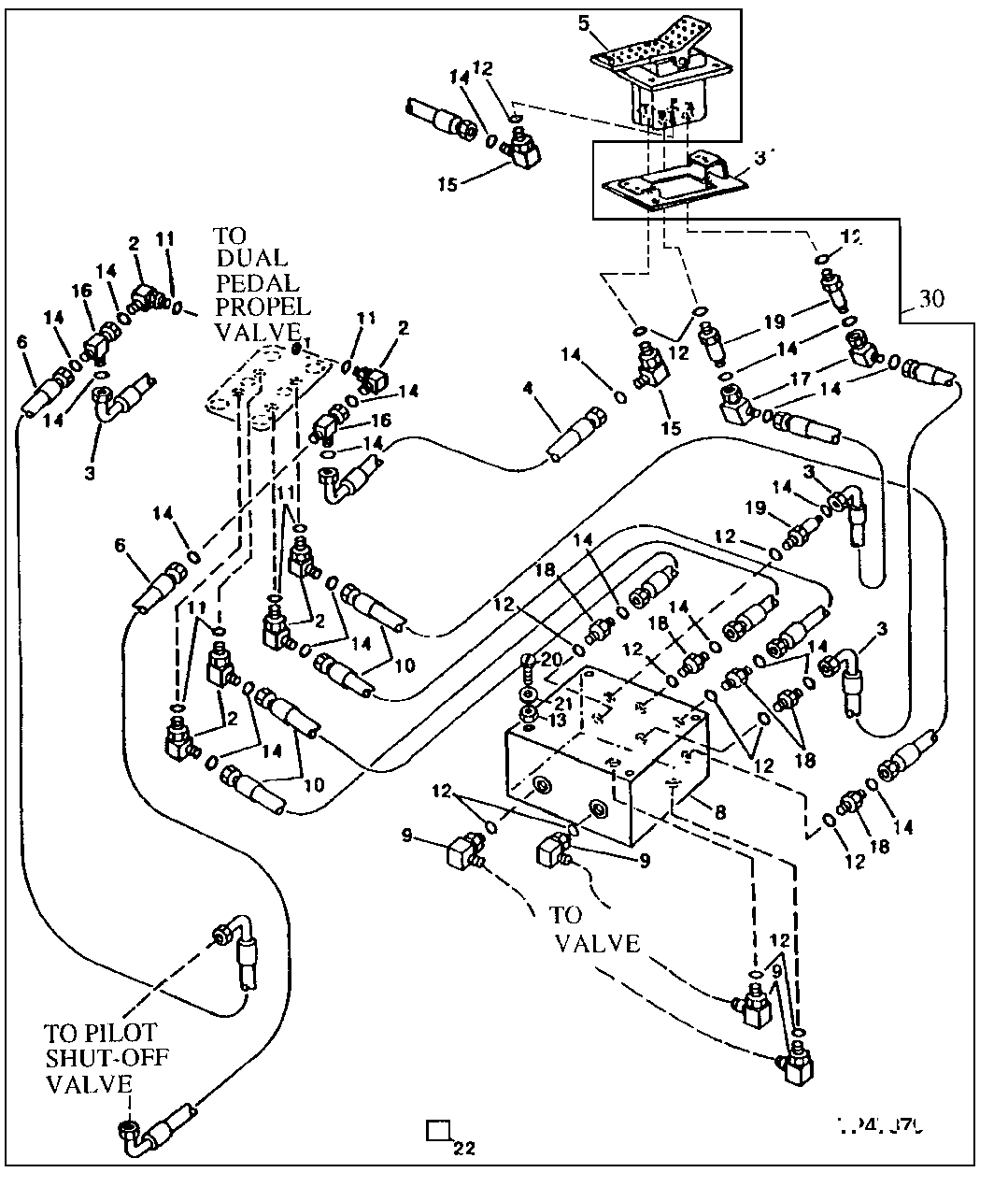

Запчасти John Deere 92ELC 242 - Single Pedal Control Kit 3315 Control Linkage

2

AT115002

Elbow Fitting

6шт.

3

AT133590

Hydraulic Hose

3шт.

4

AT151034

Hydraulic Hose

1шт.

5

AT152120

Valve

WHOLEGOODS (FOOT)

1шт.

6

AT170455

Hydraulic Hose

2шт.

8

AT170459

Hyd Actuated Control Valve

1шт.

9

AT35121

Elbow Fitting

4шт.

10

AT72067

Hydraulic Hose

4шт.

11

M800650

Packing

6шт.

12

R26448

O-Ring

14шт.

13

14M7273

Nut

4шт.

14

T77613

O-Ring

20шт.

15

38H1004

Elbow Fitting

2шт.

16

38H1030

Tee Fitting

2шт.

17

38H1094

Elbow Fitting

2шт.

18

38H1160

Adapter Fitting

6шт.

19

38H1212

Adapter Fitting

3шт.

20

19M8456

Cap Screw

4шт.

21

24M7036

Washer

4шт.

22

T153674

Label

(WITHOUT AUXILIARY HYDRAULICS) (LO WER FRONT OF RIGHT SIDE CAB WINDOW)

1шт.

T153676

Label

(WITH AUXILIARY HYDRAULICS) (LOWE R FRONT OF RIGHT SIDE CAB WINDOW)

1шт.

30

Kit

WHOLEGOODS (SINGLE PEDAL CONTROL) (ALSO OR DER AT115535 SUPPORT PEDAL) ( AT170399 NLA)

1шт.

31

AT115535

Support

1шт.
