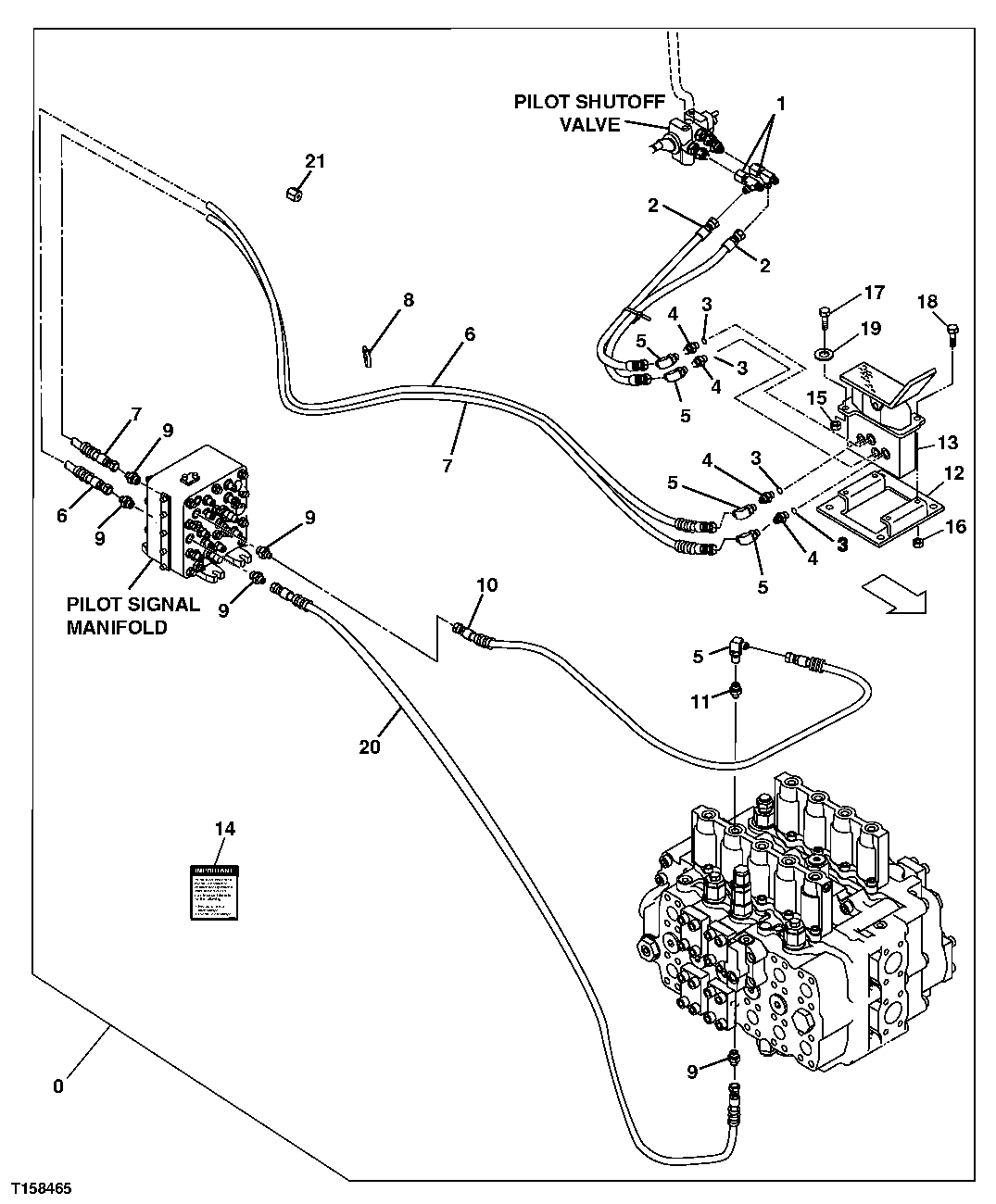

Запчасти John Deere 92ELC 239 - AUXILIARY 2-WAY HYDRAULIC FOOT PEDAL CONTROL 3315 Control Linkage

0

Field Installation Kit

(AUXILIARY FOOT PEDAL CONTROL) (SUB FOR AT160350 AND AT185482 ( AT195684 NLA) (WHOLE GOODS))

1шт.

1

AT36921

Tee Fitting

2шт.

2

AH108250

Hose

2шт.

3

R26448

O-Ring

4шт.

4

R27212

Fitting

4шт.

5

AE24616

Elbow Fitting

5шт.

6

AE42067

Hydraulic Hose

1шт.

7

AE42067

Hydraulic Hose

1шт.

8

H77698

Tie Band

5шт.

9

4200466

Adapter Fitting

(SUB FOR TH108320)

5шт.

CH11570

O-Ring

5шт.

10

AT68901

Hydraulic Hose

2шт.

11

4202422

Adapter Fitting

(SUB FOR TH108440)

1шт.

CH11570

O-Ring

1шт.

12

AT115535

Support

1шт.

13

AT152120

Valve

1шт.

14

T149434

Label

1шт.

15

14M7296

Flange Nut

1шт.

16

14M7298

Flange Nut

4шт.

17

19M7784

Screw

2шт.

18

19M7866

Screw

4шт.

19

24M7296

Washer

2шт.

20

AR90081

Hydraulic Hose

1шт.

21

R31147

Fitting

(TANK PORT DRAIN LINE)

1шт.
