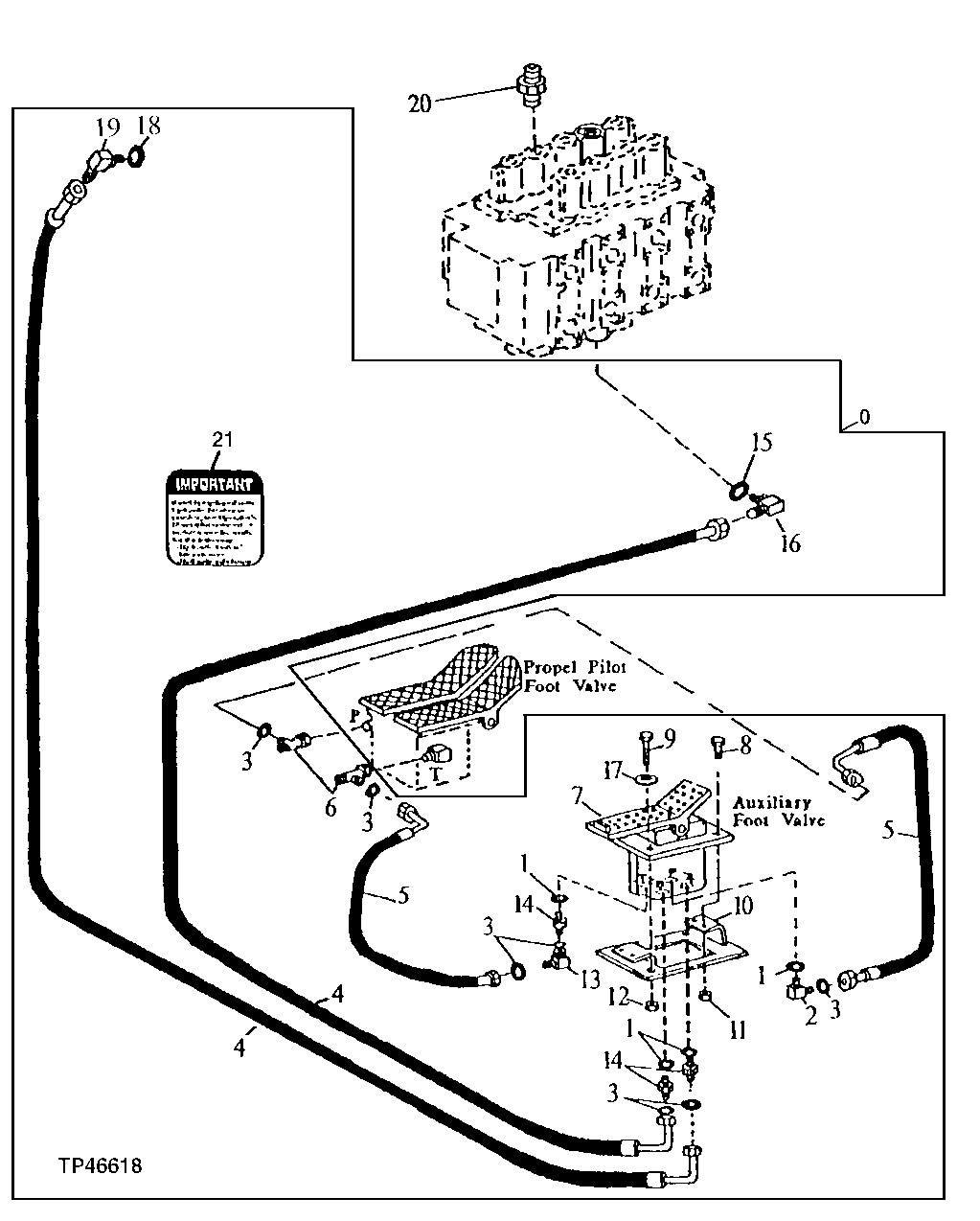

Запчасти John Deere 92ELC 238 - AUXILIARY FOOT CONTROL 3315 Control Linkage

0

Field Installation Kit

( AT160350 AND AT185482 NO LONGER AVAILABLE , SUB AT195684) ( AT195684 NLA) (AUXILIARY F OOT PEDAL) (ALSO ORDER TH108320 WHOLE GOODS)

1шт.

1

R26448

O-Ring

4шт.

2

38H1004

Elbow Fitting

1шт.

3

T77613

O-Ring

7шт.

4

AT160348

Hydraulic Hose

2шт.

5

AT152138

Hydraulic Hose

2шт.

6

AT36921

Tee Fitting

2шт.

7

AT152120

Valve

1шт.

8

19M7866

Screw

4шт.

9

19M7784

Screw

2шт.

10

AT115535

Support

1шт.

11

14M7298

Flange Nut

4шт.

12

14M7296

Flange Nut

1шт.

13

38H1094

Elbow Fitting

1шт.

14

38H1160

Adapter Fitting

3шт.

15

CH11570

O-Ring

1шт.

16

AT137356

Elbow Fitting

1шт.

17

24M7296

Washer

2шт.

18

CH11570

O-Ring

(NOT USED ON 892E-LC)

1шт.

19

AT137356

Elbow Fitting

(NOT USED ON 892E-LC)

1шт.

20

3052746

Adapter Fitting

(SUB FOR AT137208)(NOT FOR USE ON 992E LC APPLICATIONS)

1шт.

4200466

Adapter Fitting

(SUB FOR TH108320)(FOR USE O N 992E LC APPLICATIONS ONLY)

1шт.

21

T149434

Label

(ON CAB RIGHT SIDE BETWEEN ASH T RAY AND OPERATOR'S CAUTION LABEL)

1шт.
