Запчасти John Deere 92ELC 234 - Control Lever (Pilot Control Shut-Off Valve) (006156 - ) 3315 Control Linkage

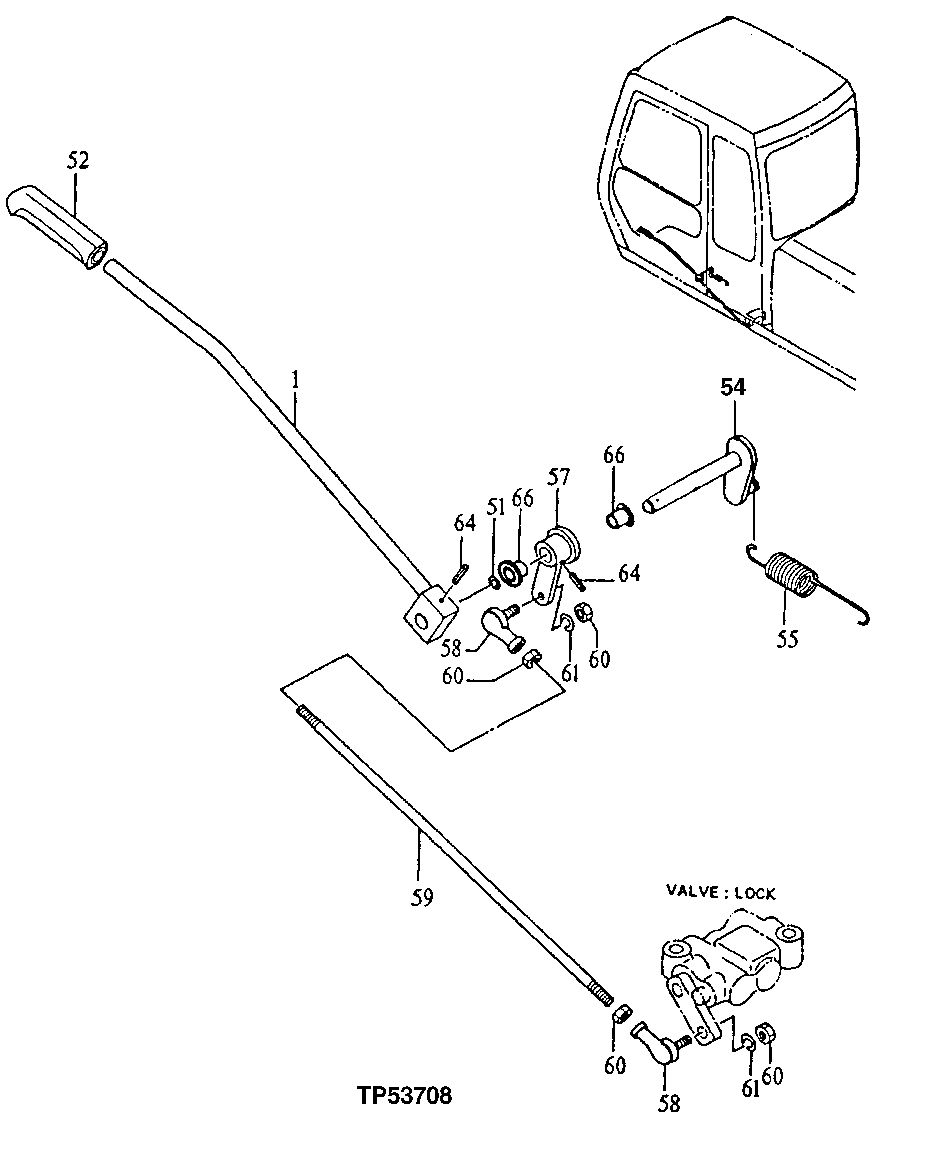

Схема запчастей John Deere 92ELC - 234 - Control Lever (Pilot Control Shut-Off Valve) (006156 - ) 3315 Control Linkage

Артикул

Название

Примечание

Количество

1

8050900

Lever

(SUB FOR AT154503)

1шт.

51

24M7053

Washer

17 X 30 X 3 mm

1шт.

52

3051611

Grip

(SUB FOR AT154122)

1шт.

54

9745041

Link

(SUB FOR AT177399)

1шт.

55

4189184

Extension Spring

(SUB FOR TH108392)

1шт.

57

9743595

Lever

(SUB FOR AT177400)

1шт.

58

T110021

Ball Joint Socket

2шт.

59

4259591

Rod

(SUB FOR AT154262)

1шт.

60

14M7273

Nut

M8

4шт.

61

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

64

34M7225

Spring Pin

8 X 28 mm (SUB FOR 34M6402)

2шт.

66

4341810

Bushing

(SUB FOR AT177401)

2шт.

Выбрано товаров: 12
