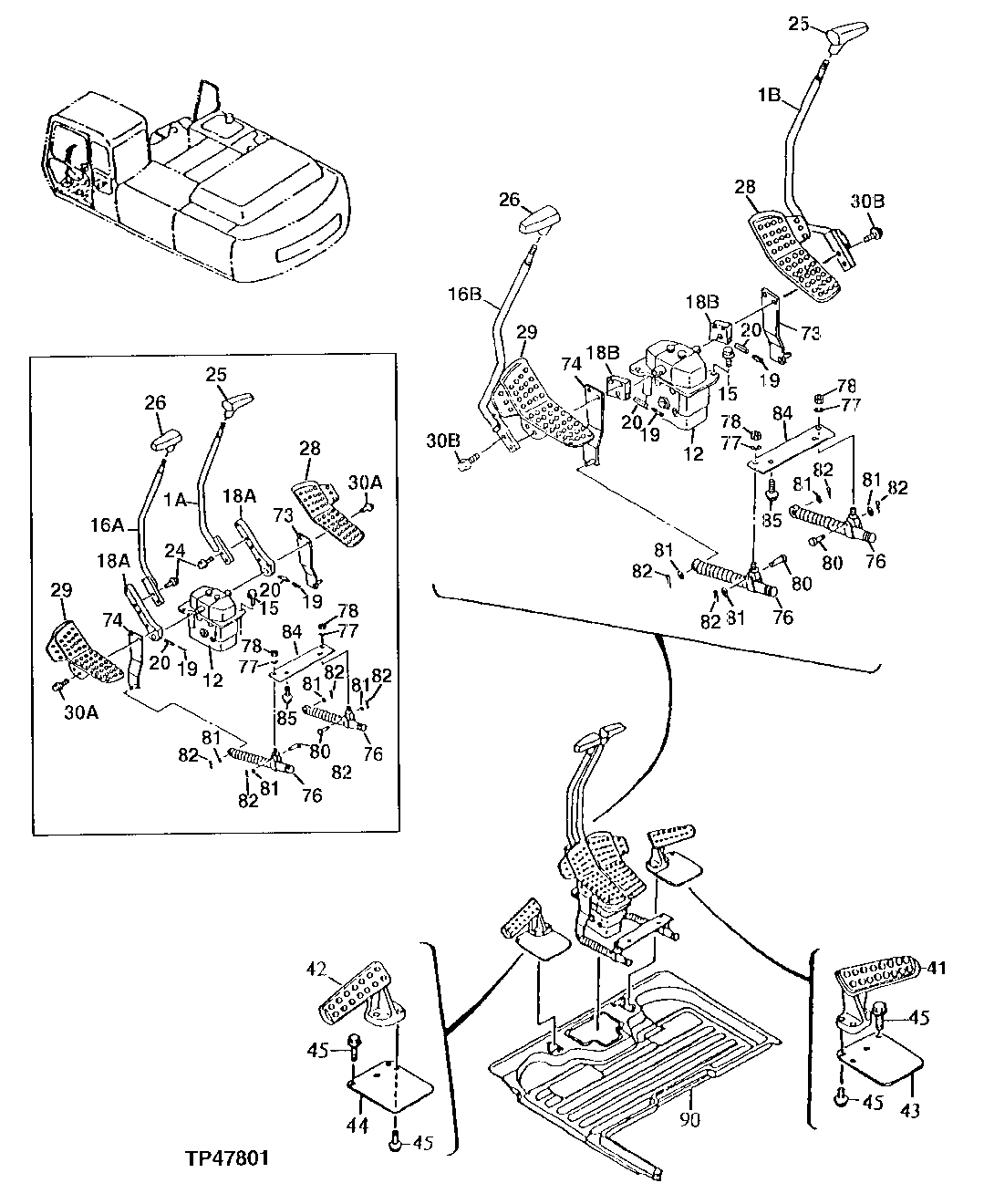

Запчасти John Deere 92ELC 231 - Control Lever 3315 Control Linkage

1A

8075450

Lever

(SUB FOR AT159142, 8062667)(USE IF AVAILAB LE) (IF AT159142 NOT AVAILABLE, SUB AT17446 7, AT174468, (2) AT174469 AND (4) 19M7935)

1шт.

2043585

Grip

(NOT ILLUSTRATED)

1шт.

4424185

Nut

(NOT ILLUSTRATED)

1шт.

1B

8075450

Lever

(SUB FOR AT174467, 8062667)

1шт.

2043585

Grip

(NOT ILLUSTRATED)

1шт.

4424185

Nut

(NOT ILLUSTRATED)

1шт.

12

9149235

Hyd Actuated Control Valve

(PILOT), (SUB FOR AT154 526 ) (SUB FOR AT214393)

1шт.

15

19M7358

Cap Screw

M10 X 40

2шт.

12M7066

Lock Washer

10 mm

2шт.

16A

Lever

(SUB AT174467, AT174468, (2) AT174 469 OR (4) 19M7935)( AT159143 NLA)

1шт.

16B

8075449

Lever

(SUB FOR AT174468 OR 8062623)

1шт.

2043584

Grip

(NOT ILLUSTRATED)

1шт.

4424185

Nut

(NOT ILLUSTRATED)

1шт.

18A

Bracket

( AT202294 NO LONGER AVAILABLE, SUB 8075450, 2043585, 4424185)

2шт.

18B

T205603

Bracket

(SUB FOR AT174469 OR 3072628)

2шт.

19

34M7062

Spring Pin

5 X 32 mm

2шт.

20

34M7124

Spring Pin

8 X 30 mm (SUB FOR 34M7065)

2шт.

24

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

25

2030249

Grip

(SUB FOR AT154077)

1шт.

26

2030254

Grip

(SUB FOR AT154078)

1шт.

28

1024384

Pedal

(SUB FOR AT202292)

1шт.

29

1024224

Pedal

(SUB FOR AT202291)

1шт.

30A

19M8638

Cap Screw

M20 X 65

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

30B

19M7935

Cap Screw

M10 X 55

4шт.

41

1015478

Footrest

(SUB FOR AT154056)

1шт.

42

1015477

Footrest

(SUB FOR AT154055)

1шт.

43

3052543

Cover

(SUB FOR AT154127)

1шт.

44

4338635

Cover

(SUB FOR AT202338)

1шт.

45

19M7550

Cap Screw

M10 X 35

8шт.

12M7066

Lock Washer

10 mm

8шт.

73

Bracket

( AT307239, AT202379 AND 9742276 NLA)

1шт.

74

AT307240

Bracket

(SUB FOR AT202380 OR 9742277)

1шт.

76

4204959

Torsional Damper

(SUB FOR TH108384)

2шт.

77

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

78

14M7273

Nut

M8

2шт.

80

4044928

Pin

8 X 29 mm (SUB FOR TH108385)

2шт.

81

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

82

H132922

Cotter Pin

4шт.

84

4359716

Bracket

(SUB FOR AT201281 ) (SUB FOR AT215938)

1шт.

85

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

90

0001671

Mat

(SUB FOR AT202277)

1шт.
