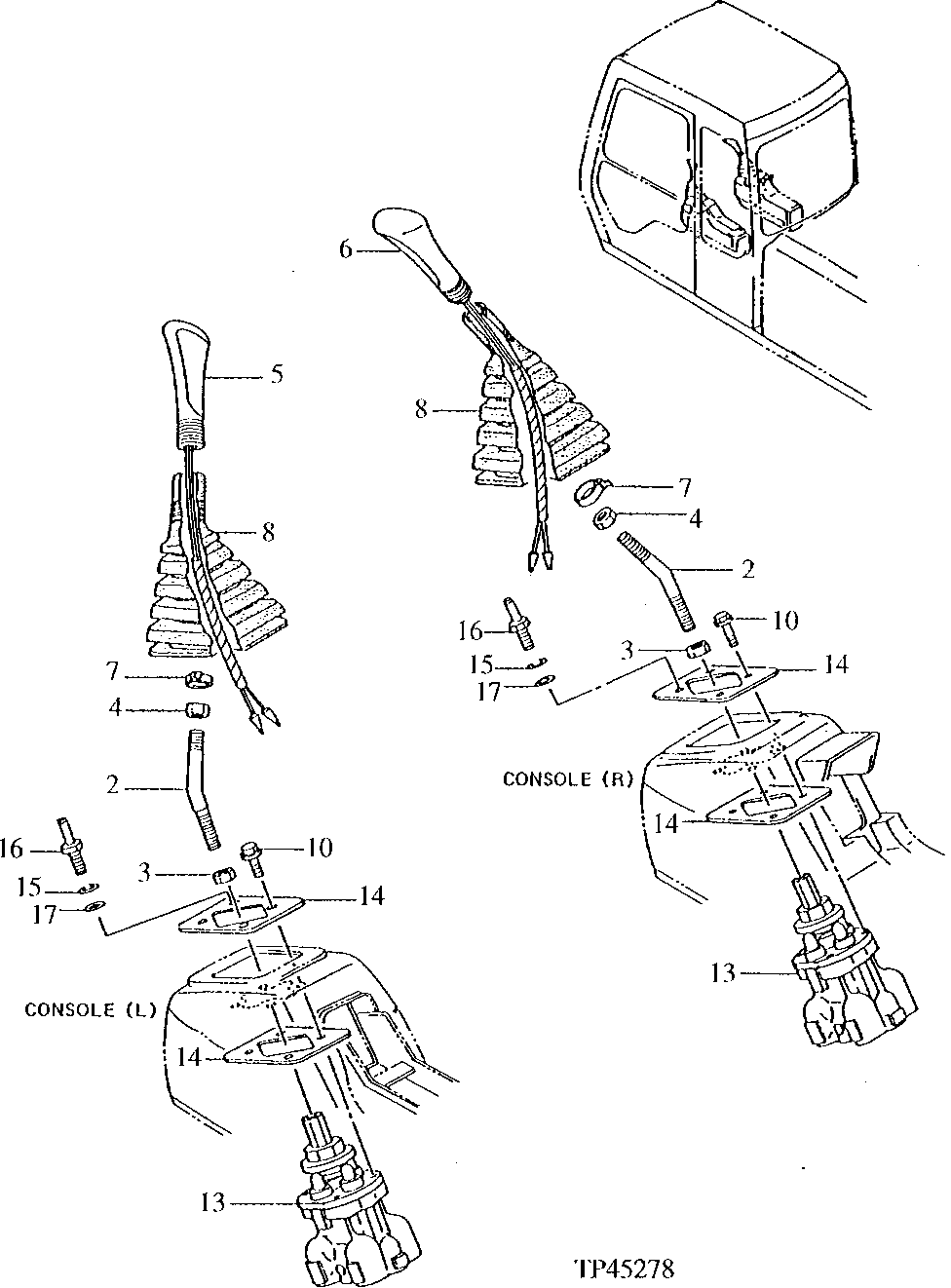

Запчасти John Deere 92ELC 230 - Control Lever 3315 Control Linkage

2

4334707

Lever

(SUB FOR AT202326)(USE IF AVAILABLE)

2шт.

4334707

Lever

(SUB FOR AT202326 ) (SUB FOR AT177386)

2шт.

3

14M7141

Nut

M14

2шт.

4

14M7357

Nut

M12

2шт.

5

2033123

Grip

(SUB FOR AT167505)(WITH HORN SWITCH)

1шт.

6

2032041

Grip

(SUB FOR AT167507)(WITH POWER-LIFT SWITCH)

1шт.

7

H77698

Tie Band

(SUB FOR M88199)

2шт.

8

2030275

Boot

(SUB FOR AT154080, 2030275)

2шт.

10

19M7407

Cap Screw

M8 X 25

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

6шт.

13

9134239

Valve

NLA (ORDER 9134239EX)

2шт.

9134239EX

Hyd/Pilot Cntl Valve Reman

(PILOT) (REMAN FOR 9134239) (SUB FOR AT202169, AT189843)

2шт.

14

4317301

Spacer

(SUB FOR AT165109)

4шт.

15

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

16

34M7086

Spring Pin

3 X 32 mm (SUB FOR 43396 21)(ALONG WITH 4342802)

2шт.

34M7086

Spring Pin

3 X 32 mm (SUB FOR 43396 21, ALONG WITH 4342802)

2шт.

4342802

Screw

(SUB FOR AT177372)(SUB FOR 4 339621, ALONG WITH 34M7086)

2шт.

17

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.
