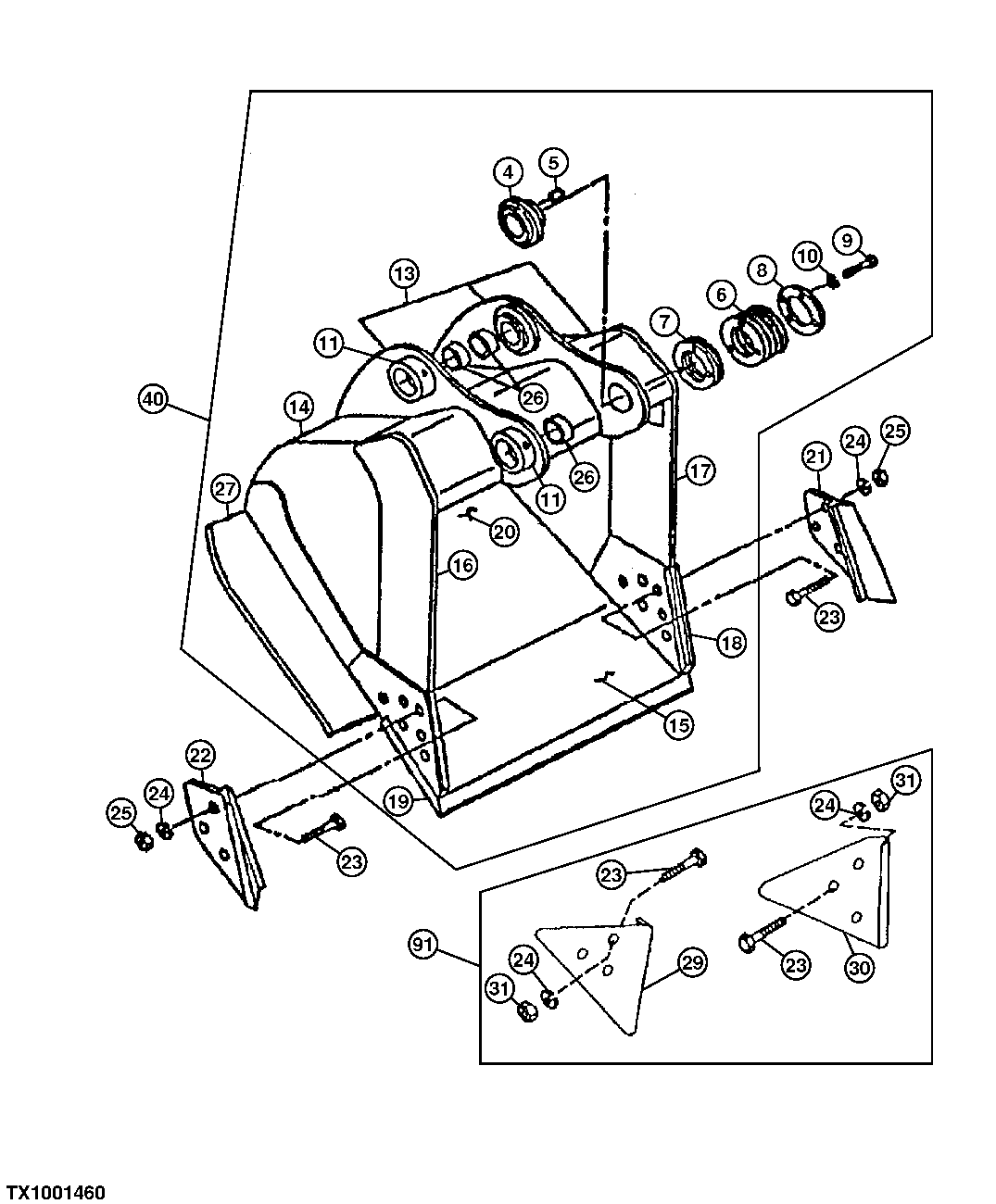

Запчасти John Deere 92ELC 220 - Severe Duty Plate Lip Bucket (Also Order Bucket Tooth Assemblies) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

4

3038818

Boss

(SUB FOR AT131625)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

2шт.

6

AT131816

Washer

(1 MM)

7шт.

7

4207194

Shim

(SUB FOR AT131815)(.5 MM)

2шт.

8

AT131814

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

4шт.

10

12H294

Lock Washer

5/8"

4шт.

11

AT128461

Bushing

2шт.

13

C606320

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

304578

Plate

(F) (RIGHT AND LEFT SIDE)

2шт.

15

AT131096

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300642

Vertical Cutter

(F) (UPPER RIGHT SIDE CUTTER)

1шт.

17

300647

Vertical Cutter

(F) (UPPER LEFT SIDE CUTTER)

1шт.

18

300344

Vertical Cutter

(F) (LEFT SIDE CUTTER INSERT)

1шт.

19

300343

Vertical Cutter

(F) (RIGHT SIDE CUTTER INSERT)

1шт.

20

605585

Moldboard

(F) (42 INCH)

1шт.

605586

Moldboard

(F) (48 INCH)

1шт.

605587

Moldboard

(F) (54 INCH)

1шт.

21

Cutting Edge

(K) (SUB AT131086)(USE ON 42, 48 OR 54 INCH BUCKET)

1шт.

Cutting Edge

(SUB AT131085)(K2) (USE ON 36 INCH BUCKET)

1шт.

22

Cutting Edge

(K) (SUB AT131086)(USE ON 42, 48 OR 54 INCH BUCKET)

1шт.

Cutting Edge

(SUB AT131085)(K2) (USE ON 36 INCH BUCKET)

1шт.

23

09H1772

Bolt

(K) 7/8" X 3-1/2" (USE ON 42, 48 OR 54 INCH BUCKET)

6шт.

09H1771

Bolt

7/8" X 3" (K2) (USE ON 36 INCH BUCKET)

6шт.

24

12H245

Lock Washer

(K) 7/8" (K2)

6шт.

25

14H1077

Nut

(K) 7/8" (K2)

6шт.

26

4205109

Bushing

(SUB FOR AT131768)

3шт.

27

605591

Bar

(F) (DOUBLE BOTTOM WEAR BAR - 42 INCH)

1шт.

605592

Bar

(F) (DOUBLE BOTTOM WEAR BAR - 48 INCH)

1шт.

605593

Bar

(F) (DOUBLE BOTTOM WEAR BAR - 54 INCH)

1шт.
