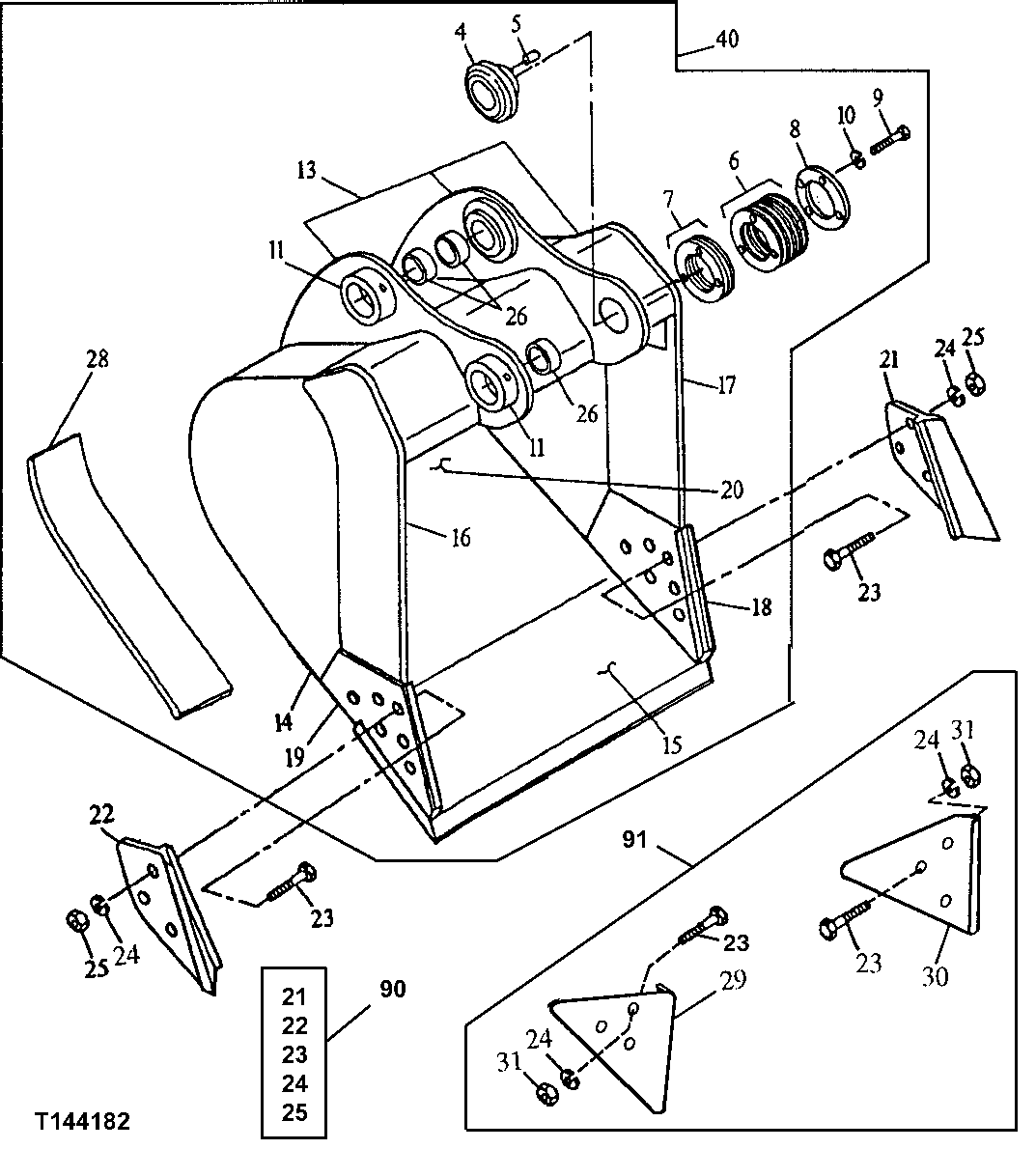

Запчасти John Deere 92ELC 209 - GENERAL PURPOSE BUCKET FOR USE WITH SHORT ARM (ALSO ORDER BUCKET TEETH) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

4

3038818

Boss

(SUB FOR AT131625)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

2шт.

6

AT131816

Washer

(1 MM)

7шт.

7

4207194

Shim

(SUB FOR AT131815)(.5 MM)

2шт.

8

AT131814

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

4шт.

10

12H294

Lock Washer

5/8"

4шт.

11

AT128461

Bushing

2шт.

13

CF609726

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300324

Plate

(F) (RIGHT AND LEFT SIDE)

2шт.

15

AT159362

Cutting Edge

(CUT TO LENGTH)

1шт.

16

300327

Vertical Cutter

(F) (UPPER RIGHT SIDE CUTTER)

1шт.

17

300328

Vertical Cutter

(F) (UPPER LEFT SIDE CUTTER)

1шт.

18

311080

Vertical Cutter

(F) (LEFT SIDE CUTTER INSERT)

1шт.

19

311079

Vertical Cutter

(F) (RIGHT SIDE CUTTER INSERT)

1шт.

20

611803

Moldboard

(F)

1шт.

21

Cutting Edge

(SUB AT131080)

1шт.

22

Cutting Edge

(SUB AT131080)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

26

4205109

Bushing

(SUB FOR AT131768)

3шт.

28

309972

Bar

(F) (WEAR)

2шт.

29

Shroud

(WEAR SHROUD) (SUB AT167874)

1шт.

30

Shroud

(WEAR SHROUD) (SUB AT167874)

1шт.

31

14H1044

Nut

7/8"

6шт.

39

T145372

Label

(NOT ILLUSTRATED)

1шт.

40

Excavator Bucket

( AT163674 NLA) (84 INCH - 5.0 CUBIC YARD) (AVAILABLE TOOTH ASSEMBLIES ON SEPARATE PAGE ) (REQUIRES 7 TEETH) (INCLUDES T145372 LABEL ) (FOR USE WITH 9 FOOT 6 INCH SHORT ARM ONLY )

1шт.

90

End Bit

(SIDE CUTTER KIT) ( AT131080 NLA)

1шт.

91

Kit

(EDGE PROTECTOR KIT) ( AT167874 NLA)

1шт.
