Запчасти John Deere 92ELC 12 - Propel Motor 0260 HYDRAULIC SYSTEM

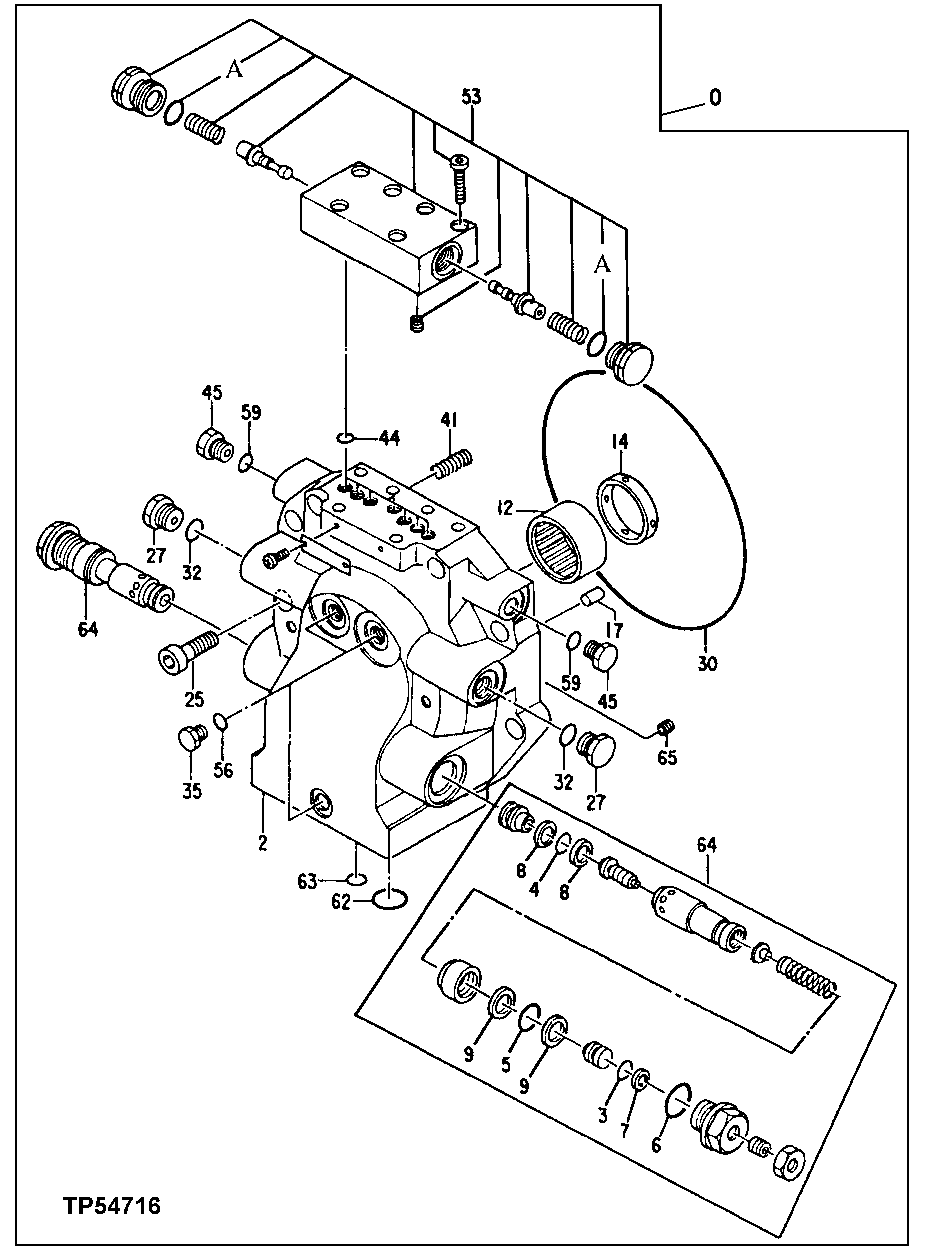

Схема запчастей John Deere 92ELC - 12 - Propel Motor 0260 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

0

4352971EX

Hydraulic Motor Reman

SUB FOR AT201722 OR AT217356, REMA N FOR AT171182 AND 4352971 Contains All Items On This Page Additional Components Listed On Following Page

1шт.

2

0419901

Cover

SUB FOR AT201562

1шт.

AT349461

Cover

REMAN

1шт.

3

CH10568

Packing

1шт.

4

4506418

O-Ring

17.800 X 2.400 mm SUB FOR U46489

1шт.

5

985099

O-Ring

20.800 X 2.400 mm SUB FOR TH101479

1шт.

6

R29936

O-Ring

29.743 X 2.946 mm

1шт.

7

4S01078

Back-Up Ring

SUB FOR 4027963

1шт.

8

4033725

Back-Up Ring

SUB FOR TH103576 OR 4S01080

2шт.

9

0310023

Back-Up Ring

SUB FOR AT128031 OR 4S01079

2шт.

12

CE15060

Needle Bearing

1шт.

14

0352211

Bushing

SUB FOR AT132248

1шт.

17

0352213

Pin Fastener

SUB FOR AT132250

1шт.

25

19M8208

Screw

M16 X 50 SUB FOR AT127285, THIS APPLICATION

8шт.

27

0251321

Plug

SUB FOR AT162254, THIS APP LICATION, SUB FOR AT201969

2шт.

30

0419806

O-Ring

SUB FOR AT201977

1шт.

32

4506418

O-Ring

17.800 X 2.400 mm SUB FOR U46489

2шт.

35

0419902

Fitting Plug

SUB FOR AT201563

3шт.

41

0376908

Spring

SUB FOR AT201971

12шт.

44

CH17167

O-Ring

9.800 X 1.900 mm

7шт.

45

0218608

Drain Plug

SUB FOR TH110243

2шт.

53

0446402

Flow Control Hyd. Valve

SUB FOR AT201564 Propel Motor Brake

1шт.

53A

AT318035

O-Ring

SUB FOR 4506424 OR TH100055

2шт.

56

M800650

Packing

3шт.

59

CH11570

O-Ring

2шт.

62

AT264348

O-Ring

SUB FOR TH102788

2шт.

63

CH12329

Packing

2шт.

64

0419904

Pressure Relief Valve

SUB FOR AT201565

2шт.

65

0419905

Orifice

SUB FOR AT201566

1шт.

Выбрано товаров: 29
