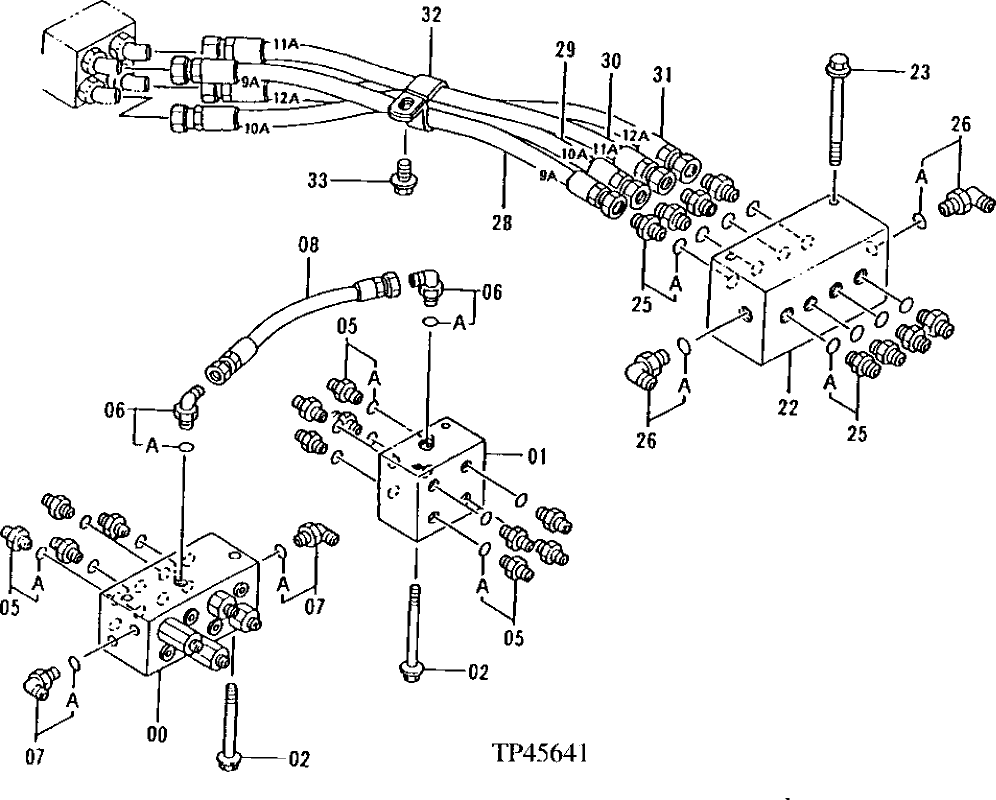

Запчасти John Deere 92ELC 202 - PILOT PIPINGS 2160 Vehicle Hydraulics

0

4335650

Hyd Actuated Control Valve

(SUB FOR AT201805)(FLOW CONTROL)

1шт.

1

4254613

Flow Control Hyd. Valve

(SUB FOR AT154218)(SHUTTLE)

1шт.

2

19M7932

Cap Screw

4шт.

12M7056

Lock Washer

(SUB FOR 12M7065)

4шт.

5

4200466

Adapter Fitting

(SUB FOR TH108320)

12шт.

5A

CH11570

O-Ring

1шт.

6

4154670

Elbow Fitting

(SUB FOR TH100951)

2шт.

6A

M800650

Packing

1шт.

7

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

2шт.

7A

CH11570

O-Ring

1шт.

8

AT202491

Hydraulic Hose

1шт.

22

4335088

Hyd Actuated Control Valve

(SUB FOR AT201801)(FLOW CONTROL)

1шт.

23

4305337

Screw With Washer

(SUB FOR AT159662)

2шт.

25

4200466

Adapter Fitting

(SUB FOR TH108320)

8шт.

25A

CH11570

O-Ring

1шт.

26

4200471

Elbow Fitting

(SUB FOR TH108399)

2шт.

26A

4506418

O-Ring

(SUB FOR U46489)

1шт.

28

AR86055

Hydraulic Hose

1шт.

29

AR86055

Hydraulic Hose

1шт.

30

AR86055

Hydraulic Hose

1шт.

31

AR86055

Hydraulic Hose

1шт.

32

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

33

19M7402

Cap Screw

1шт.

12M7066

Lock Washer

1шт.
