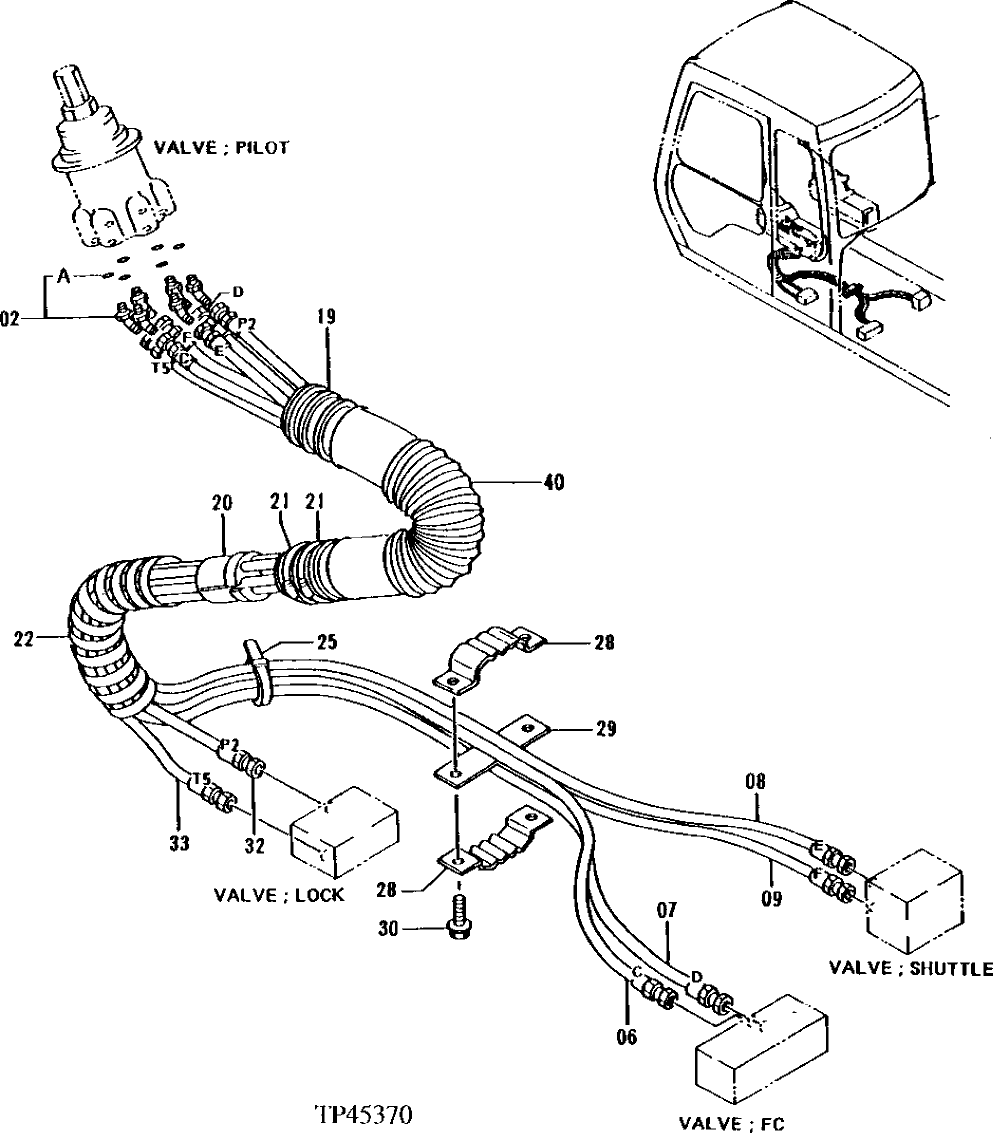

Запчасти John Deere 92ELC 200 - PILOT PIPINGS 2160 Vehicle Hydraulics

2

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

2A

M800650

Packing

1шт.

6

AT202320

Hydraulic Hose

1шт.

7

AT202309

Hydraulic Hose

1шт.

8

4287518

Hydraulic Hose

(SUB FOR AT202310)

1шт.

9

4287522

Hydraulic Hose

(SUB FOR AT202311)

1шт.

19

4333115

Hydraulic Hose

(SUB FOR AT202330)

1шт.

20

3056040

Stop

(SUB FOR AT154140)

1шт.

21

TY22472

Clamp

(SUB FOR AT145651)

2шт.

22

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

1шт.

25

H77698

Tie Band

1шт.

28

9727638

Hose Clamp

(SUB FOR AT130505)

2шт.

29

9727636

Plate

(SUB FOR AT130504)

1шт.

30

19M7550

Cap Screw

M10 X 35

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

32

4304411-S

Hydraulic Hose

(SUB FOR AT202322)

1шт.

33

4299085

Hydraulic Hose

(SUB FOR AT202319)

1шт.

40

4329965

Tube

(SUB FOR AT202328)

1шт.
