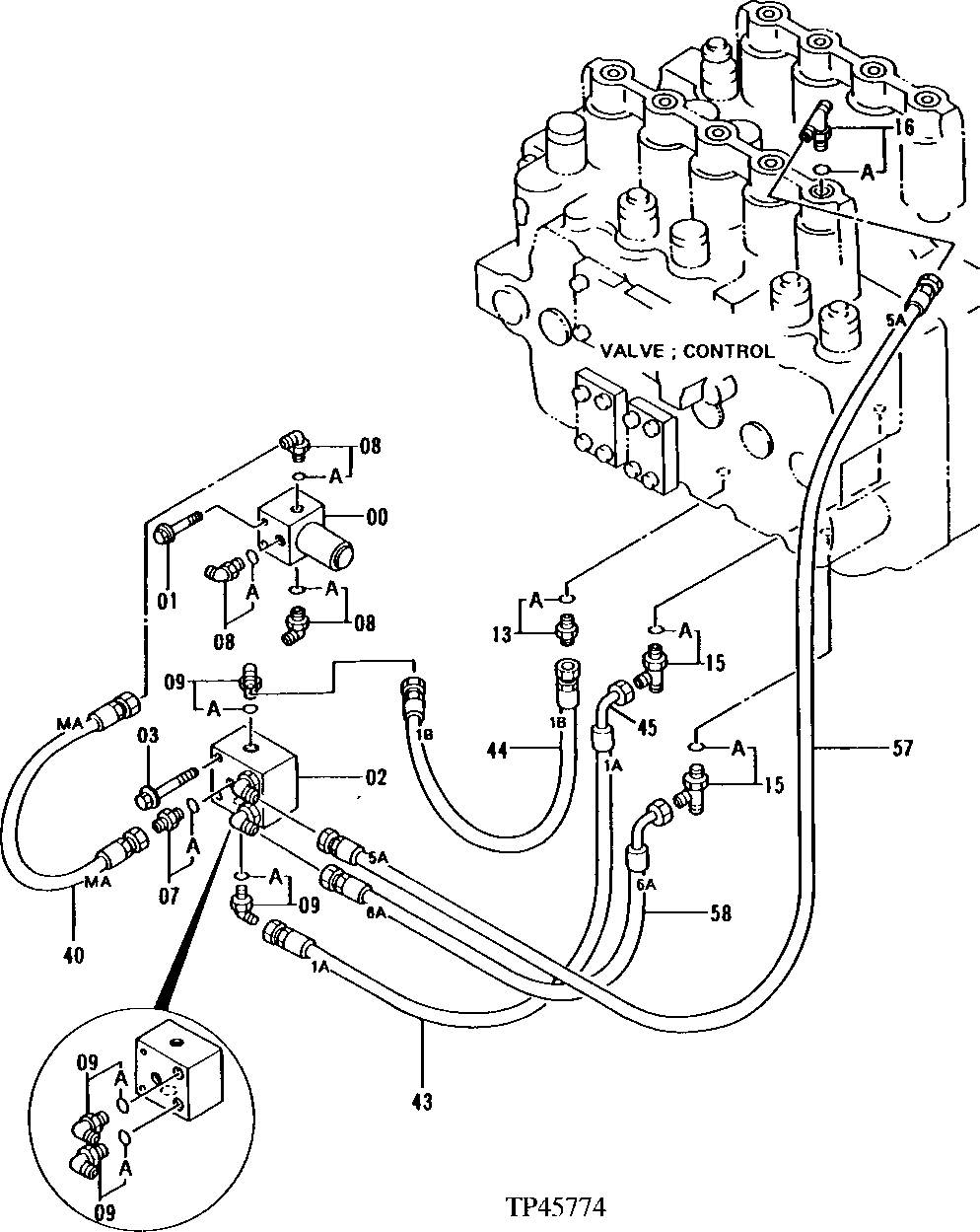

Запчасти John Deere 92ELC 190 - PILOT PIPINGS ( - 007000) 2160 Vehicle Hydraulics

0

4729022

Solenoid Valve

(SUB FOR AT202111 AND 42 61289)(GP II) (PILOT OIL)

1шт.

1

Screw With Washer

( J010860 NLA)

2шт.

19M7932

Cap Screw

2шт.

12M7065

Lock Washer

2шт.

2

4258562

Junction Block

(SUB FOR AT202110)

1шт.

3

19M7875

Cap Screw

2шт.

12M7066

Lock Washer

2шт.

7

4200465

Adapter Fitting

(SUB FOR TH108328)

1шт.

7A

M800650

Packing

1шт.

8

4154670

Elbow Fitting

(SUB FOR TH100951)

3шт.

8A

M800650

Packing

1шт.

9

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

4шт.

9A

M800650

Packing

1шт.

13

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

13A

CH11570

O-Ring

1шт.

15

4205363

Tee Fitting

(SUB FOR AT126362)

2шт.

15A

CH11570

O-Ring

1шт.

16

4208911

Tee Fitting

(SUB FOR TH110202)

1шт.

16A

CH11570

O-Ring

1шт.

40

AH97777

Hydraulic Hose

1шт.

43

AT48428

Hydraulic Hose

1шт.

44

AE25986

Hydraulic Hose

1шт.

45

AE24616

Elbow Fitting

1шт.

57

AT48717

Hydraulic Hose

(SUB FOR AT202345)

1шт.

58

AT67065

Hydraulic Hose

(SUB FOR AT202323)

1шт.
