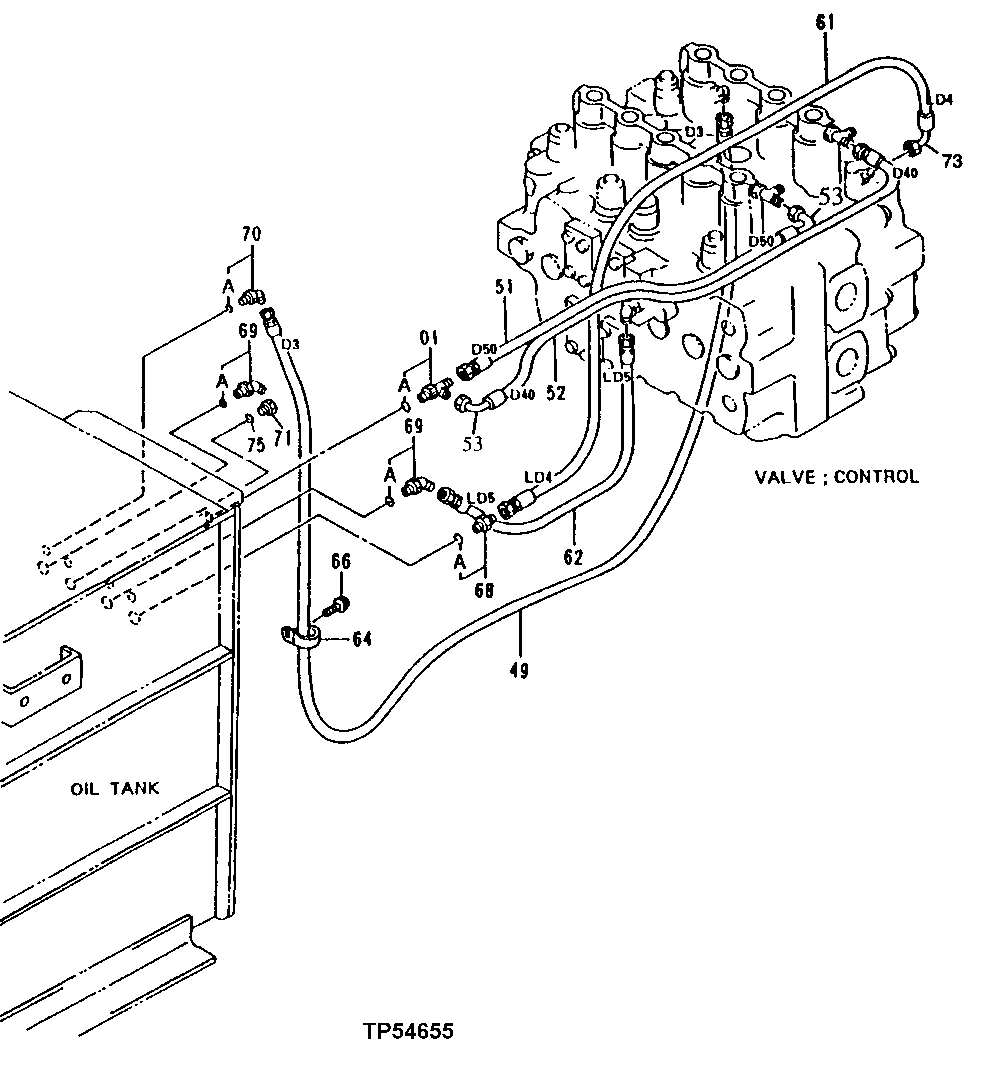

Запчасти John Deere 92ELC 185 - PILOT PIPINGS 2160 Vehicle Hydraulics

1

4203171

Tee Fitting

(SUB FOR TH110578)

1шт.

1A

M800650

Packing

1шт.

49

AT126588

Hydraulic Hose

(SUB FOR AT202237)

1шт.

51

AT48428

Hydraulic Hose

(SUB FOR 4317671 OR AT17 7259, ALONG WITH AE24616)

1шт.

52

AT48434

Hydraulic Hose

(SUB FOR 4330796 OR AT17 7260, ALONG WITH AE24616)

1шт.

53

AH89069

Elbow Fitting

2шт.

61

4447637

Hydraulic Hose

(SUB FOR 4330801 OR AT717 31 ) (ALSO ORDER AE24616)

1шт.

62

AT130683

Hydraulic Hose

1шт.

64

XCL-29

Hose Clamp

(SUB FOR TH110522 OR 4193848)

1шт.

66

19M7402

Cap Screw

1шт.

12M7066

Lock Washer

1шт.

68

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

68A

CH11570

O-Ring

1шт.

69

4190244

Elbow Fitting

(SUB FOR TH106152)

2шт.

69A

CH11570

O-Ring

1шт.

70

4193826

Elbow Fitting

(SUB FOR TH106467)

1шт.

70A

M800650

Packing

1шт.

71

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)(SUB FOR 4092534, ALONG WITH CH11570)

1шт.

73

AE24616

Elbow Fitting

1шт.

75

CH11570

O-Ring

1шт.
