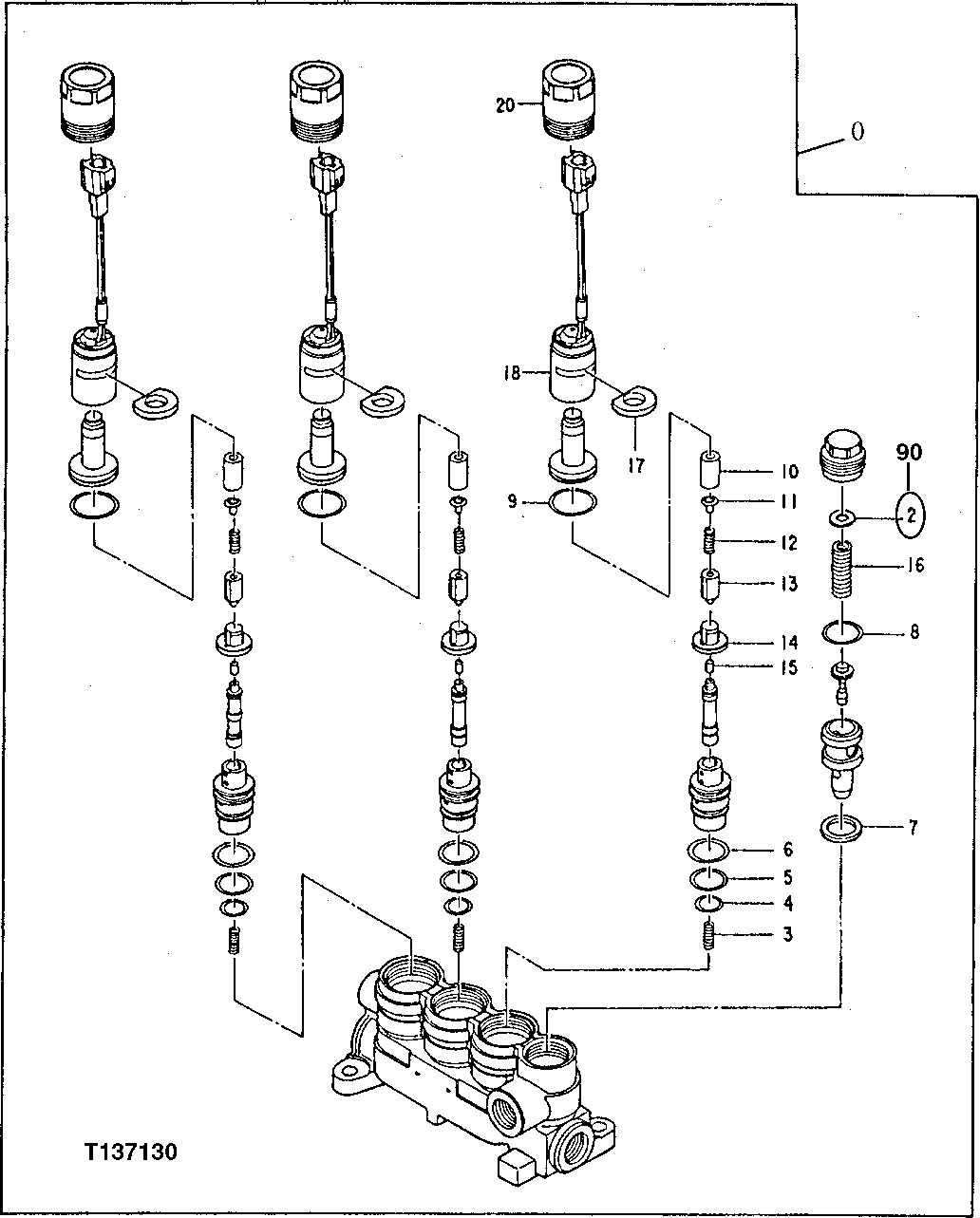

Запчасти John Deere 92ELC 179 - Solenoid Valve 2160 Vehicle Hydraulics

0

4307603

Solenoid Valve

(SUB FOR AT201758)

1шт.

2

Washer

(K) (0 5)

1шт.

Washer

(K) (0 25)

1шт.

Washer

(K) (1 0)

1шт.

3

0308711

Spring

(SUB FOR TH109259)

3шт.

4

CH11570

O-Ring

3шт.

5

985099

O-Ring

20.800 X 2.400 mm (SUB FOR TH101479)

3шт.

6

AT264333

O-Ring

(SUB FOR TH100096)

3шт.

7

4487648

Gasket

(SUB FOR TH109252 OR 0308704)

1шт.

8

4487138

O-Ring

(SUB FOR TH109253 OR 0308705)

1шт.

9

0308713

O-Ring

28.500 X 2 mm (SUB FOR TH109261)

3шт.

10

Pipe

( 0397601 NO LONGER AVAI LABLE) (SUB FOR AT201974)

3шт.

4488303

Line

3шт.

11

Valve Seat

(SUB FOR AT201981)( 0433302 NLA)

1шт.

4488306

Valve Seat

1шт.

12

4488310

Spring

(SUB FOR TH109264 OR 0308716)

3шт.

13

3096332

Plunger

(SUB FOR TH109265 OR 0308717)

3шт.

14

0397602

Stop

(SUB FOR 0308719 ) (SUB FOR AT201975)

3шт.

15

4488302

Rod

(SUB FOR TH109267)

3шт.

16

0308710

Spring

(SUB FOR TH109258)

1шт.

17

4488304

Spacer

(SUB FOR TH109269 OR 0308721)

3шт.

18

0451501

Solenoid

(SUB FOR AT201642)

3шт.

20

0308724

Screw

(SUB FOR TH109272)

3шт.

90

AT146246

Shim Kit

INCLUDES ALL (K) PARTS

1шт.
