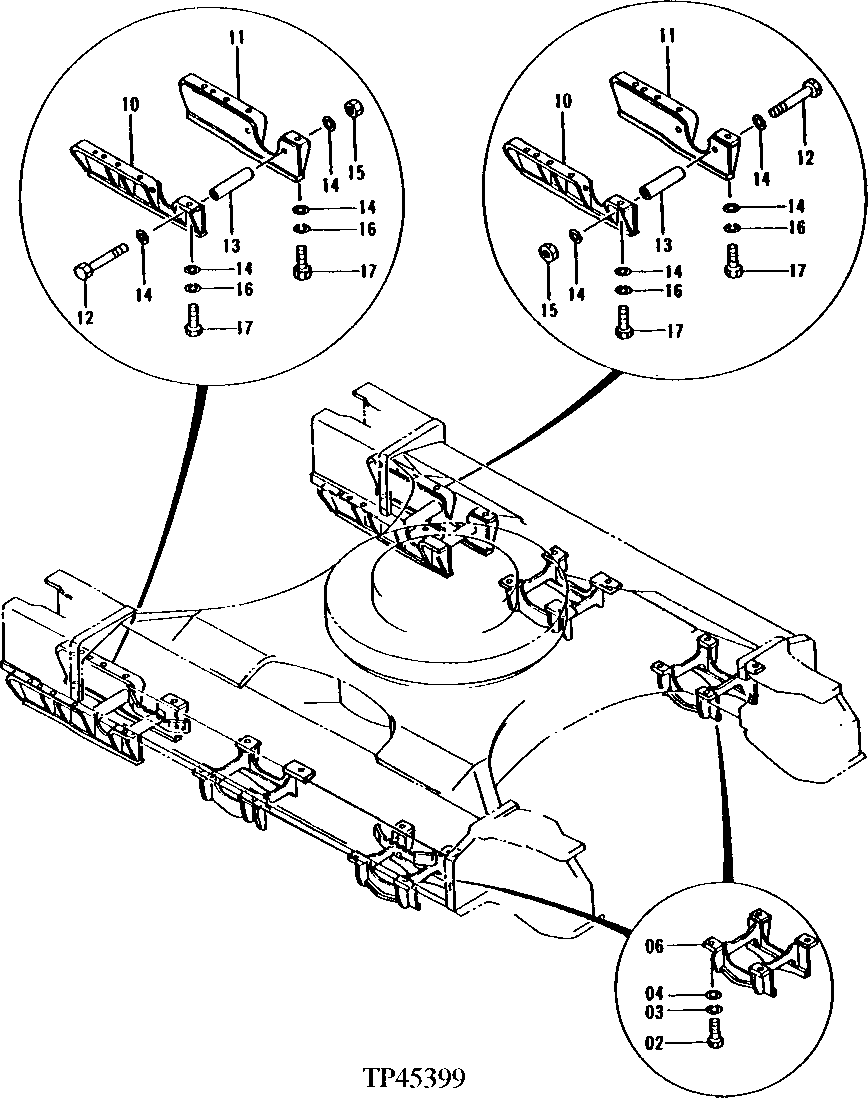

Запчасти John Deere 92ELC 8 - Track Guard (006004 - 007000) 0130 Track Systems

2

19M9179

Cap Screw

M22 X 65 (SUB FOR TH102456 OR J932265)

16шт.

3

12H245

Lock Washer

7/8"

16шт.

4

T56006

Washer

23.825 X 44.450 X 6.350 mm

16шт.

6

7028407

Guard

(SUB FOR AT201868)

4шт.

10

6014751

Guard

(SUB FOR AT202363)

2шт.

11

6014752

Guard

(SUB FOR AT202364)

2шт.

12

4343246

Bolt

(SUB FOR AT202348)

4шт.

13

4343245

Spacer

(SUB FOR AT202347)

4шт.

14

T56006

Washer

23.825 X 44.450 X 6.350 mm

28шт.

15

R114125

Nut

M22

4шт.

16

12H245

Lock Washer

7/8"

20шт.

17

19M9179

Cap Screw

M22 X 65 (SUB FOR TH102456 OR J932265)

20шт.
