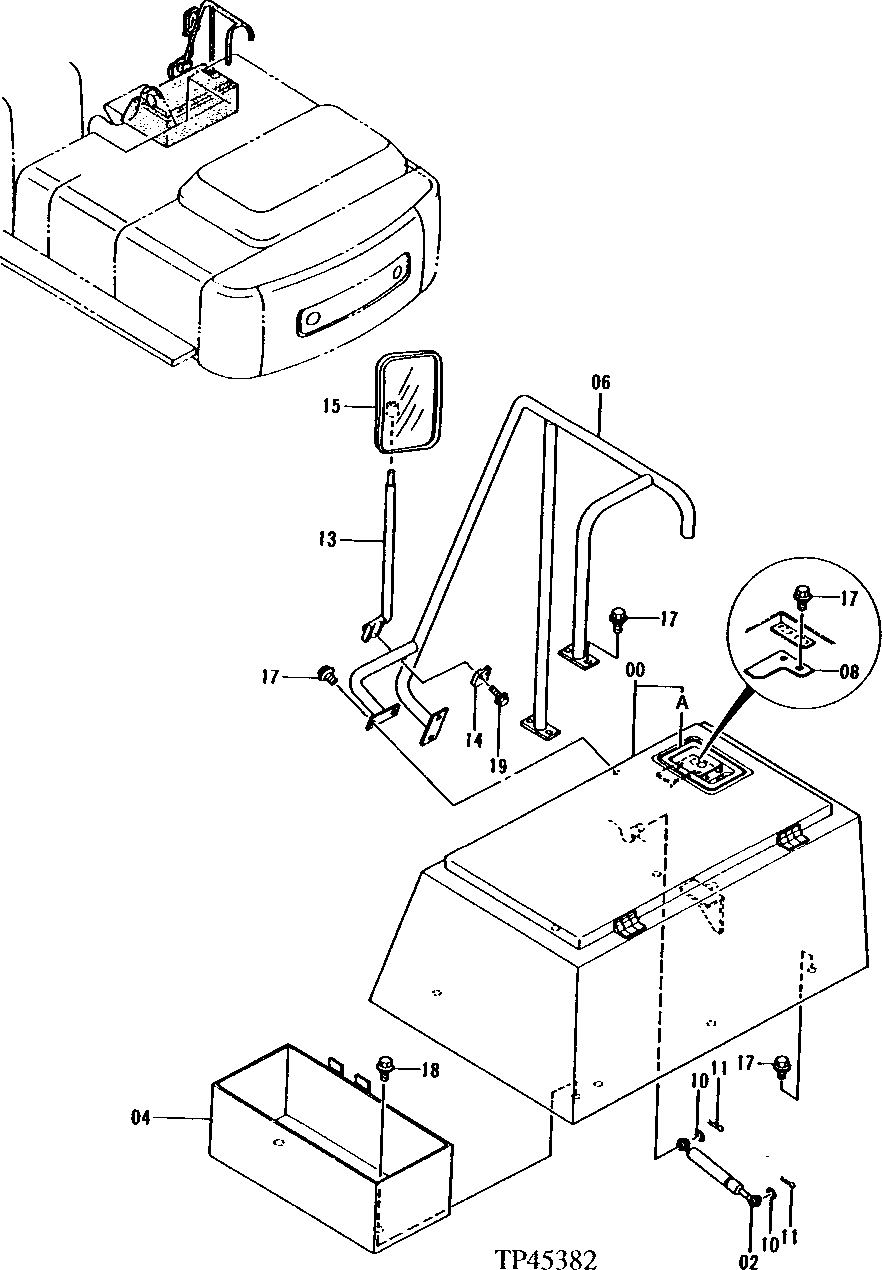

Запчасти John Deere 92ELC 159 - LUBRICATION COVER 1910 Hood Or Engine Enclosure

0

5004036

Cover

(SUB FOR AT201836)

1шт.

0A

Lock

(SUB AT214010)( AT2023 67 NO LONGER AVAILABLE)

1шт.

2

4335067

Cylinder

(SUB FOR AT201800)

1шт.

4

8054343

Cover

(SUB FOR AT201891)

1шт.

6

7029162

Handrail

(SUB FOR AT201885)

1шт.

8

AT307229

Bracket

(SUB FOR AT201950 OR 9741353)

1шт.

10

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

11

H132922

Cotter Pin

2шт.

13

4420724

Rear View Mirror

(SUB FOR 8057444 ) (ALSO ORDER 8077830)

1шт.

8077830

Stop

(SUB FOR AT187241)

1шт.

14

AT219494

Clamp

(SUB FOR AT131743)

1шт.

15

Rear View Mirror

( TH104119 NO LONGER AVAILABLE) (SU B AT185207 MIRROR AND AT187241 ARM)

1шт.

4420724

Rear View Mirror

(SUB FOR AT185207)

1шт.

17

19M8011

Cap Screw

M12 X 30

16шт.

24M7047

Washer

13 X 24 X 2.500 mm

16шт.

12H301

Lock Washer

1/2"

16шт.

18

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

2шт.

19M7403

Cap Screw

M12 X 35

2шт.

19

19M8359

Cap Screw

M8 X 45

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.
