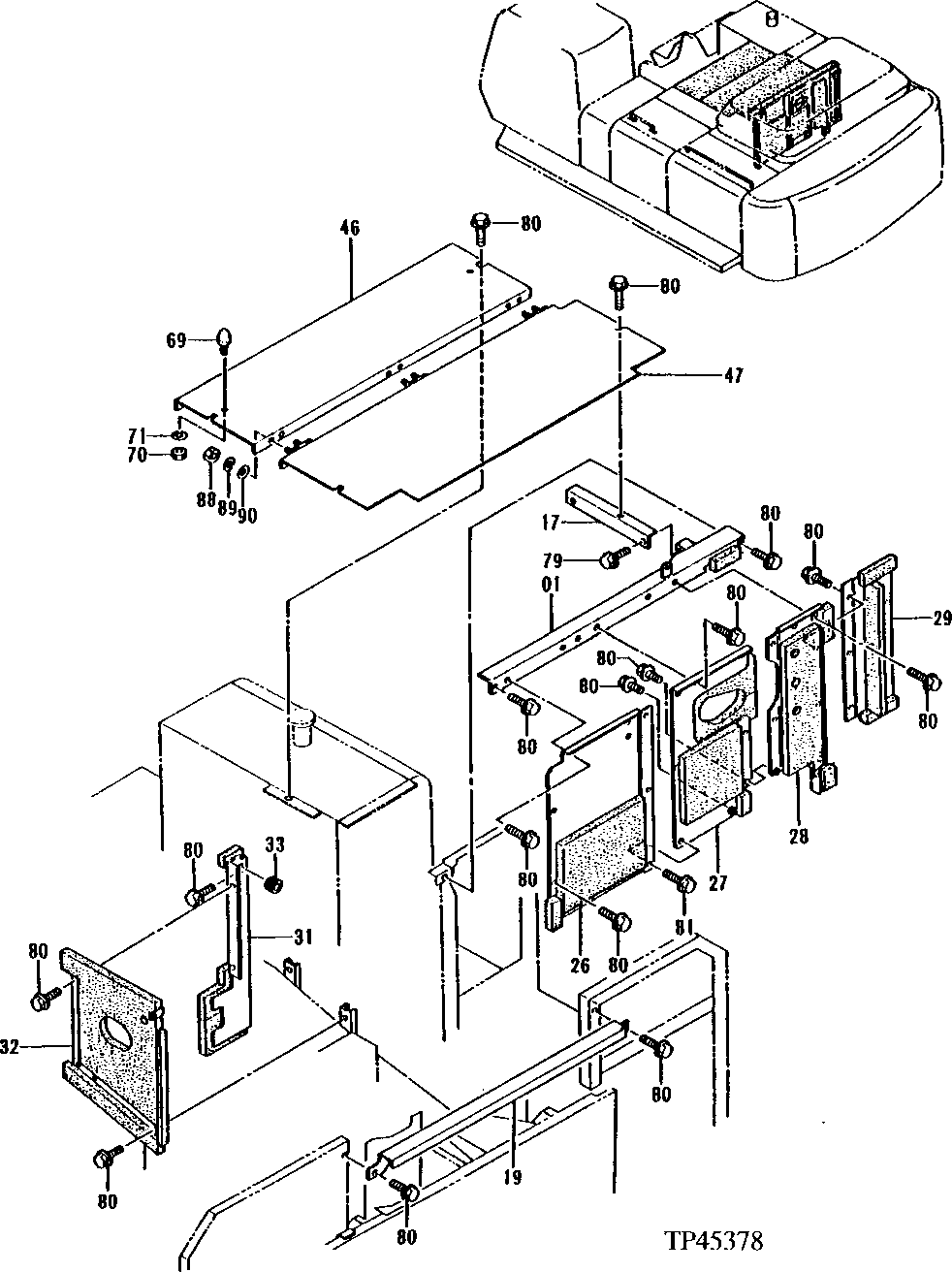

Запчасти John Deere 92ELC 157 - Cover 1910 Hood Or Engine Enclosure

1

7028787

Support

(SUB FOR AT201876)(USE WI TH AT201837 ENGINE COVER)

1шт.

7035848

Support

(SUB FOR AT185019)(USE WI TH AT185020 ENGINE COVER)

1шт.

17

9742676

Support

(SUB FOR AT201953)

1шт.

19

3070283

Support

(SUB FOR AT201710)

1шт.

26

7028673

Cover

(SUB FOR AT201870)

1шт.

27

7028781

Cover

(SUB FOR AT201873)

1шт.

7032443

Valve Cover

(SUB FOR AT178194)

1шт.

28

7028782

Cover

(SUB FOR AT201874)

1шт.

7032448

Valve Cover

(SUB FOR AT178195)

1шт.

29

8059573

Cover

(SUB FOR AT201916)

1шт.

31

7028685

Cover

(SUB FOR AT201871)

1шт.

32

7028783

Cover

(SUB FOR AT201875)

1шт.

7032433

Valve Cover

(SUB FOR AT178196)

1шт.

33

Knob

(NOT AVAILABLE FOR SERVICE)

1шт.

46

8055948

Cover

(SUB FOR AT201903)

1шт.

47

7026848

Cover

(SUB FOR AT201865)

1шт.

69

4204586

Bumper

(SUB FOR TH108668)

2шт.

70

14M7274

Nut

M10

2шт.

71

12M7066

Lock Washer

10 mm

2шт.

79

19M8011

Cap Screw

M12 X 30

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

12H301

Lock Washer

1/2"

2шт.

80

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

29шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

29шт.

19M8011

Cap Screw

M12 X 30

29шт.

81

19M7872

Cap Screw

M12 X 25

1шт.

24M7180

Washer

13 X 37 X 3 mm

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

88

14M7273

Nut

M8

6шт.

89

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

6шт.

90

24M7055

Washer

8.400 X 16 X 1.600 mm

6шт.
