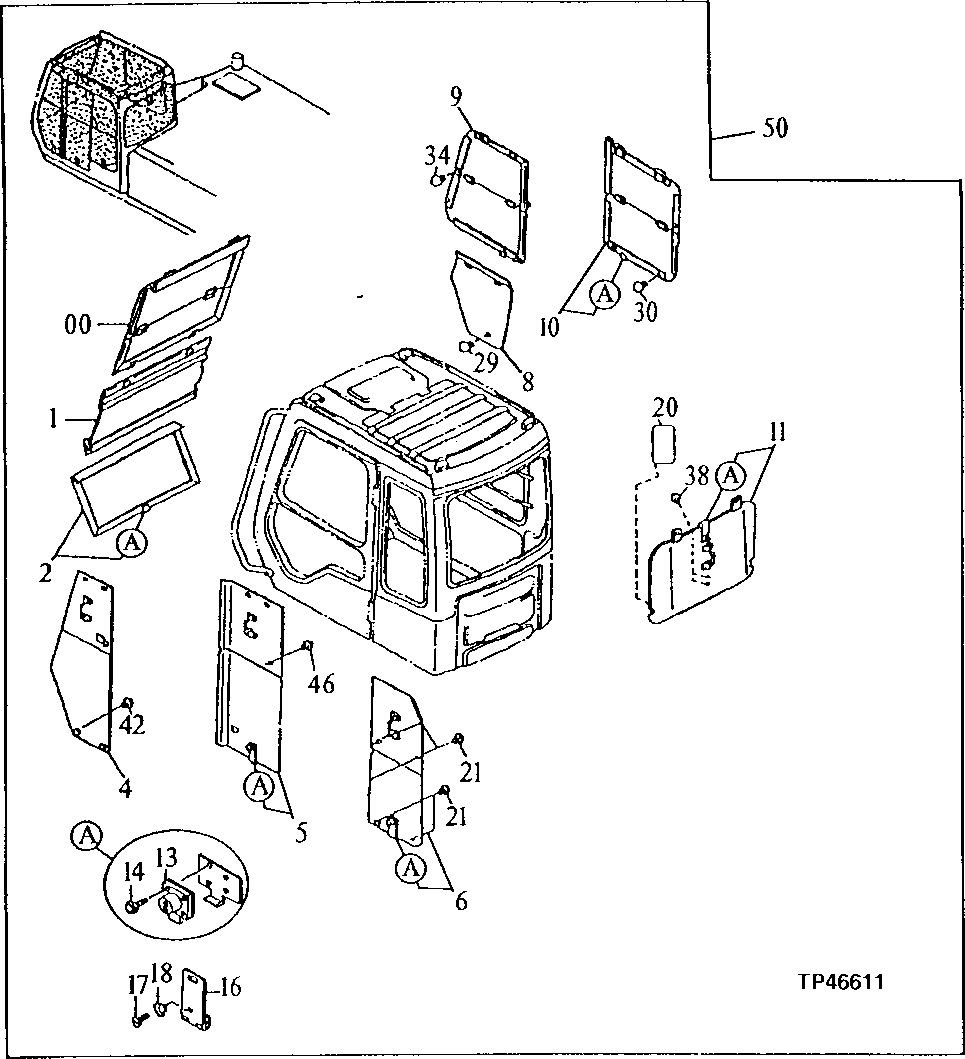

Запчасти John Deere 92ELC 153 - WINDOW GUARD 1910 Hood Or Engine Enclosure

0

AT155170

Cover

1шт.

1

AT155171

Cover

1шт.

2

AT155172

Cover

1шт.

4

AT155173

Cover

1шт.

5

AT152205

Cover

1шт.

6

AT155175

Cover

1шт.

8

AT154908

Cover

1шт.

9

AT155176

Cover

1шт.

10

AT155177

Cover

1шт.

11

AT155159

Cover

1шт.

13

4361601

Lock

(SUB FOR TH108982 ) (SUB F OR AT176636)(USE H800 KEY)

1шт.

AT194969

Key

(SUB FOR AT147803)(H800) (NOT ILLUSTRATED)

1шт.

14

21M7271

Screw

M5 X 16

4шт.

16

TH108983

Hinge

ARшт.

17

21M7249

Screw

M5 X 10

ARшт.

18

T205218

Washer

(SUB FOR TH111908, 4107762)

ARшт.

20

AT152168

Label

1шт.

21

Isolator

( AT155189 NOT AVAILABLE) (SUB T6 5321 BULK MATERIAL CUT TO LENGTH)

4шт.

29

Isolator

( AT155189 NOT AVAILABLE) (SUB T6 5321 BULK MATERIAL CUT TO LENGTH)

1шт.

30

Isolator

( AT155189 NOT AVAILABLE) (SUB T6 5321 BULK MATERIAL CUT TO LENGTH)

3шт.

34

Isolator

( AT155189 NOT AVAILABLE) (SUB T6 5321 BULK MATERIAL CUT TO LENGTH)

3шт.

38

Isolator

( AT155189 NOT AVAILABLE) (SUB T6 5321 BULK MATERIAL CUT TO LENGTH)

2шт.

42

Isolator

( AT155189 NOT AVAILABLE) (SUB T6 5321 BULK MATERIAL CUT TO LENGTH)

2шт.

46

Isolator

( AT155189 NOT AVAILABLE) (SUB T6 5321 BULK MATERIAL CUT TO LENGTH)

1шт.

50

AT159915

Kit

WHOLEGOODS (VANDAL PROTECTION)

1шт.
