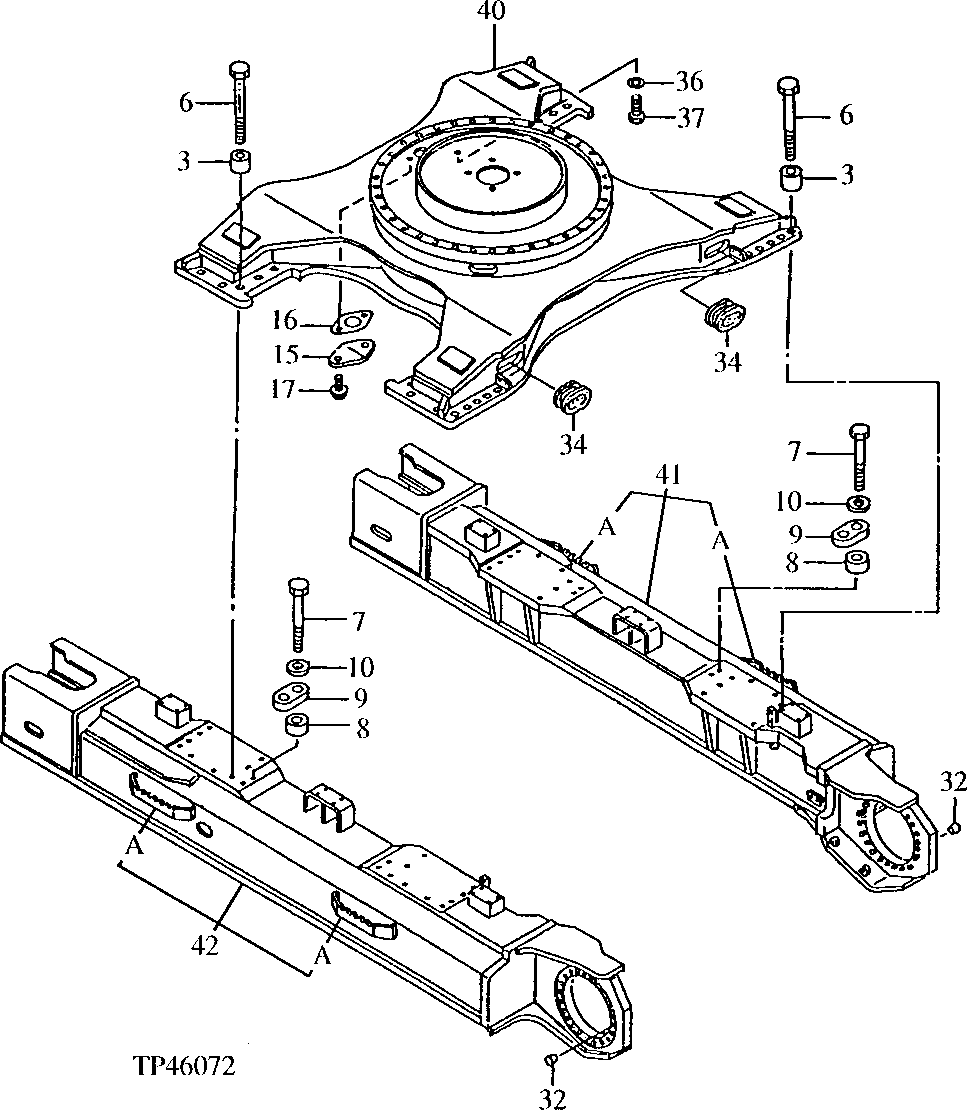

Запчасти John Deere 92ELC 6 - Track Frame 0130 Track Systems

3

4320218

Spacer

(SUB FOR AT201770)

36шт.

6

J833310

Bolt

(SUB FOR AT201552)

36шт.

7

J833305

Bolt

(SUB FOR AT201551)

8шт.

8

4269567

Spacer

(SUB FOR AT201730)

8шт.

9

4269566

Strap

(SUB FOR AT201729)

4шт.

10

4083438

Washer

(SUB FOR AT202297)

8шт.

15

4013896

Cover

(SUB FOR TH100633)

1шт.

16

4244172

Gasket

(SUB FOR AT202301)

1шт.

17

19M7938

Cap Screw

M10 X 20

2шт.

12M7066

Lock Washer

10 mm

2шт.

32

99M7010

Plug

(SUB FOR TH109402)

4шт.

34

4268503

Grommet

(SUB FOR AT201726)

2шт.

36

24M7053

Washer

17 X 30 X 3 mm

1шт.

37

19M7394

Cap Screw

M16 X 25 (SUB FOR AT202272 AND J901625)

1шт.

40

Frame

( AT201833 NOT AVAILABLE FOR SERVICE)

1шт.

41

AT201835

Frame

(CONVENIENCE ASSEMBLY)

1шт.

41A

9736106

Step

(SUB FOR AT171189)

2шт.

42

5003933

Frame

(SUB FOR AT201832)

1шт.

42A

9736106

Step

(SUB FOR AT171189)

2шт.
