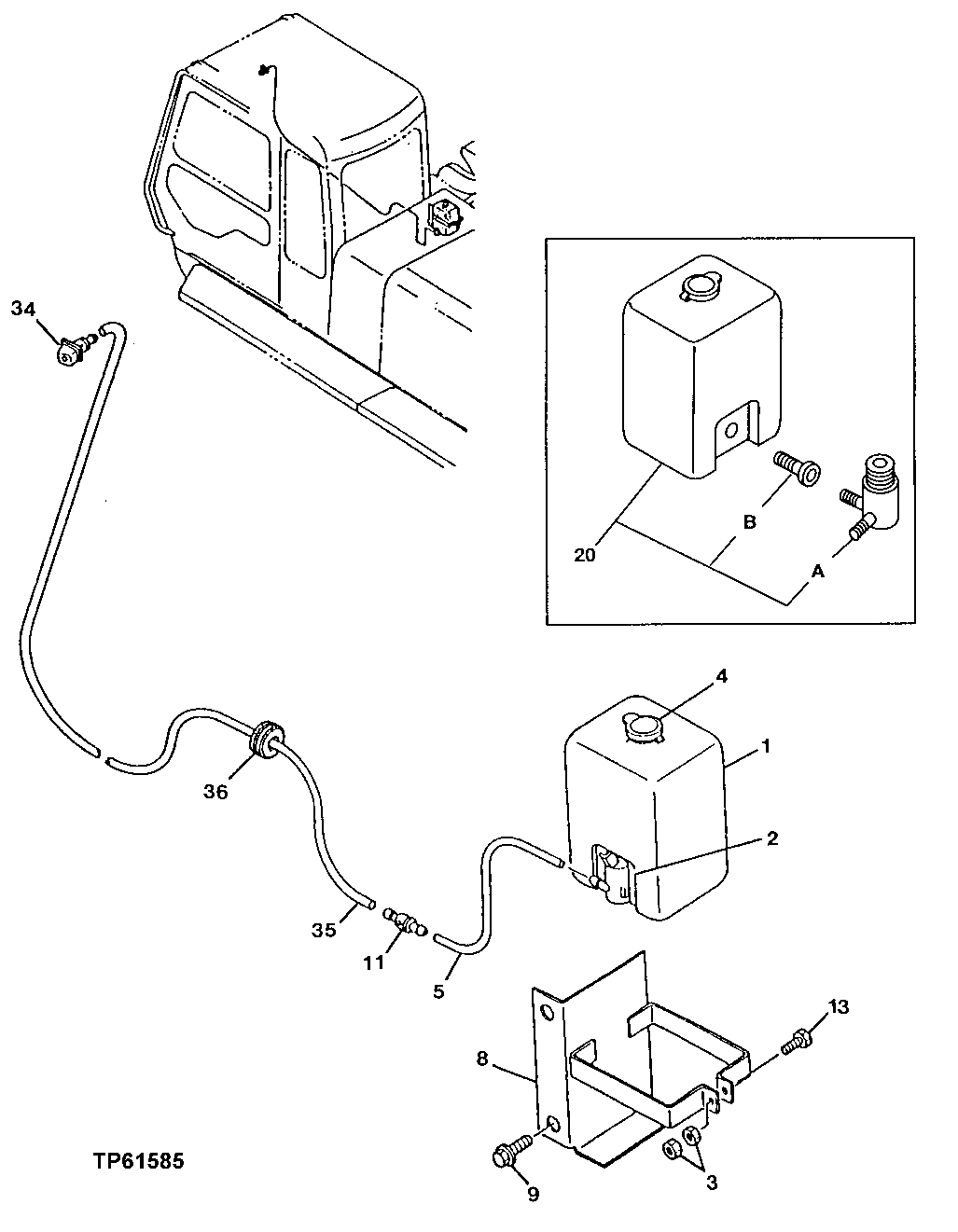

Запчасти John Deere 92ELC 138 - Window Washer 1810 Operator Enclosure

1

T147618

Tank

1шт.

2

AT106365

Pump

1шт.

3

14M7272

Nut

M6

2шт.

4

AT106413

Cap

1шт.

5

4334203

Hose

(SUB FOR AT202232)

1шт.

8

7025226

Bracket

(SUB FOR AT201860)

1шт.

9

19M8011

Cap Screw

M12 X 30

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

12H301

Lock Washer

1/2"

2шт.

11

4273335

Check Valve

(SUB FOR AT201739)

1шт.

13

19M7874

Cap Screw

M6 X 30

1шт.

20

4325519

Tank

(SUB FOR AT131698)(SUB T1476 18, AT106365, AND AT106413)

1шт.

20A

4326095

Pump

(SUB FOR AT106365)

1шт.

20B

4386343

Packing

(SUB FOR AT186650)

1шт.

34

4282793

Nozzle

(SUB FOR AT154358)

1шт.

35

Bulk Hose

(SUB FOR R54445 AND R104595 )( R120653 NLA) (MF TY25139)

ARшт.

36

4287903

Grommet

(SUB FOR AT154413)

1шт.
