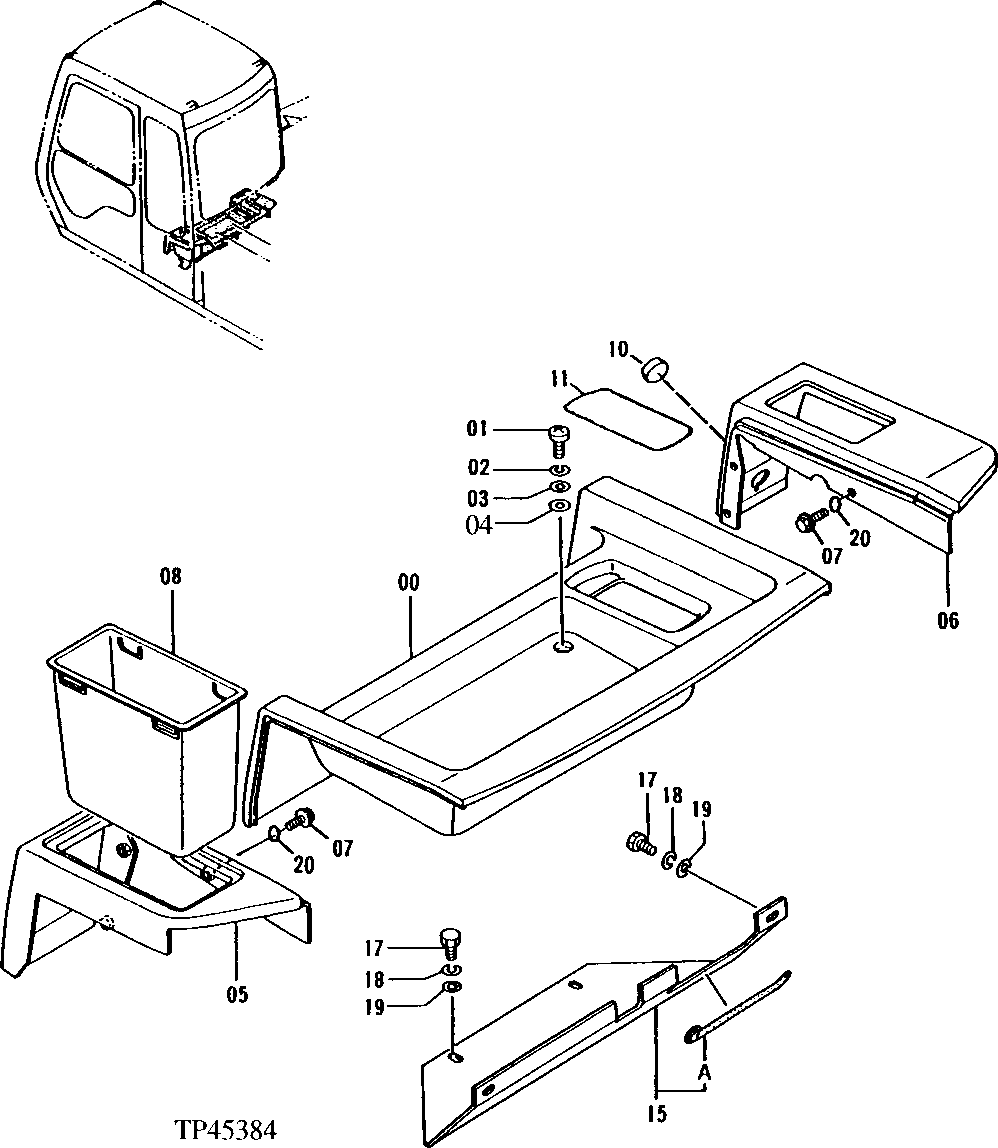

Запчасти John Deere 92ELC 133 - Cab Rear Cover 1810 Operator Enclosure

0

6011272

Cover

(SUB FOR AT154453)

1шт.

1

21M7397

Screw

M8 X 25

4шт.

2

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

3

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

4

Washer

( AT200509 NOT AVAILABLE FOR SERVICE)

4шт.

5

6011274

Cover

(SUB FOR AT154454)

1шт.

6

6011275

Cover

(SUB FOR AT154455)

1шт.

7

19M7881

Screw

M8 X 20

6шт.

8

3052412

Tray

(SUB FOR AT154124)

1шт.

10

Plug

( AT200402 NOT AVAILABLE FOR SERVICE)

1шт.

11

4285009

Cover

(SUB FOR AT155728)(FUSE PANEL)

1шт.

15

8058417

Cover

(SUB FOR AT202370)

1шт.

15A

4337249

Isolator

(SUB FOR AT167005)

1шт.

17

19M7881

Screw

M8 X 20

4шт.

18

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

4шт.

19

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

20

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

6шт.
