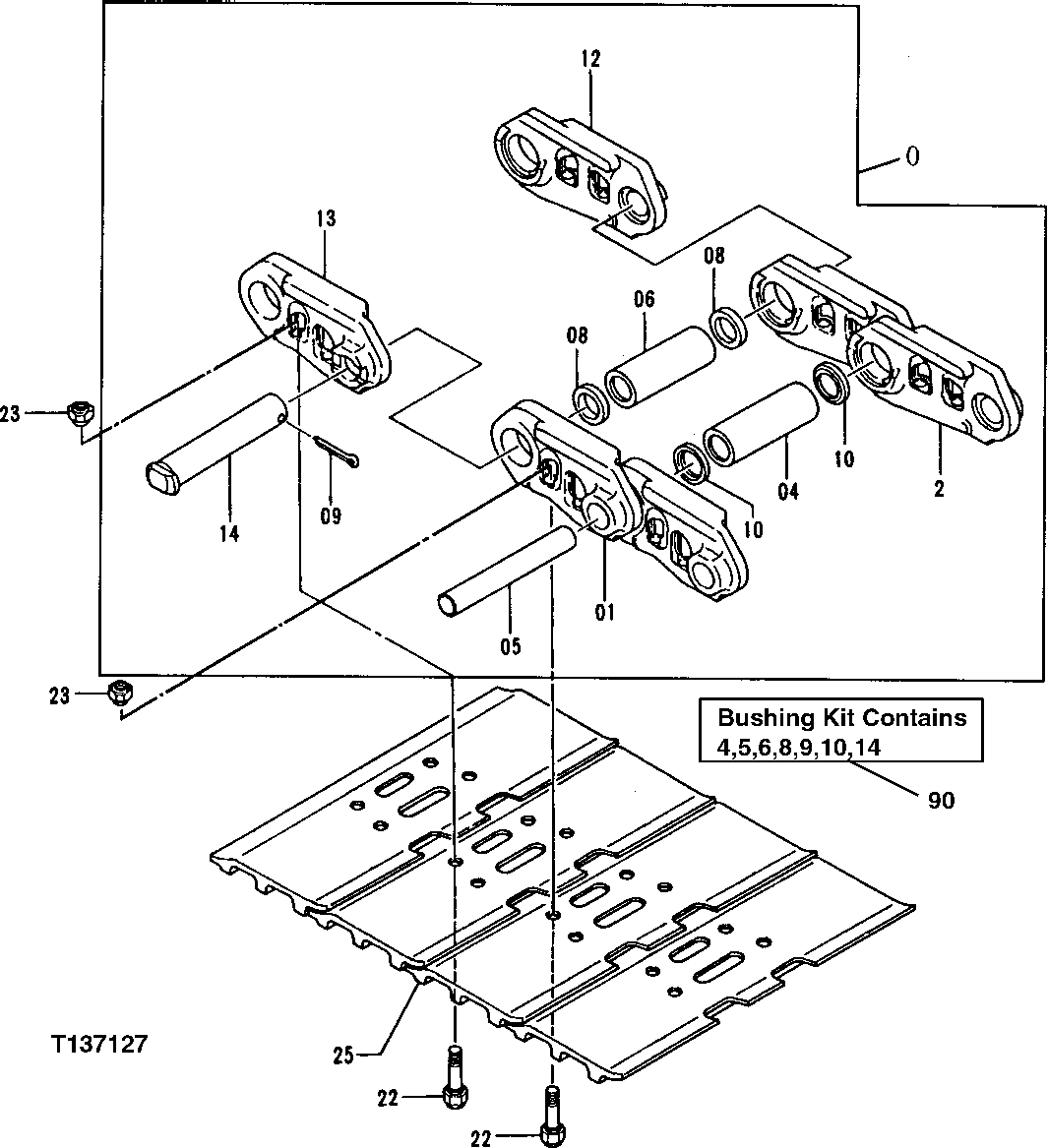

0
9129617
Track Chain W/O Shoes
(SUB FOR AT201936, 4387659)
1шт.
1
4328028
Track Link
(SUB FOR AT201778)(LEFT)
52шт.
2
4328027
Track Link
(SUB FOR AT201777)(RIGHT)
52шт.
4
4328031
Bushing
(K) (SUB FOR AT201781)
52шт.
5
AT132153
Pin
(K) 47.570 X 254 mm
52шт.
6
AT132505
Bushing
(K) (MASTER)
1шт.
8
4328032
Seal
(K) (SUB FOR AT201782)
2шт.
9
11H259
Cotter Pin
(K) 3/8" X 3-1/2"
1шт.
10
AT132527
Seal
(K)
104шт.
12
4342893
Master Track LINK-RH
(SUB FOR AT201779)(RIGHT)
1шт.
13
4342894
Master Track LINK-LH
(SUB FOR AT201780)(LEFT)
1шт.
14
4342895
Master Track Pin
(K) (SUB FOR AT202240)(MASTER)
1шт.
22
4328034
Bolt
(SUB FOR AT201783)
212шт.
23
4328035
Nut
(SUB FOR AT201784)
212шт.
25
4409428
Open Center 3 Bar Shoe
(SUB FOR AT202344)(900 MM)
53шт.
4403212
Triple Bar Shoe
(SUB FOR AT202343)(750 MM) (USE IF AVAILABLE)
53шт.
4403212
Triple Bar Shoe
(SUB FOR AT202343 ) (SU B FOR AT250131)(750 MM)
53шт.
90
Bushing Kit
( AT170096 NLA) INCLUDES ALL (K) PARTS (BUSHING)
1шт.
