Запчасти John Deere 92ELC 129 - Cab 1810 Operator Enclosure

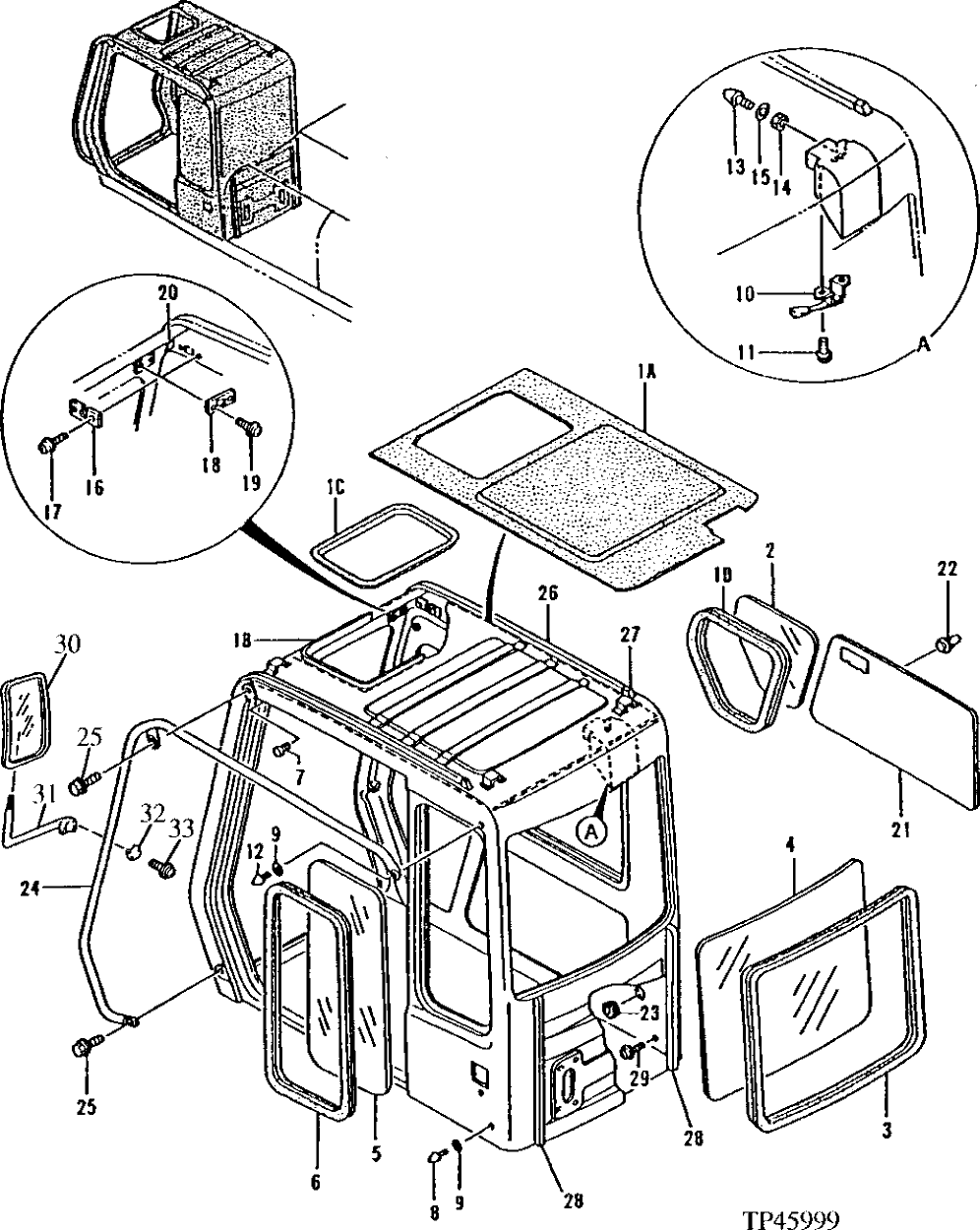

Схема запчастей John Deere 92ELC - 129 - Cab 1810 Operator Enclosure

Артикул

Название

Примечание

Количество

0

4282696

Cab

(SUB FOR AT154356)(NOT ILLUSTRATED) (ALSO OR DER AT202356 HANDRAIL AND AT204918 STOPPER) ( CONTAINS ALL ITEMS ON THIS PAGE, FOR ADDITION AL COMPONENTS SEE PREVIOUS AND FOLLOWING PAGE S)

1шт.

1A

4320143

Pad

(SUB FOR AT162722)

1шт.

1B

4295420

Holder

(SUB FOR AT156963)

1шт.

1C

4341218

Isolator

(SUB FOR AT156964)

1шт.

1D

4289528

Isolator

(SUB FOR AT154438)

1шт.

2

AT154437

Windowpane

1шт.

3

4289532

Isolator

(SUB FOR AT154442)

1шт.

4

4289531R

Windowpane

(SUB FOR AT154441 OR 4289531)

1шт.

5

AT154439

Windowpane

1шт.

6

4289530

Isolator

(SUB FOR AT154440)

1шт.

7

4172321

Bumper

(SUB FOR TH108666)

1шт.

8

4304827

Bumper

(SUB FOR AT156970)

2шт.

9

4204587

Washer

11 X 35 X 4.500 mm (SUB FOR TH108669)

2шт.

10

4320144

Lock

(SUB FOR AT156971)

1шт.

11

19M7932

Cap Screw

M8 X 16

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

12

4345738

Stop

(SUB FOR AT204918)

1шт.

13

4204586

Bumper

(SUB FOR TH108668)

1шт.

14

14M7274

Nut

M10

1шт.

15

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

16

4204599

Shim

(SUB FOR TH108682)

1шт.

17

Screw

(SUB FOR AT156973)( J460410 NLA)

2шт.

21M7396

Screw

M4 X 10

2шт.

24M7117

Washer

4.300 X 9 X 0.800 mm

2шт.

12H315

Lock Washer

0.164"

2шт.

18

4204600

Bracket

(SUB FOR TH108683)

1шт.

19

Screw

(SUB FOR AT156974)( J460310 NLA)

2шт.

21M7394

Screw

M3 X 10

1шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

1шт.

12H233

Lock Washer

1/8"

1шт.

20

4295422

Clip

(SUB FOR AT156975)

1шт.

21

4372271

Pad

(SUB FOR 4320146 ) (SUB FOR AT200579)

1шт.

22

4204607

Clip

(SUB FOR TH108690)

10шт.

23

4146559

Grommet

(SUB FOR TH108788)

1шт.

24

4345737

Handrail

(SUB FOR AT202356)

1шт.

25

19M7550

Cap Screw

M10 X 35

2шт.

24H1305

Washer

13/32" X 13/16" X 0.065"

2шт.

12M7066

Lock Washer

10 mm

2шт.

26

4295425

Molding

(SUB FOR AT156979)

2шт.

27

Cap

(NOT AVAILABLE FOR SERVICE)

2шт.

28

Molding

(NOT REQUIRED)

2шт.

29

19M8425

Cap Screw

M6 X 16

1шт.

24H1287

Washer

9/32" X 5/8" X 0.065"

1шт.

12M7006

Lock Washer

6 mm

1шт.

30

Rear View Mirror

( TH104119 NO LONGER AVAILABLE) (SU B AT185207 MIRROR AND AT187248 ARM)

1шт.

4420724

Rear View Mirror

(SUB FOR AT185207)

1шт.

31

4420724

Rear View Mirror

(SUB FOR 8057443 ) (ALSO ORDER 8077892)

1шт.

8077892

Stop

(SUB FOR AT187248)

1шт.

32

AT219494

Clamp

(SUB FOR AT131743)

1шт.

33

19M8359

Cap Screw

M8 X 45

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.
