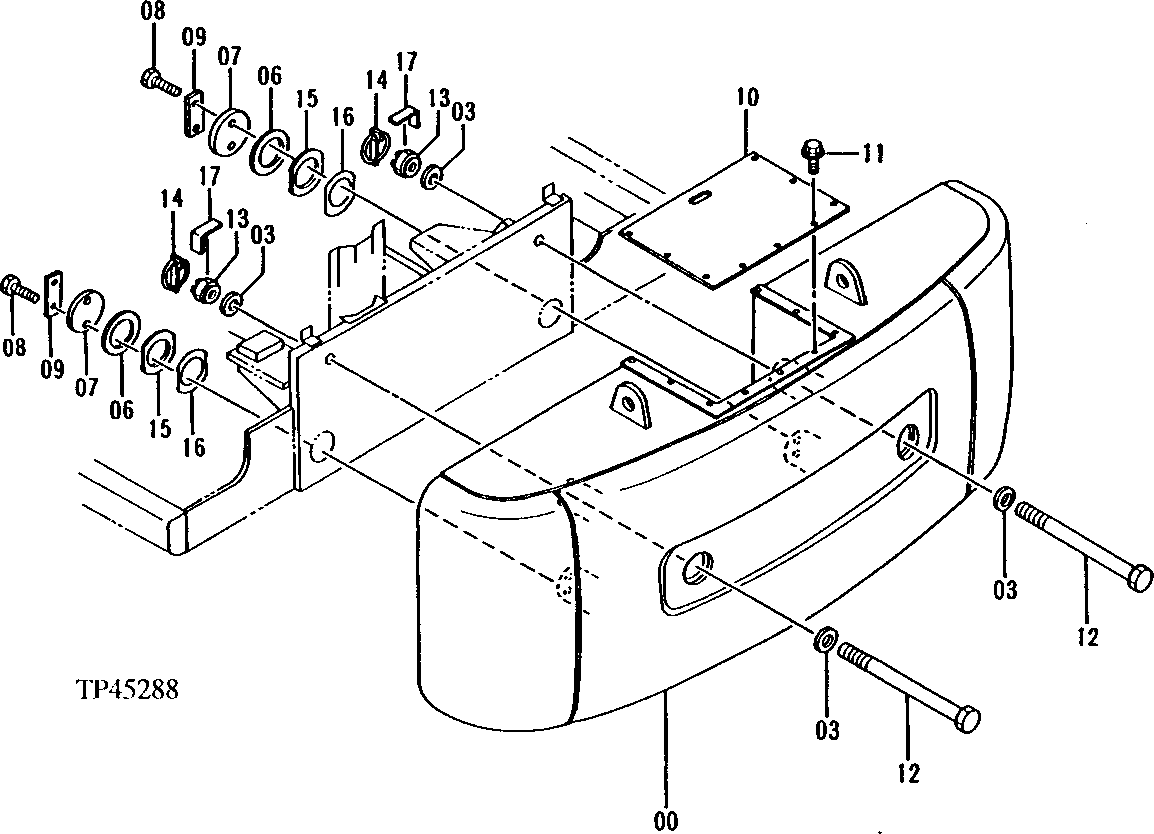

Запчасти John Deere 92ELC 121 - Counterweight 1740 Frame Installation

0

Counterweight

( AT201840 NO LONGER AVAILABLE FOR SERVICE)

1шт.

3

4103743

Bushing

46 X 70 X 10 mm (SUB FOR AT131690)

4шт.

6

4270268

Washer

(SUB FOR AT202395)

2шт.

7

4270269

Spacer

(SUB FOR AT201731)

2шт.

8

J912455

Bolt

M24 X 55 (SUB FOR AT131548)

4шт.

9

4070952

Strap

(SUB FOR AT131678)

2шт.

10

4338256

Cover

(SUB FOR AT201813)

1шт.

11

19M7932

Cap Screw

M8 X 16

9шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

9шт.

12

4341856

Cap Screw

(SUB FOR AT202396)

2шт.

13

4246150

Nut

M45 (SUB FOR AT132682)

2шт.

14

9701925

Quick Lock Pin

(SUB FOR AT132681)

2шт.

15

4207762

Washer

123 X 160 X 1 mm (SUB FOR AT131842)

4шт.

16

4207763

Shim

(SUB FOR AT131843)

2шт.

17

4345741

Shim

(SUB FOR AT202397)

2шт.
