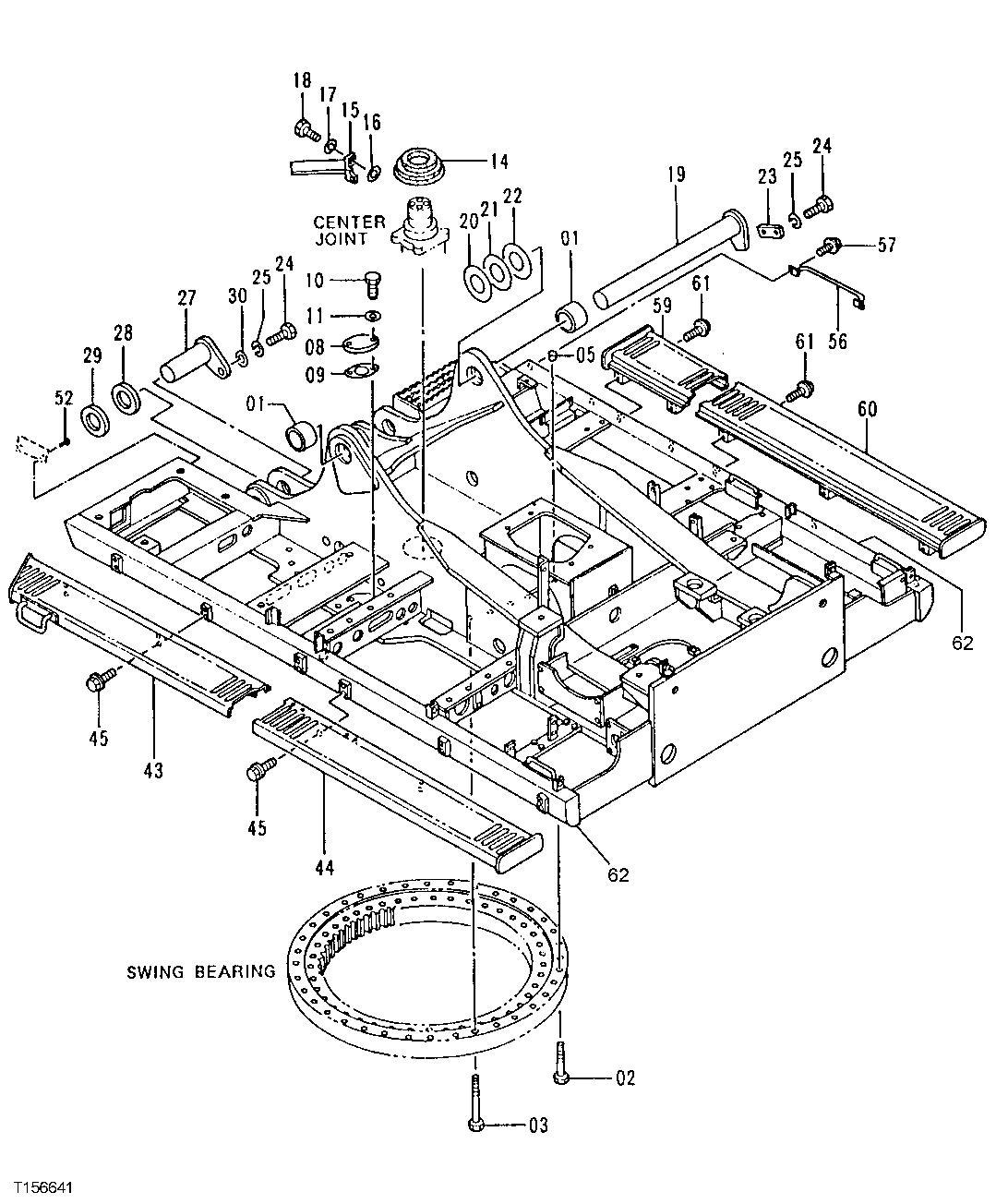

Запчасти John Deere 92ELC 116 - Main Frame 1740 Frame Installation

1

4216361

Bushing

120 X 140 X 90 mm (SUB FOR A T131871 ) (SUB FOR AT131871)

2шт.

2

4223579

Bolt

M27 X 155 (SUB FOR AT131916)

32шт.

3

J932716

Bolt

(SUB FOR AT131915 OR 422 3578, ALONG WITH 4626326)

4шт.

4626326

Spacer

4шт.

5

425175

Plug

(SUB FOR AT132013)

7шт.

8

4070948

Cover

(SUB FOR AT131676)

1шт.

9

4602624

Gasket

(SUB FOR AT131677 AND 4070949)

1шт.

10

19M3142

Cap Screw

M10 X 18

2шт.

11

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

14

4205476

Cover

(SUB FOR AT131790)

1шт.

15

8056744

Stop

(SUB FOR AT202369)

1шт.

16

4114404

Washer

15 X 36 X 4.500 mm (SUB FOR AT130666)

2шт.

17

12H317

Lock Washer

9/16"

2шт.

18

19M6332

Cap Screw

M14 X 35

2шт.

19

AT132064

Pin Fastener

1шт.

20

4207845

Washer

122 X 235 X 3.200 mm (SUB FOR AT131850)

1шт.

21

4173485

Washer

122 X 235 X 2.300 mm (SUB FOR AT131718)

1шт.

22

Shim

ORDER 4173485 AND 4207845, 4191280 NLA

2шт.

4173485

Shim

122 X 235 X 2.300 mm 3.2mm

1шт.

4207845

Shim

122 X 235 X 3.200 mm 2.3mm

1шт.

23

4335757

Plate

(SUB FOR AT202337)

1шт.

24

19M7950

Cap Screw

M20 X 45

4шт.

25

12M7070

Lock Washer

20 mm

4шт.

27

AT132074

Pin Fastener

2шт.

28

4207890

Spacer

115 X 200 X 22 mm (SUB FOR AT131851)

2шт.

29

4143607

Washer

115 X 220 X 1.200 mm (SUB FOR TH103208)

4шт.

30

4040826

Bushing

21.200 X 60 X 10 mm (SUB FOR AT131671)

2шт.

43

6021817

Step

(ALSO FURNISH 6021930 ALONG WITH (12) 24H1748) (SUB FOR 6014222, AT202360)

1шт.

44

6021930

Step

1шт.

45

19M7872

Cap Screw

M12 X 25

10шт.

24M7047

Washer

13 X 24 X 2.500 mm

10шт.

12H301

Lock Washer

1/2"

10шт.

46

24H1748

Washer

1/2" X 1-1/4" X 0.105" (NOT ILLUSTRATED)

12шт.

56

9743574

Handrail

(SUB FOR AT202383)

1шт.

57

19M8011

Cap Screw

M12 X 30

2шт.

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

59

7045137

Step

(SUB FOR AT202368, 7029592)

1шт.

60

6022193

Step

(SUB FOR 6017840, AT202365)

1шт.

61

19M7872

Cap Screw

M12 X 25

10шт.

12H301

Lock Washer

1/2"

10шт.

24M7047

Washer

13 X 24 X 2.500 mm

10шт.

62

4455818

Frame

1шт.
