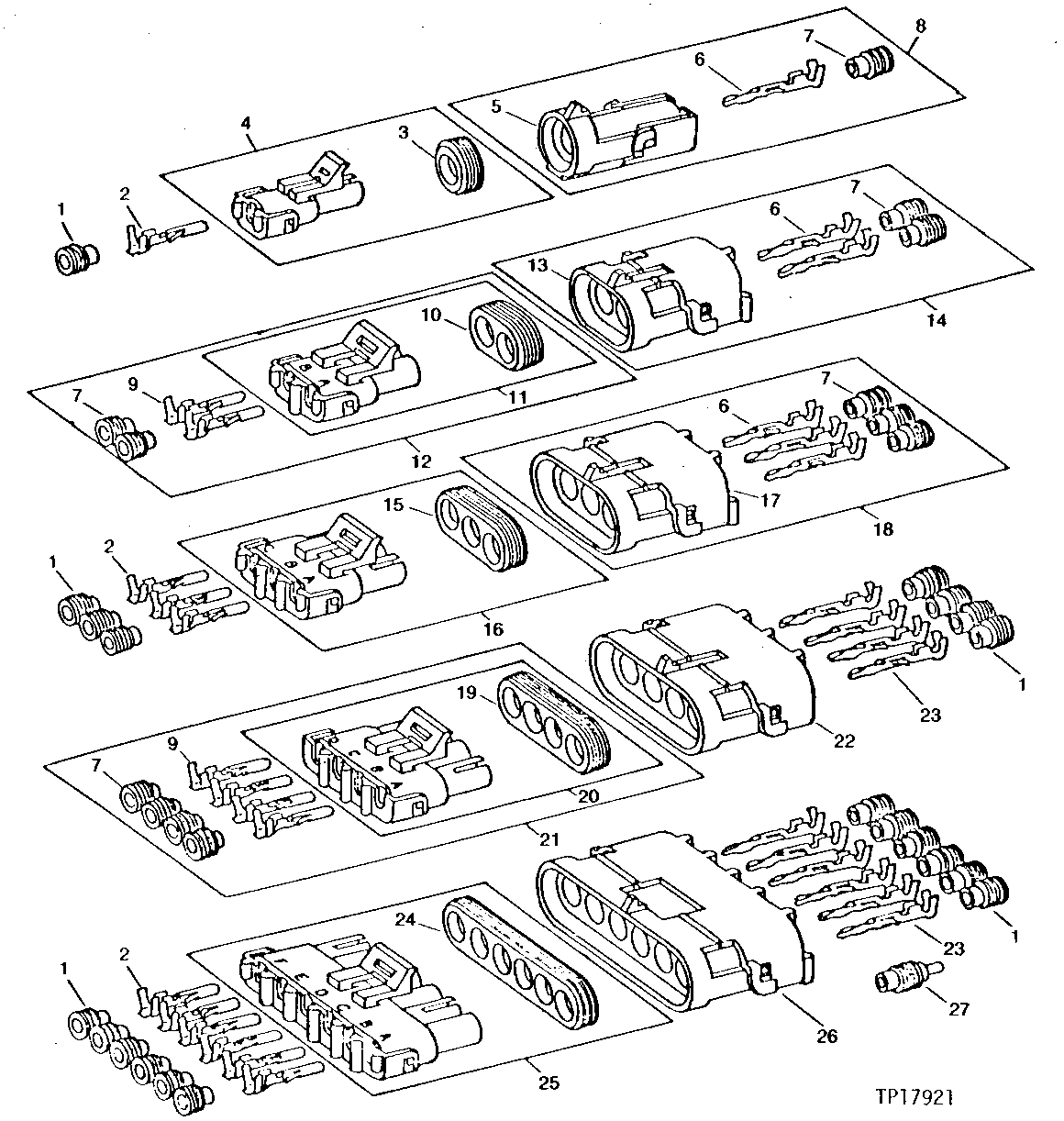

Запчасти John Deere 92ELC 113 - Weatherpack Terminals and Connectors 1674 Wiring Harness And Switches

1

R78063

Elec. Connector Seal

(PKG OF 40) (16 GA WIRE) (GRAY)

1шт.

R78059

Electrical Connector Assy

(PKG OF 40) (18 OR 20 GA WIRE) (GREEN)

1шт.

R78062

Elec. Connector Seal

(PKG OF 40) (14 GA WIRE) (BLUE)

1шт.

2

R78057

Elec. Connector Terminal

(PKG OF 40) (18 OR 20 GA WIRE) (NO 19)

1шт.

R78060

Elec. Connector Terminal

(PKG OF 40) (14 OR 16 GA WIRE) (NO 15)

1шт.

3

R78047

Seal

(PKG OF 5)

1шт.

4

RE12362

Electrical Connector Assy

(PKG OF 3)

1шт.

5

R78052

Electrical Connector Assy

(PKG OF 3)

1шт.

6

R78061

Elec. Connector Terminal

(PKG OF 40) (14 OR 16 GA WIRE) (NO 15)

1шт.

7

R78063

Elec. Connector Seal

(PKG OF 40) (16 GA WIRE) (GRAY)

1шт.

8

RE12334

Electrical Connector Assy

1шт.

9

R78060

Elec. Connector Terminal

(PKG OF 40) (14 OR 16 GA WIRE) (NO 15)

1шт.

10

R78048

Elec. Connector Accessory

(PKG OF 5)

1шт.

11

RE12363

Elec. Connector Terminal

(PKG OF 3)

1шт.

12

RE12331

Electrical Connector Assy

1шт.

13

R78053

Electrical Connector Assy

(PKG OF 3)

1шт.

14

RE12330

Electrical Connector Assy

1шт.

15

R78049

Seal

(PKG OF 5)

1шт.

16

RE12364

Electrical Connector Assy

(PKG OF 3)

1шт.

17

R78054

Electrical Connector Assy

(PKG OF 3)

1шт.

18

RE12332

Electrical Connector Assy

1шт.

19

R78050

Seal

(PKG OF 5)

1шт.

20

RE12365

Electrical Connector Assy

(PKG OF 2)

1шт.

21

RE12333

Electrical Connector Assy

1шт.

22

R78055

Electrical Connector Assy

(PKG OF 2)

1шт.

23

R78061

Elec. Connector Terminal

(PKG OF 40) (14 OR 16 GA WIRE) (NO 15)

1шт.

R78058

Electrical Connector Assy

(PKG OF 40) (18 OR 20 GA WIRE) (NO 19)

1шт.

24

R78051

Seal

(PKG OF 5)

1шт.

25

RE12366

Electrical Connector Assy

(PKG OF 2)

1шт.

26

R78056

Electrical Connector Assy

(PKG OF 2)

1шт.

27

R78064

Elec. Connector Cavity Plug

(PKG OF 40)

1шт.
