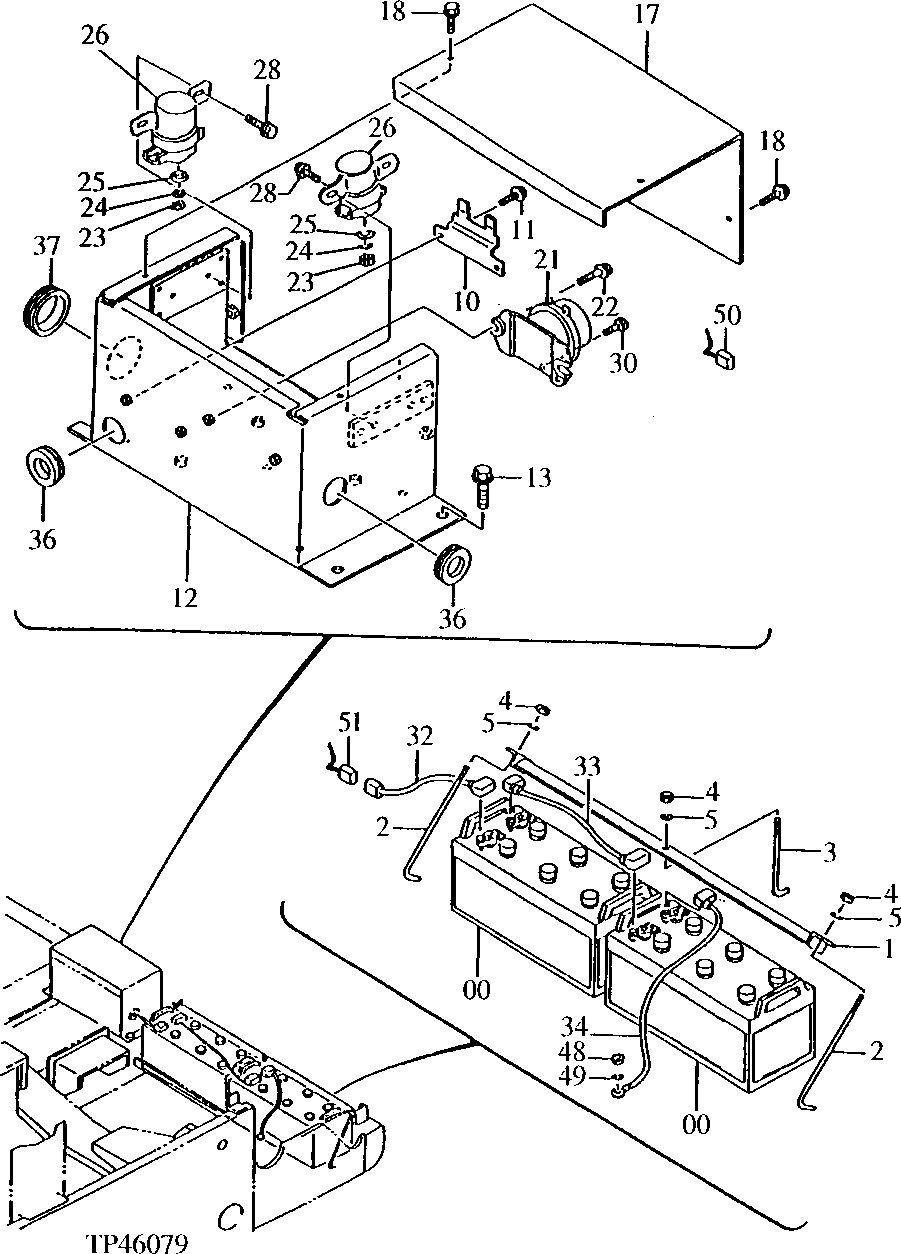

Запчасти John Deere 92ELC 105 - ELECTRIC PARTS 1674 Wiring Harness And Switches

0

TY23020

Dry Charged Battery

SUB FOR TY21709

2шт.

1

8059085

Clamp

SUB FOR AT201910

1шт.

2

4286840

Bolt

SUB FOR AT201745

2шт.

3

4286841

Bolt

SUB FOR AT201746

1шт.

4

14M7273

Nut

M8

3шт.

5

12M7056

Lock Washer

8 mm SUB FOR 12M7065

3шт.

10

4297280

Bracket

SUB FOR AT201752

1шт.

11

19M8425

Cap Screw

M6 X 16

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

12

6014343

Box

SUB FOR AT201847

1шт.

13

19M8011

Cap Screw

M12 X 30

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

12H301

Lock Washer

1/2"

4шт.

17

3069863

Cover

SUB FOR AT201709

1шт.

18

19M7402

Cap Screw

M10 X 25

4шт.

24M7346

Washer

11 X 20 X 2 mm

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

21

8943795431

Relay

SUB FOR 4255762 AND AT154229 Battery

1шт.

22

19M7407

Cap Screw

M8 X 25

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm SUB FOR 12M7065

2шт.

23

14M7272

Nut

M6

4шт.

24

12M7006

Lock Washer

6 mm

4шт.

25

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

26

AT145341

Relay

1-STARTER RELAY, 1-FUEL SHUTOFF RELAY, ALSO ORDER (2) 14M7165 FOR EACH RELAY

2шт.

14M7165

Lock Nut

M6 Not Illustrated

2шт.

28

19M7923

Cap Screw

M6 X 12

4шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

30

19M7881

Screw

M8 X 20

1шт.

32

4345359

Wiring Harness

SUB FOR AT202387 Battery To Battery Relay

1шт.

33

4345360

Wiring Harness

SUB FOR AT202388 Battery To Battery

1шт.

34

4271826

Cable

SUB FOR AT201737 Ground to Battery

1шт.

36

H210728

Grommet

SUB FOR AT202389 AND 4211059

2шт.

37

4207839

Grommet

SUB FOR AT131849

1шт.

48

14M7274

Nut

M10

1шт.

49

12M7066

Lock Washer

10 mm

1шт.

50

4315323

Fuse

SUB FOR AT171277 AND AT172435, FU SIBLE, 45 AMP For Starter Circuit

1шт.

51

4315324

Link

SUB FOR AT171278 AND AT172436 , FUSIBLE, 75 AMP For Battery

1шт.
