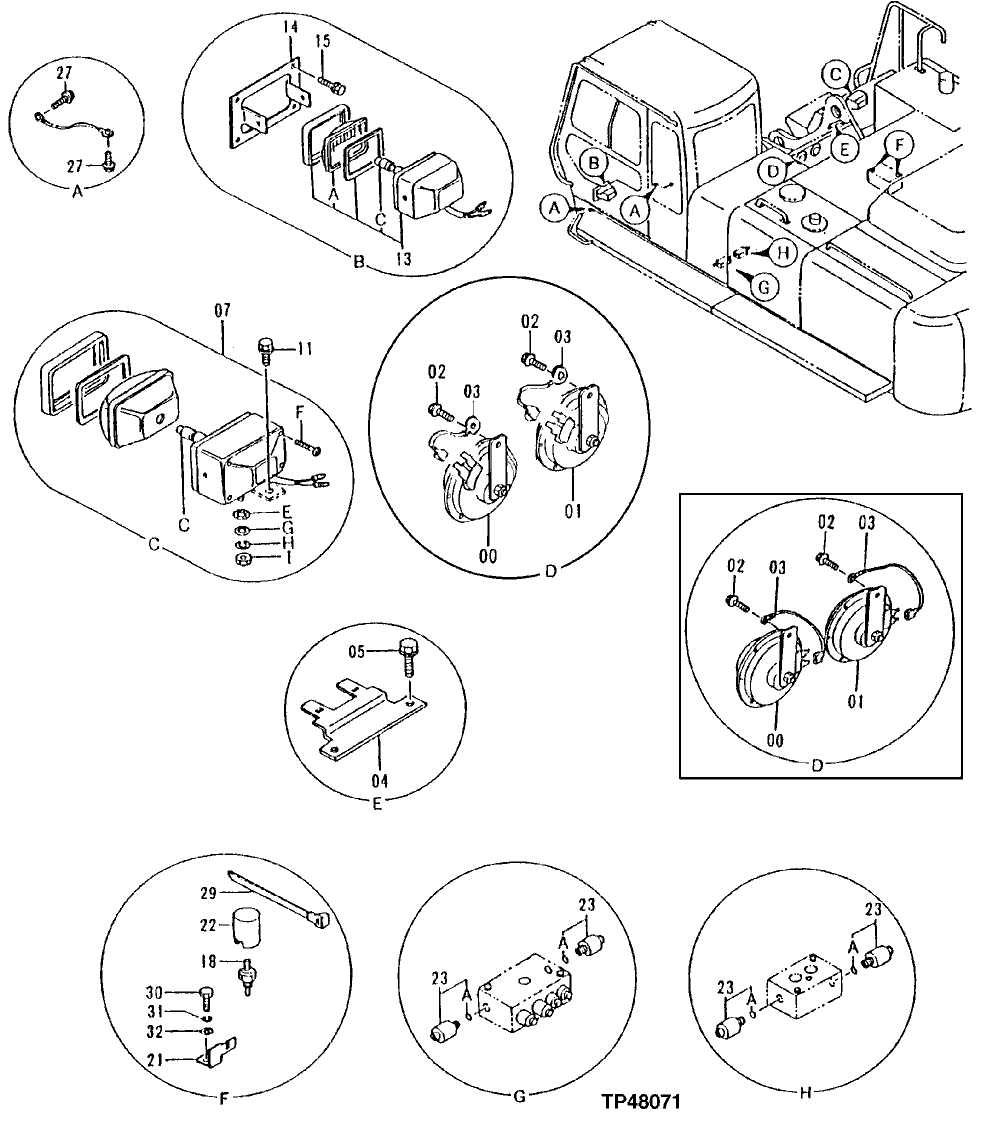

Запчасти John Deere 92ELC 103 - ELECTRIC PARTS 1674 Wiring Harness And Switches

0

AT64237

Horn

1шт.

1

AT64237

Horn

1шт.

2

19M7407

Cap Screw

M8 X 25

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

2шт.

3

Wire

(NOT AVAILABLE FOR SERVICE)

2шт.

4

4297280

Bracket

(SUB FOR AT201752)

1шт.

5

19M8425

Cap Screw

M6 X 16

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

7

4326800

Lamp

(SUB FOR AT176424)

1шт.

7C

AT135758

Bulb

(SUB FOR AT159149)(USE IF AVA ILABLE) (IF AT159149 NOT AVAIL ABLE, SUB AT154990 OR AT135758 )

1шт.

7E

4307026

Washer

(SUB FOR T144361)

1шт.

7F

37H19

Screw

(SUB FOR T144362 OR 4307027)

1шт.

7G

24M7085

Washer

15 X 28 X 2.500 mm

1шт.

7H

12H317

Lock Washer

9/16"

1шт.

7I

14M7345

Nut

M14 (SUB FOR J952014 ) (SUB FOR TH103791)

1шт.

11

19M7923

Cap Screw

M6 X 12

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

12M7006

Lock Washer

6 mm

1шт.

13

4274478

Headlight

(SUB FOR AT154323)

1шт.

13A

4285646

Lens

(SUB FOR AT154988)

1шт.

13C

AT135758

Bulb

(SUB FOR AT154990)

1шт.

14

3057614

Bracket

(SUB FOR AT201690)

1шт.

15

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

18

4339559

Sensor

(SUB FOR AT154530)(DIFFERENTIAL PRESSURE)

2шт.

21

4252767

Bracket

(SUB FOR AT154206)

2шт.

22

4277223

Cap

(SUB FOR AT154954)

2шт.

23

4254563

Pressure Switch

(SUB FOR AT154212)

4шт.

23A

CH19111

O-Ring

1шт.

27

19M7938

Cap Screw

M10 X 20

4шт.

12M7066

Lock Washer

10 mm

4шт.

29

H77698

Tie Band

2шт.

30

19M8425

Cap Screw

M6 X 16

2шт.

31

12M7006

Lock Washer

6 mm

2шт.

32

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.
