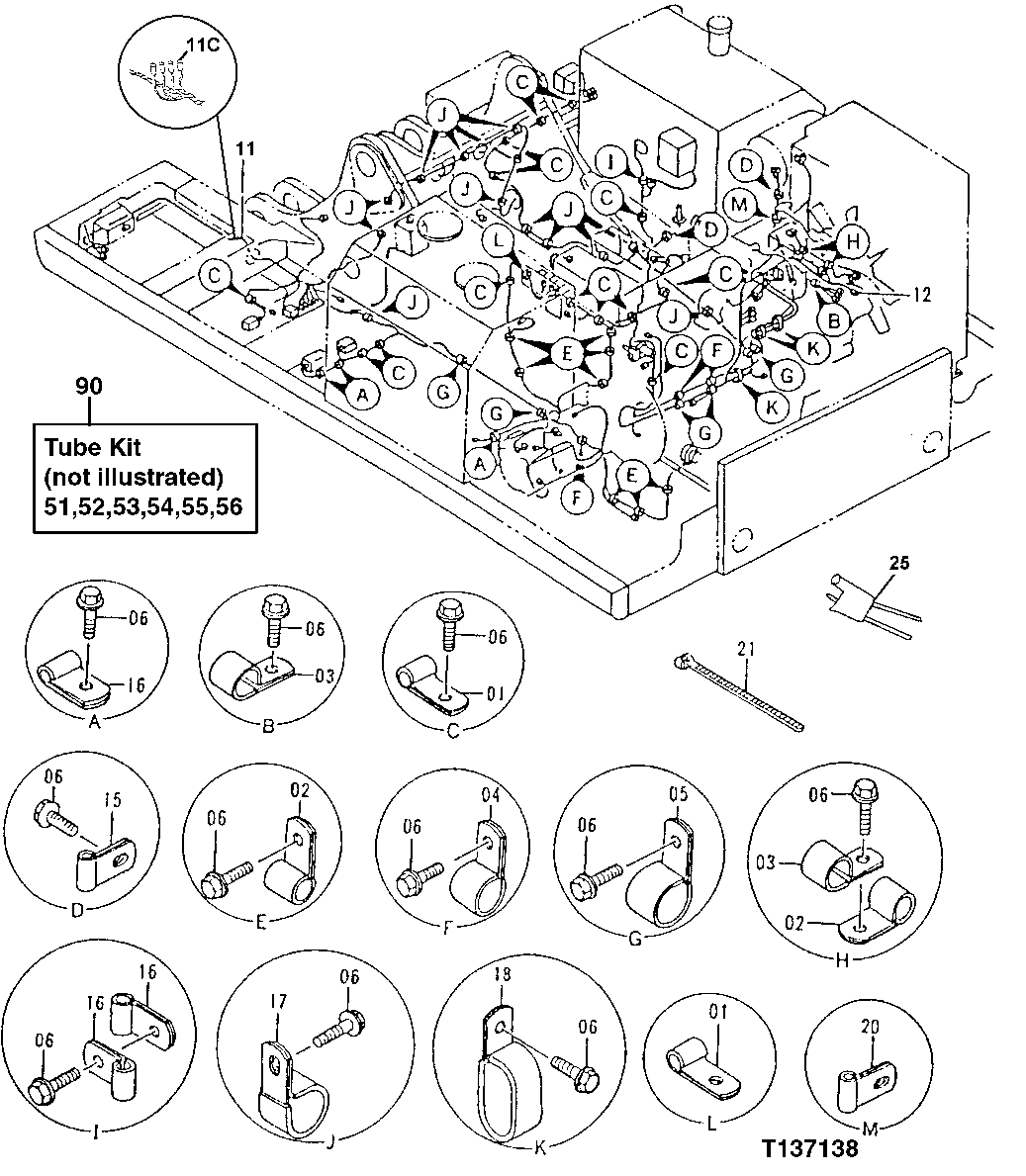

Запчасти John Deere 92ELC 102 - ELECTRIC PARTS 1674 Wiring Harness And Switches

1

4190261

Clip

(SUB FOR TH109649)

14шт.

2

4190275

Clamp

(SUB FOR TH108598)

16шт.

3

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

9шт.

4

T28949

Clamp

(SUB FOR TH108458 OR 4190274)

2шт.

5

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

7шт.

6

19M7938

Cap Screw

M10 X 20

56шт.

12M7066

Lock Washer

10 mm

56шт.

11

0001860

Wiring Harness

(SUB FOR AT201556)

1шт.

11A

4315323

Fuse

(SUB FOR AT172435)(NOT ILLUSTRATED) (F USIBLE LINK) (COMPONENT OF MAIN WIRE HA RNESS LOCATED NEAR FUEL SHUT-OFF RELAY)

1шт.

11B

4315324

Link

(SUB FOR AT172436)(NOT ILLUSTRATED) (F USIBLE LINK) (COMPONENT OF MAIN WIRE HA RNESS LOCATED NEAR FUEL SHUT-OFF RELAY)

1шт.

11C

4288109

Diode

(SUB FOR (3) AT174465)

3шт.

4288109

Diode

(SUB FOR (4) AT174465)

4шт.

12

4338517

Jumper

(SUB FOR AT201815)(STA RTER TO BATTERY RELAY)

1шт.

15

T38377

Clamp

2шт.

16

T30367

Clamp

3шт.

17

AT121321

Hose Clamp

4шт.

18

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

3шт.

20

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

1шт.

21

H77698

Tie Band

18шт.

25

AT172578

Wiring Harness

(DIODE) (USED TO PROTECT AGAINST VOLTAGE SPIKES)

1шт.

51

Tube Kit

(K) (FLAME AND HEAT RESISTA NT) (7 MM DIAMETER, 5 M LONG)

1шт.

52

Tube Kit

(K) (FLAME AND HEAT RESISTA NT) (10 MM DIAMTER, 5 M LONG)

1шт.

53

Tube Kit

(K) (FLAME AND HEAT RESISTAN T) (13 MM DIAMETER, 3 M LONG)

1шт.

54

Tube Kit

(K) (FLAME AND HEAT RESISTAN T) (19 MM DIAMETER, 3 M LONG)

1шт.

55

Tube Kit

(K) (HEAT RESISTANT)

1шт.

56

Tube Kit

(K)

10шт.

90

4425865

Wiring Harness

INCLUDES ALL (K) PARTS (WIRE HARNESS) (SUB FOR AT186651)

1шт.
