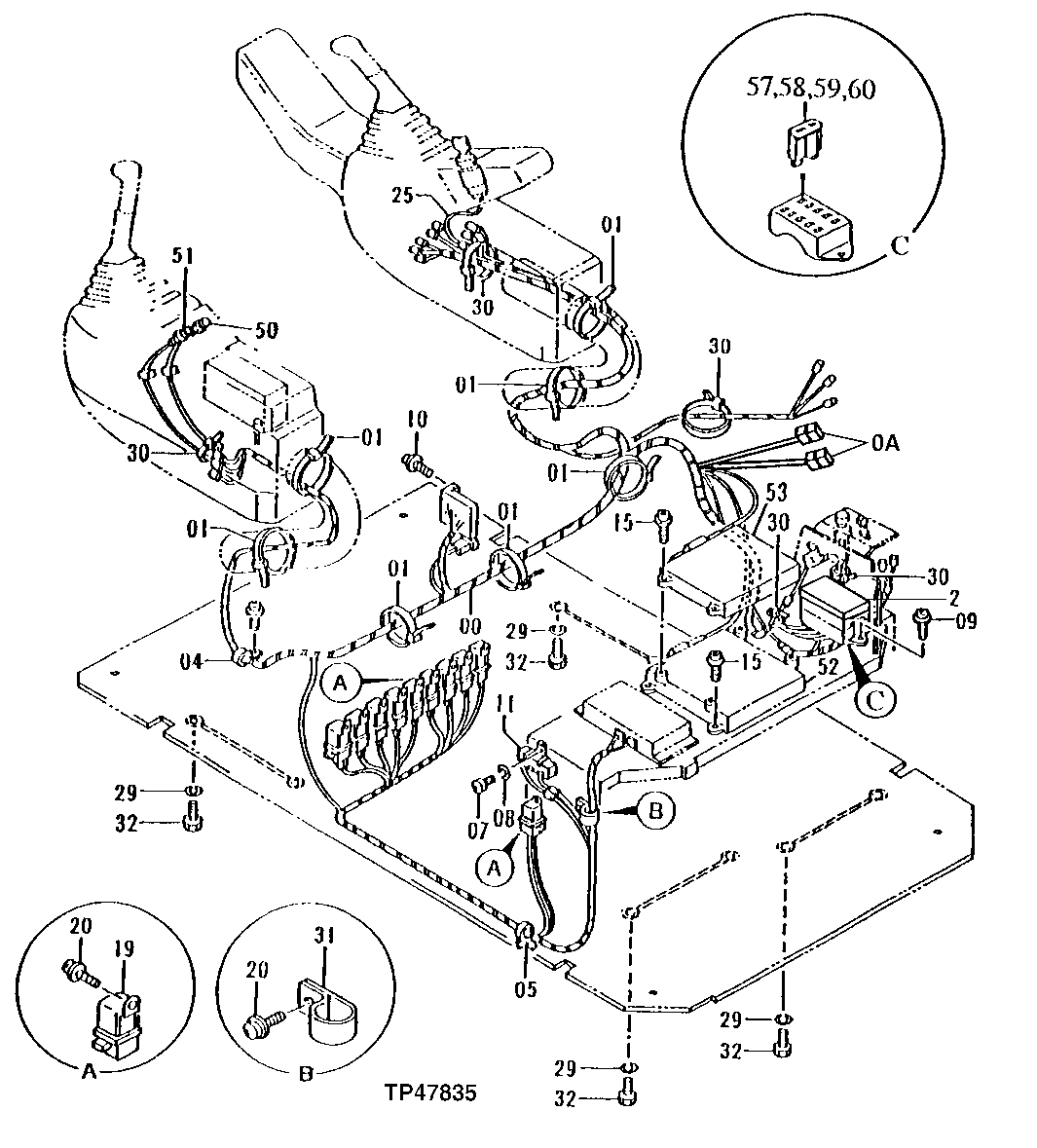

Запчасти John Deere 92ELC 101 - ELECTRIC PARTS 1674 Wiring Harness And Switches

0

0001856

Wiring Harness

(SUB FOR AT201555)

1шт.

0A

4288109

Diode

(SUB FOR (12) AT174465)(COMPONENT OF WIRE H ARNESS) (SEPARATE DIODES) (1-KEYSWITCH, 1-SW ING STOP CUSHION SOLENOID, 1-GPIP SOLENOID, 1-FUEL SHUTOFF SOLENOID, 1-OPTIONAL EQUIPMEN T)

5шт.

4385926

Diode

(SUB FOR AT179394)(COMPONENT OF WIRE HAR NESS) (PLASTIC CONNECTOR CONTAINS 5 DIODE S) (1-MONITOR CONTROLLER, 1-SWING STOP CU SHION SOLENOID, 1-SWING BRAKE RELEASE SOL ENOID, 1-FUEL SHUTOFF, 1-OPTIONAL EQUIPME NT)

1шт.

1

H77698

Tie Band

7шт.

2

4355098

Label

(SUB FOR AT176174)(FUSE BOX)

1шт.

4

4190275

Clamp

(SUB FOR TH108598)

1шт.

5

4254600

Clip

(SUB FOR AT154928)

1шт.

7

4204811

Screw

(SUB FOR AT155253)

1шт.

8

TH101147

Washer

1шт.

9

19M7077

Cap Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

10

Screw With Washer

(SUB FOR AT200012)( J460 620 NO LONGER AVAILABLE)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

11

4191772

Resistor

(SUB FOR AT155250)(ALTERNATOR EXITATION)

1шт.

15

19M8425

Cap Screw

M6 X 16

8шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.

12M7006

Lock Washer

6 mm

8шт.

19

4251588

Relay

(SUB FOR AT154924)

10шт.

20

19M8425

Cap Screw

M6 X 16

11шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

11шт.

12M7006

Lock Washer

6 mm

11шт.

25

4277927

Wiring Harness

(SUB FOR AT154955)(STARTER SWITCH)

1шт.

29

12M7066

Lock Washer

10 mm

4шт.

30

H77698

Tie Band

5шт.

31

4000859

Clip

(SUB FOR AT154910)

1шт.

32

19M7938

Cap Screw

M10 X 20

4шт.

50

4322387

Switch

(SUB FOR AT161978)(MOTION ALARM)

1шт.

51

4322389

Switch

(SUB FOR AT161977)(START AID)

1шт.

52

9143298

Engine Controller

(SUB FOR AT201946 ) (SUB FOR AT1 72245)(PILOT VALVE CONTROL UNIT)

1шт.

9155107

Control

(SUB FOR AT179127)(PIL OT VALVE CONTROL UNIT)

1шт.

53

9143299

Control Console

(SUB FOR AT201947 ) (SUB FOR AT172246)(ENGINE CONTROL UNIT)

1шт.

9155108

Control Console

(SUB FOR AT179128)(ENGINE CONTROL UNIT)

1шт.

57

57M7329

Fuse

(BLACK)

4шт.

58

57M7125

Fuse

(TAN)

7шт.

59

57M7121

Fuse

(RED)

4шт.

60

57M7120

Fuse

(YELLOW)

4шт.
