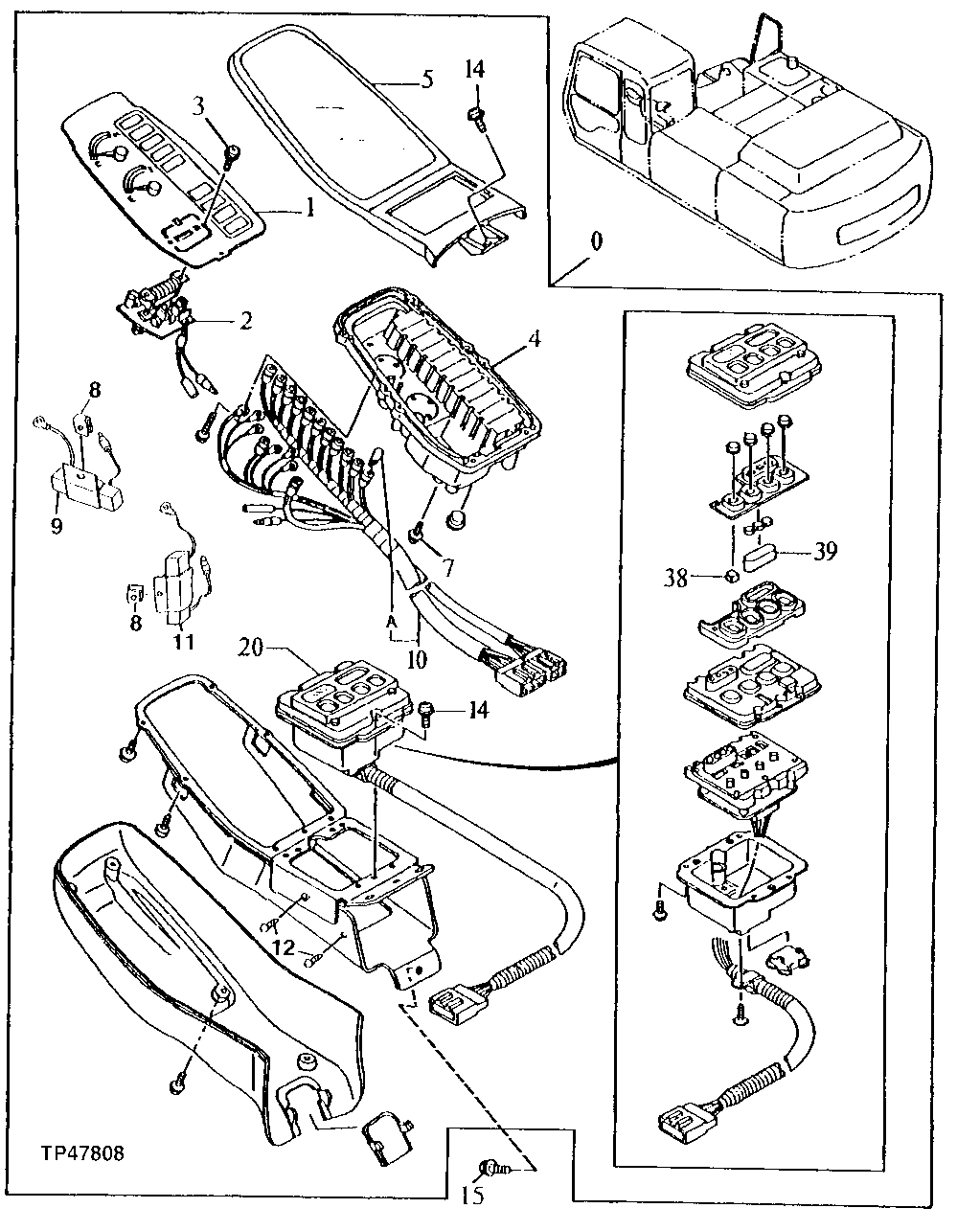

Запчасти John Deere 92ELC 100 - Instrument Panel 1674 Wiring Harness And Switches

0

4282697

Gauge

(SUB FOR AT154965)

1шт.

4376633

Instrument Panel

(SUB FOR AT178159)

1шт.

1

Cover

(FUEL AND TEMPERATURE GAUGE) ( 4302534 NO LONGER AVAILABLE) (SUB 4311598, ALO NG WITH 4323939, AT165598, (2) 4323980 , (3) 4335441, (4) 4311599 AND 4325818)

1шт.

4381046

Meter

(SUB FOR AT178162)(FUEL AND TEMPERATURE GAUGE)

1шт.

2

4323939

Meter

(SUB FOR AT201076)(HOUR)

1шт.

3

4323980

Bolt

(SUB FOR AT165597)

2шт.

4

4323720

Housing

(SUB FOR AT165598)

1шт.

5

4297131

Housing

(SUB FOR AT155665)

1шт.

7

4335441

Screw

(SUB FOR AT165599)

3шт.

8

4361622

Nut

(SUB FOR AT174914)

2шт.

9

4360152

Resistor

(SUB FOR AT174911)(WATER TEMPERATURE GAUGE)

1шт.

10

4297126

Wiring Harness

(SUB FOR AT155670)

1шт.

10A

4297110

Lamp

(SUB FOR AT155607)

14шт.

11

4360157

Resistor

(SUB FOR AT174912)(FUEL LEVEL GAUGE)

1шт.

12

4361621

Screw

(SUB FOR AT174913)

2шт.

14

Screw With Washer

(SUB FOR AT155615)( 4297102 NLA)

4шт.

21M7396

Screw

M4 X 10

4шт.

24M7117

Washer

4.300 X 9 X 0.800 mm

4шт.

12H315

Lock Washer

0.164"

4шт.

15

19M7932

Cap Screw

M8 X 16

3шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.

20

4297124

Switch

(SUB FOR AT155677)(LIGHTS, WINDSHIEL D WIPER-WASHER AND FLUID LEVEL CHECK)

1шт.

38

4311599

Spacer

(SUB FOR AT201048)

4шт.

39

4311598

Spacer

(SUB FOR AT201047)

1шт.
