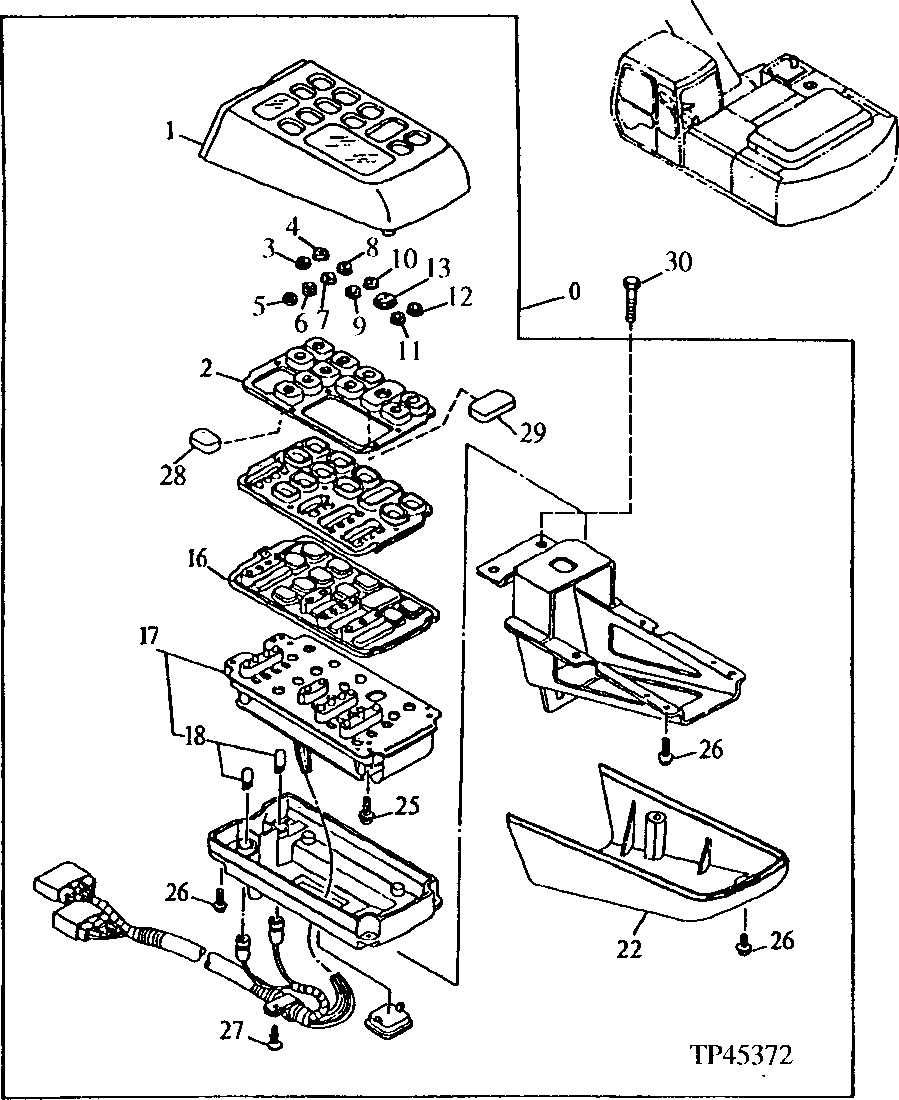

Запчасти John Deere 92ELC 99 - Switch Box 1674 Wiring Harness And Switches

0

4323698

Box

(SUB FOR AT202325)

1шт.

1

4297116

Case

(SUB FOR AT155590)

1шт.

2

4297115

Switch

(SUB FOR AT155591)(RUBBER)

1шт.

3

4297090

Panel

(SUB FOR AT155592)(DECELERATOR SWITCH)

1шт.

4

4297091

Panel

(SUB FOR AT155593)(ACCELERATOR SWITCH)

1шт.

5

4297092

Panel

(LOW IDLE MODE SWITCH)

1шт.

6

4297093

Panel

(LIGHT DUTY MODE SWITCH)

1шт.

7

4297094

Panel

(ECONOMY MODE SWITCH)

1шт.

8

4297095

Panel

(MAXIMUM POWER MODE SWITCH)

1шт.

9

4297096

Panel

(SUB FOR AT155598)(AUTO IDLE SWITCH)

1шт.

10

4297097

Panel

(SUB FOR AT155599)(HYD RAULIC WARM UP SWITCH)

1шт.

11

4297098

Panel

(SUB FOR AT155600)(PROPE L SPEED DECREASE SWITCH)

1шт.

12

4297099

Panel

(SUB FOR AT155601)(PROPE L SPEED INCREASE SWITCH)

1шт.

13

4297100

Panel

(SUB FOR AT155602)(WORK MODE SELECT SWITCH)

1шт.

16

4297112

Switch

(SUB FOR AT155605)

1шт.

17

4341184

Board

(SUB FOR AT202341)

1шт.

18

4297110

Lamp

(SUB FOR AT155607)

2шт.

22

4297106

Cover

(SUB FOR AT155611)

1шт.

25

4297103

Screw

(SUB FOR AT155614)

4шт.

26

Screw With Washer

(SUB FOR AT155615)( 4297102 NLA)

12шт.

21M7396

Screw

M4 X 10

12шт.

24M7117

Washer

4.300 X 9 X 0.800 mm

12шт.

12H315

Lock Washer

0.164"

12шт.

27

T116079

Screw

(SUB FOR AT155616 ) (SUB FOR 4297101)

1шт.

28

4311599

Spacer

(SUB FOR AT201048)

10шт.

29

4311628

Spacer

(SUB FOR AT165106)

1шт.

30

19M7932

Cap Screw

M8 X 16

3шт.

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.

19M7932

Cap Screw

M8 X 16 (SUB FOR 19M7162)

3шт.
