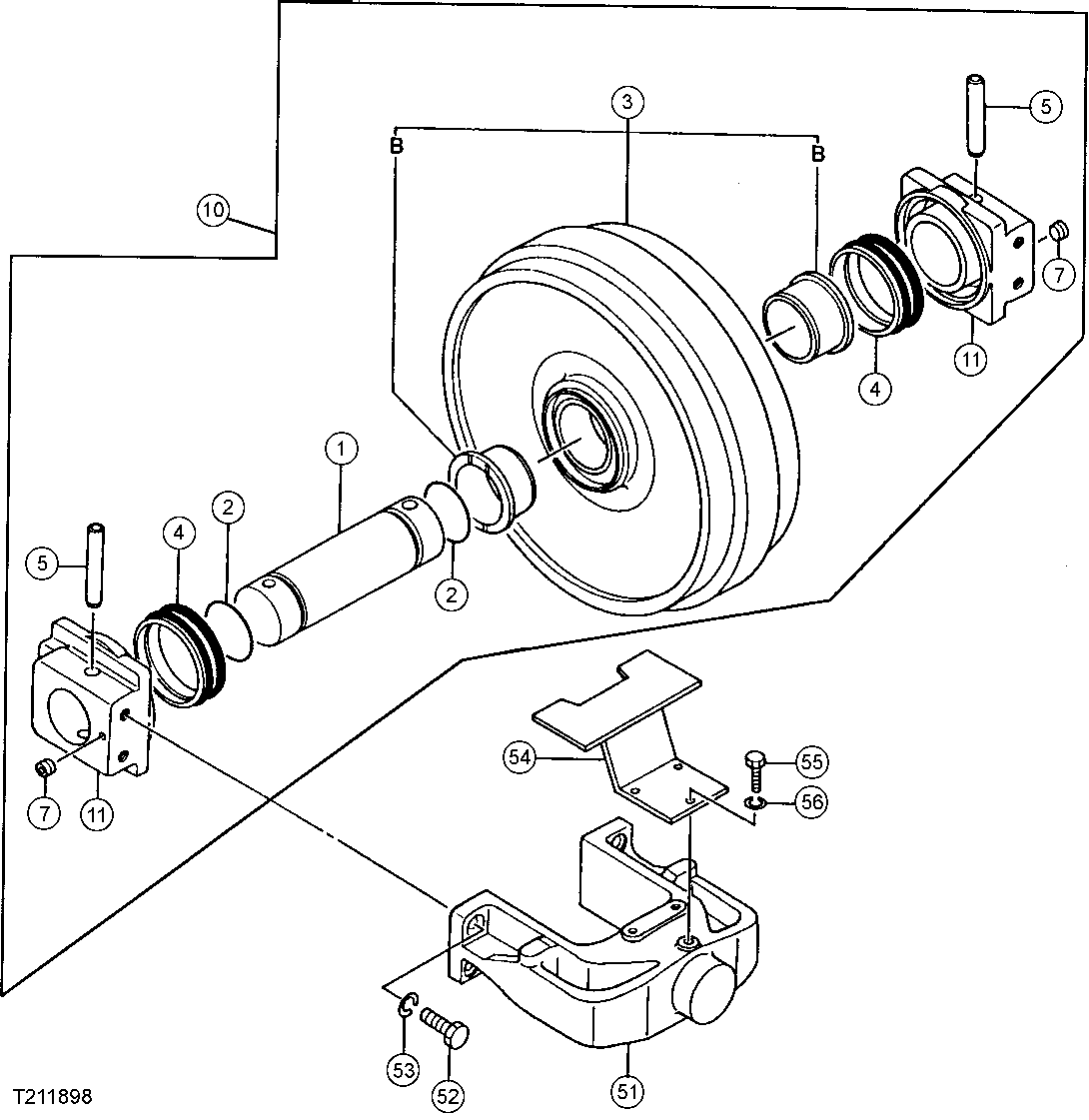

Запчасти John Deere 92ELC 1 - Front Idler 0130 Track Systems

1

2030997

Axle

SUB FOR AT201657

1шт.

2

TH100156

O-Ring

99.600 X 5.700 mm

2шт.

3

Roller

9165600 NLA, FURNISH 9165848 SUB FOR AT201945 OR 9134296

1шт.

3B

3037466

Bushing

SUB FOR AT131612

2шт.

4

4344810

Seal

SUB FOR AT202242

2шт.

5

4153956

Pin

26 X 142 mm SUB FOR AT131712

2шт.

7

942011

Fitting Plug

SUB FOR 94-2011 AND TH100434

2шт.

10

9165848

Idler

SUB FOR AT201944

1шт.

11

1020353

Bracket

SUB FOR AT165969

2шт.

51

1015046

Yoke

SUB FOR AT201643

1шт.

52

19M8224

Cap Screw

M20 X 60

4шт.

53

12M7070

Lock Washer

20 mm

4шт.

54

7023752

Guard

SUB FOR AT201851

1шт.

55

19M8011

Cap Screw

M12 X 30

3шт.

56

12H301

Lock Washer

1/2"

3шт.
