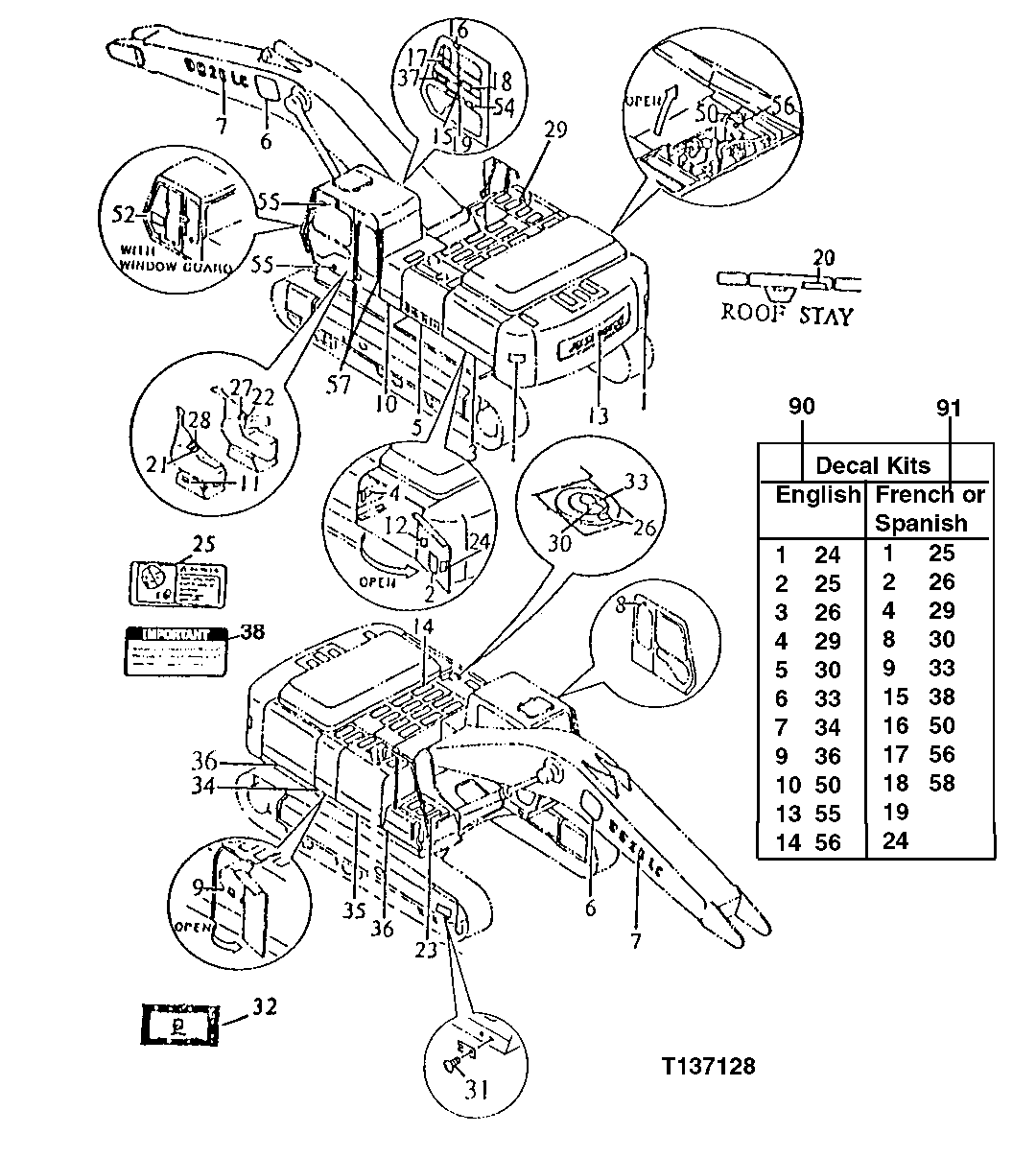

Запчасти John Deere 92ELC 92 - Labels and Decals 1320 VEHICLE FINISH AND TRIM

1

T248455

Label

(K) (SUB FOR T114398, T147008, 2035960 OR 2035960R)(STAY CLEAR)

2шт.

T238194

Label

(K2) (STAY CLEAR - FRENCH)

2шт.

T238191

Label

(K3) (STAY CLEAR - SPANISH)

2шт.

2

T152075

Label

(K) (PERIODIC MAINTENANCE)

1шт.

T157996

Label

(K) (PERIODIC MAINTENANCE)

1шт.

T153630

Label

(K2) (PERIODIC MAINTENANCE - FRENCH)

1шт.

T153627

Label

(K3) (PERIODIC MAINTENANCE - SPANISH)

1шт.

3

T146680

Label

(K) (STRIPE - LEFT REAR SIDE)

1шт.

4

T149983

Label

(K) (OIL LEVEL CHECK) (LOCATED TO LEFT OF HYDRAULIC OIL SIGHT LEVEL ON HYDRAULIC TANK)

1шт.

T153431

Label

(K2) (OIL LEVEL CHECK - FRENCH)

1шт.

T153415

Label

(K3) (OIL LEVEL CHECK - SPANISH)

1шт.

5

T146541

Label

(K) (SUB FOR T151352)(JOH N DEERE - STRIPE LEFT SIDE)

1шт.

6

JD5629

Label

(K) (LEAPING DEER)

2шт.

7

T151359

Label

(K) (MODEL DESIGNATION)

2шт.

8

T146664

Safety Sign

(CAUTION, WINDOW LOCK - INSIDE CAB)

1шт.

T148909

Safety Sign

(K2) (CAUTION, WINDOW LOCK - FRENCH)

1шт.

T148904

Safety Sign

(K3) (CAUTION, WINDOW LOCK - SPANISH)

1шт.

9

R56902

Label

(K) (DRY AIR CLEANER)

1шт.

CD14148

Label

(K2) (DRY AIR CLEANER - FRENCH)

1шт.

R56903

Label

(K3) (DRY AIR CLEANER - SPANISH)

1шт.

10

T146680

Label

(K) (STRIPE - LEFT SIDE)

1шт.

11

4299059

Label

(SUB FOR T138886)(HYDRAULIC LOCKOUT)

1шт.

12

4241586

Label

(SUB FOR AT132146)(UP-DOWN FOR COUNTERWEIGHT REMOVAL)

1шт.

13

T151357

Label

(K) (JOHN DEERE - COUNTERWEIGHT)

1шт.

14

H21259

Mat

(K) (CLEAT, OPERATOR DECK)

27шт.

15

T146666

Safety Sign

(CAUTION)

1шт.

T148911

Safety Sign

(K2) (CAUTION - FRENCH)

1шт.

T148907

Safety Sign

(K3) (CAUTION - SPANISH)

1шт.

16

T146668

Safety Sign

(WARNING - AVOID CRUSHING)

1шт.

T148908

Safety Sign

(K2) (WARNING, AVOID CRUSHING - FRENCH)

1шт.

T148905

Safety Sign

(K3) (WARNING, AVOID CRUSHING - SPANISH)

1шт.

17

T152124

Label

(LIFT CAPACITY)

1шт.

T153631

Label

(K2) (LIFT CAPACITY - FRENCH)

1шт.

T153628

Label

(K3) (LIFT CAPACITY - SPANISH)

1шт.

18

2034293

Label

(SUB FOR T138851)(START-STOP OPERATION)

1шт.

T153571

Label

(K2) (START/STOP OPERATION - FRENCH)

1шт.

T153559

Label

(K3) (START/STOP OPERATION - SPANISH)

1шт.

19

T146667

Safety Sign

(DANGER - ELECTRICAL HAZARD)

1шт.

T148910

Safety Sign

(K2) (DANGER, ELECTRICAL HAZARD - FRENCH)

1шт.

T148906

Safety Sign

(K3) (DANGER, ELECTRICAL HAZARD - SPANISH)

1шт.

20

4289908

Label

(SUB FOR AT155731)(CAB ROOF DOOR ARROW)

1шт.

21

4288971

Label

(SUB FOR AT155729)(ETH ER AID - MOTION CANCEL)

1шт.

22

4264805

Label

(SUB FOR AT155730)(IGNITION KEY SWITCH)

1шт.

23

H21259

Mat

(SUB FOR TH110224)(ANTI-SKID)

1шт.

90

AT169428

Label Kit

INCLUDES ALL (K) PARTS (REPAINT)( ALSO ORDER AT166677 TAPE ASSEMBLY)

1шт.

91

Label Kit

INCLUDES ALL (K) PARTS (FRENCH, DIS CARD UNUSED DECALS) ( AT170075 NLA)

1шт.

AT170074

Label Kit

INCLUDES ALL (K) PARTS (SPA NISH, DISCARD UNUSED DECALS)

1шт.
