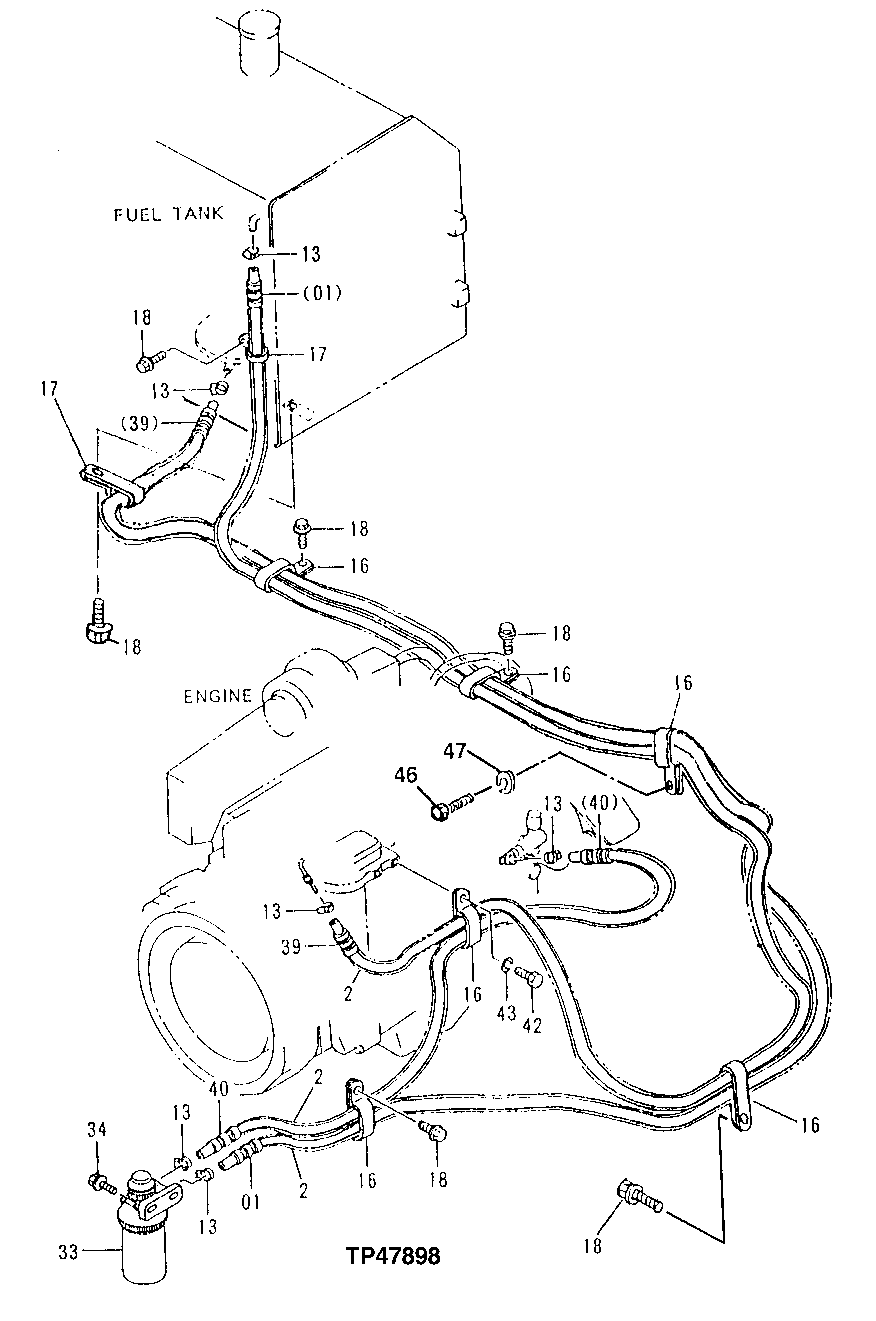

Запчасти John Deere 92ELC 89 - FUEL PIPINGS 0560 External Fuel Supply Systems

1

Hose

(CUT TO LENGTH FROM TY22561 BULK MATERIAL)

1шт.

2

T83427

Conduit

3шт.

13

TY22464

Clamp

(SUB FOR AT145649 ) (SUB FOR AR21836)

6шт.

16

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

6шт.

17

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

2шт.

18

19M7938

Cap Screw

M10 X 20

6шт.

12M7066

Lock Washer

10 mm

6шт.

33

Water Trap

(WATER) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

34

19M7550

Cap Screw

M10 X 35

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

39

Hose

(CUT TO LENGTH FROM TY22561 BULK MATERIAL)

1шт.

40

Hose

(CUT TO LENGTH FROM TY22561 BULK MATERIAL)

1шт.

42

19H1648

Cap Screw

3/8" X 3/4"

1шт.

43

12H293

Lock Washer

7/16"

1шт.

46

M211016

Bolt

(SUB FOR AT172742)

1шт.

47

12M7066

Lock Washer

10 mm

1шт.
