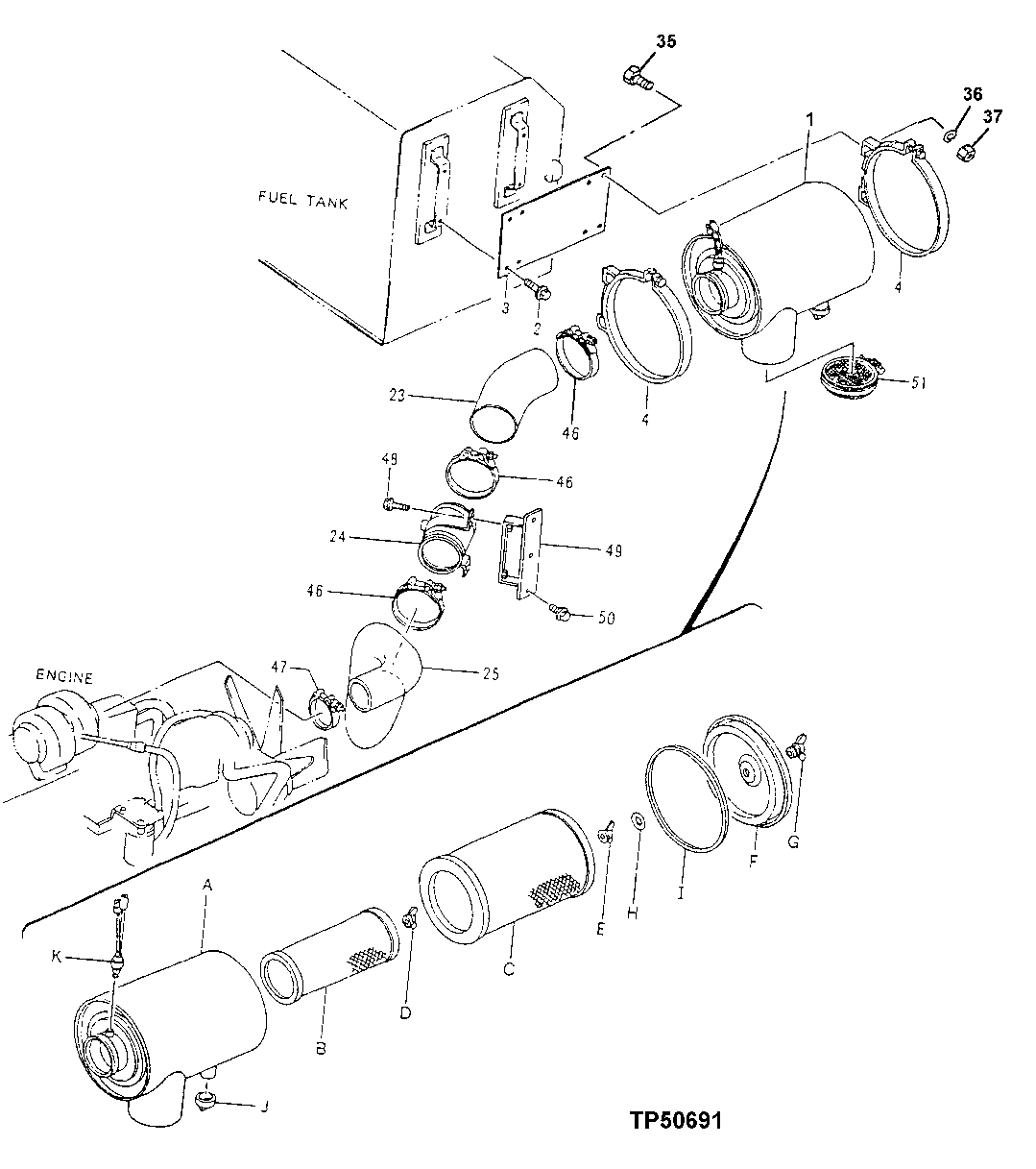

Запчасти John Deere 92ELC 86 - AIR CLEANER (SN 007001- ) (007001 - ) 0520 Intake System

1

4220786

Air Cleaner

(SUB FOR AT179377)

1шт.

1A

Housing

(NOT AVAILABLE FOR SERVICE)

1шт.

1B

AT179370

Filter Element

(INNER)

1шт.

1C

AT179371

Filter Element

(OUTER)

1шт.

1D

4337642

Nut

(SUB FOR AH20849, THIS APPL ICATION ) (SUB FOR AT166137)

1шт.

1E

4257360

Nut

(SUB FOR AT200998)

1шт.

1F

4297292

Cover

(SUB FOR AT201034)

1шт.

1G

AR73234

Wing Nut

11.125 mm (SUB FOR AR7 3234, THIS APPLICATION)

1шт.

1H

P46402

Snap Ring

1шт.

1I

4257362

Gasket

(SUB FOR AT200999)

1шт.

1J

4152863

Flow Control Hyd. Valve

(SUB FOR TH111700)

1шт.

1K

4224238

Indicator

(SUB FOR AT131922)

1шт.

2

19M7402

Cap Screw

M10 X 25

8шт.

12M7066

Lock Washer

10 mm

8шт.

19M7402

Cap Screw

M10 X 25

4шт.

3

4386878

Plate

(SUB FOR AT178199 ) (SUB FOR AT217136)

1шт.

4

4221470

Clamp

(SUB FOR AT178200)

2шт.

23

4377218

Hose

(SUB FOR AT178201)(AIR)

1шт.

24

8067486

Air Intake Stack

(SUB FOR AT178202)(AIR)

1шт.

25

AT178203

Hose

(AIR)

1шт.

35

19M7402

Cap Screw

M10 X 25

4шт.

36

12M7066

Lock Washer

10 mm

4шт.

37

14M7274

Nut

M10

4шт.

46

AT53440

Clamp

(SUB FOR AT53438, THIS APPLICATION)

3шт.

47

AT56657

Hose Clamp

(SUB FOR RE19429, THIS APPLICATION)

1шт.

48

19M8011

Cap Screw

M12 X 30

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

12H301

Lock Washer

1/2"

2шт.

49

8067490

Bracket

(SUB FOR AT178204)

1шт.

50

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

3шт.

24H1748

Washer

1/2" X 1-1/4" X 0.105"

3шт.

19M8011

Cap Screw

M12 X 30

3шт.

51

4330083

Screen

(SUB FOR AT202329)

1шт.
