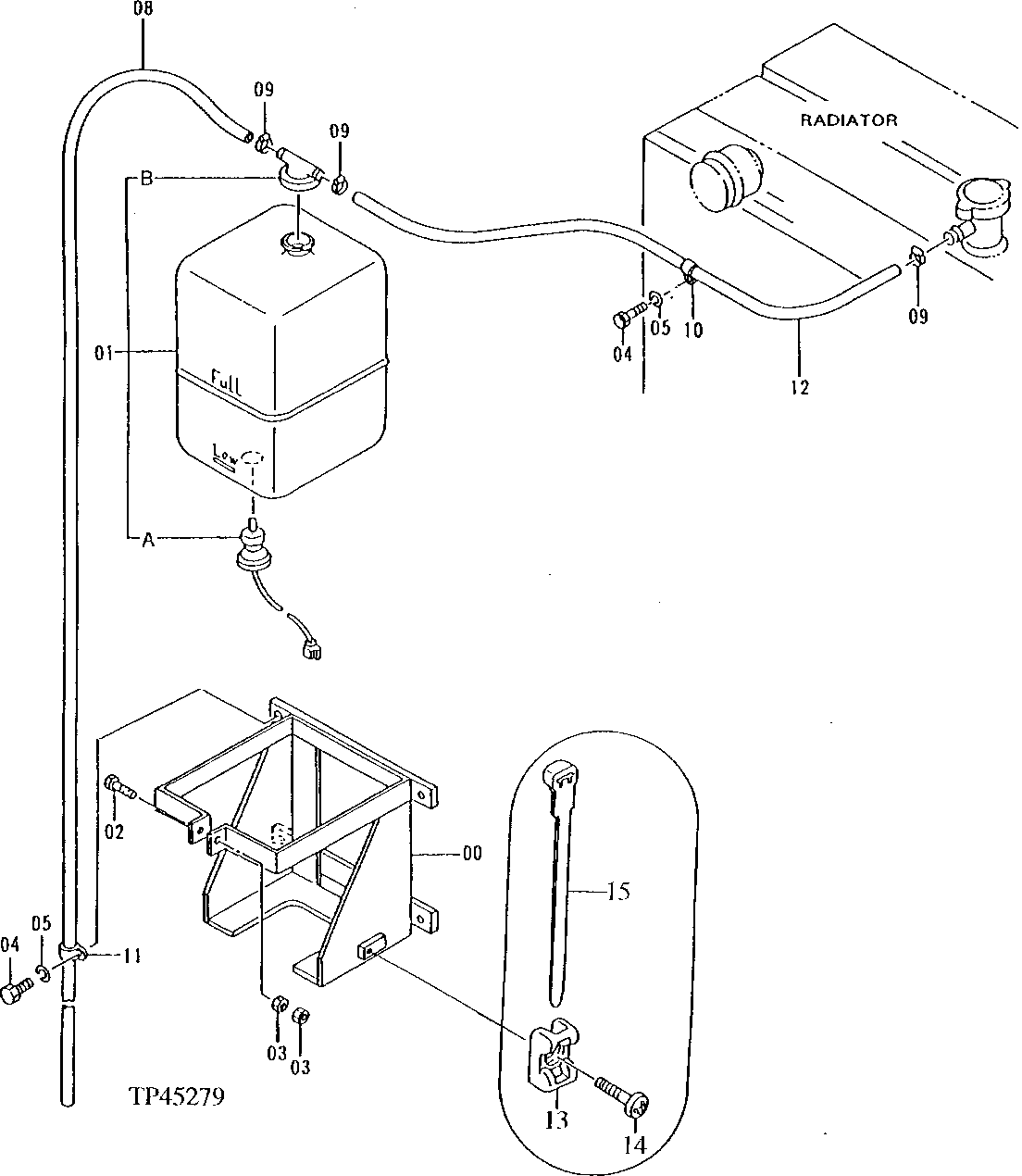

Запчасти John Deere 92ELC 82 - RESERVE TANK 0510 Engine Cooling Systems

0

7019986

Bracket

(SUB FOR AT132048)

1шт.

1

4206452

Tank

(SUB FOR AT155329 ) (SUB FOR AT147301)

1шт.

1A

4153251

Sender

(SUB FOR TH102932)

1шт.

1B

4396809

Cap

(SUB FOR TH102933)

1шт.

2

19M7177

Cap Screw

M6 X 35

1шт.

3

14M7272

Nut

M6

2шт.

4

19M7872

Cap Screw

M12 X 25

2шт.

5

12H301

Lock Washer

1/2"

2шт.

8

Tube

(MAKE FROM 1/4 INCH VIN YL TUBING CUT TO LENGTH)

1шт.

9

TY22462

Clamp

(SUB FOR AR48236)

3шт.

10

AH79175

Clip

(SUB FOR TH108600 OR 4190272)

1шт.

11

4190261

Clip

(SUB FOR TH109649)

1шт.

12

T79477

Hose

1шт.

13

4196829

Bracket

(SUB FOR AT132496)

1шт.

14

21M7288

Screw

M6 X 10

1шт.

15

H77698

Tie Band

(SUB FOR M88199)

1шт.
