Запчасти John Deere 92ELC 80 - RADIATOR, OIL COOLER AND FAN GUARD 0510 Engine Cooling Systems

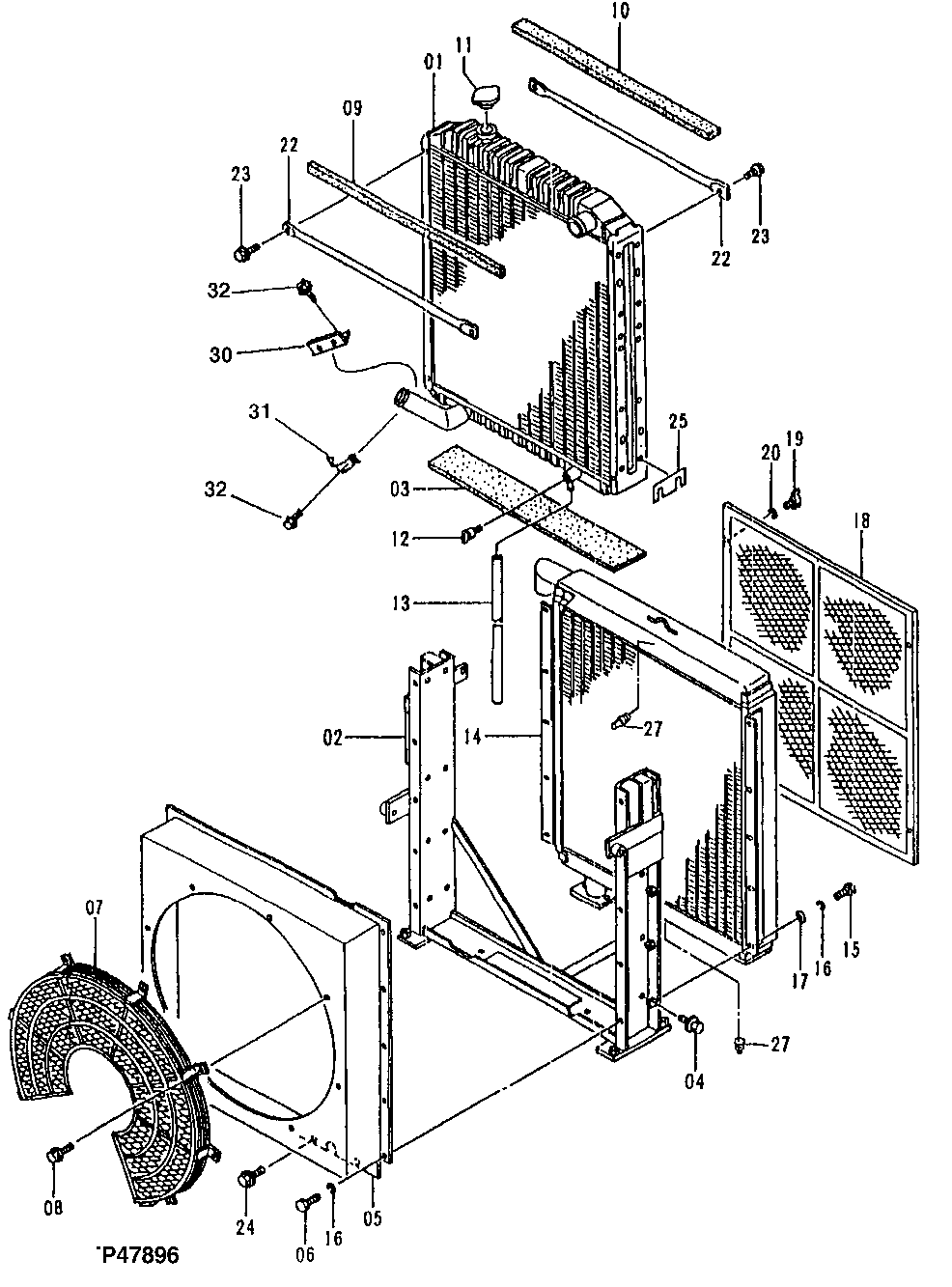

Схема запчастей John Deere 92ELC - 80 - RADIATOR, OIL COOLER AND FAN GUARD 0510 Engine Cooling Systems

Артикул

Название

Примечание

Количество

1

4361246

Radiator

(SUB FOR AT173256)

1шт.

2

4361245

Frame

(SUB FOR AT173257)

1шт.

3

4361291

Packing

(SUB FOR AT173258)

1шт.

4

4331645

Bolt

(SUB FOR AT202144)

16шт.

5

4361244

Shroud

(SUB FOR AT173259)

1шт.

6

19M7402

Cap Screw

M10 X 25

10шт.

7

4361472

Guard

(SUB FOR AT173262)(FAN)

1шт.

8

19M7932

Cap Screw

M8 X 16 (SUB FOR AT202245 OR 4331649)

7шт.

12M7065

Lock Washer

8 mm

7шт.

9

4237639

Isolator

(SUB FOR AT132530)

2шт.

10

4237640

Isolator

(SUB FOR AT132531)

2шт.

11

AT169085

Filler Cap

(SUB FOR AT164267)

1шт.

12

4148705

Drain Plug

(SUB FOR TH109425)

1шт.

13

Tube

(FURNISH 1/2 INCH VINY L TUBING CUT TO LENGTH)

1шт.

14

AT173255

Oil Cooler

(SUB FOR AT202148)(USE IF AVAILABLE) (I F AT173255 NOT AVAILABLE, SUB AT176329)

1шт.

4333473

Oil Cooler

(SUB FOR AT176329)

1шт.

15

19M7402

Cap Screw

M10 X 25

10шт.

16

12M7066

Lock Washer

10 mm

20шт.

17

24M7028

Washer

10.500 X 20 X 2 mm

10шт.

18

4237643

Screen

(SUB FOR AT132533)

1шт.

19

21M1689

Wing Screw

M6 X 12

4шт.

20

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

22

4237644

Brace

(SUB FOR AT132534)

2шт.

23

4331645

Bolt

(SUB FOR AT202144)

4шт.

24

4331647

Bolt

(SUB FOR AT202146)

4шт.

25

4331651

Bracket

(SUB FOR AT202149)

4шт.

27

M800462

Plug

2шт.

30

4361247

Bracket

(SUB FOR AT173260)

1шт.

31

4361248

Bracket

(SUB FOR AT173261)

1шт.

32

19M7932

Cap Screw

M8 X 16 (SUB FOR AT202245 OR 4331649)

4шт.

12M7065

Lock Washer

8 mm

4шт.

Выбрано товаров: 31
