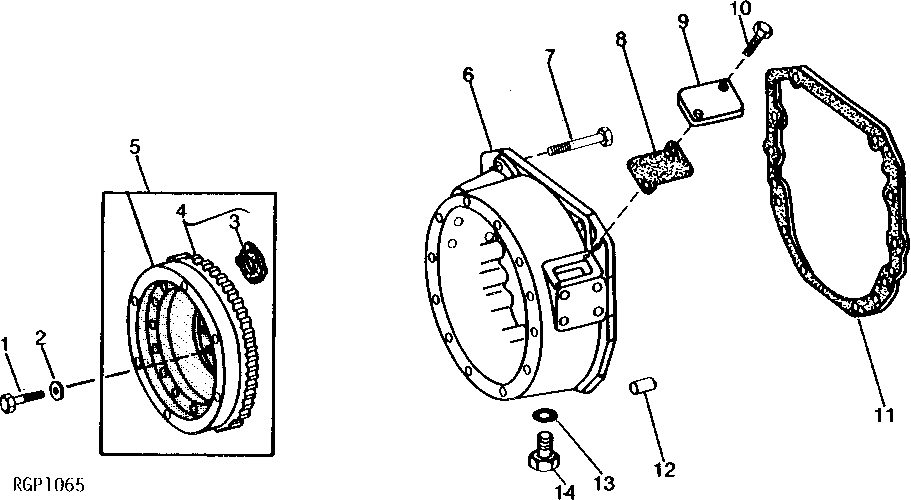

Запчасти John Deere 92ELC 73 - FLYWHEEL AND HOUSING 0433 FLYWHEEL, HOUSING AND FASTENINGS 6101AT010 6101AT010

1

R35044

Self-Locking Screw

6шт.

2

R76126

Washer

6шт.

3

R57480

Gasket

1шт.

4

AR103044

Kit

(MARKED R76000)

1шт.

5

AR103320

Kit

(MARKED R63032)

1шт.

6

R108900

Housing

(SUB R121688 AND (2) H79910)

1шт.

R121688

Housing

1шт.

7

19H1862

Cap Screw

3/4" X 2-1/2"

6шт.

8

R67989

Gasket

1шт.

9

R31493

Cover

1шт.

10

21H1318

Screw

0.216" X 1/2"

2шт.

11

R100336

Gasket

1шт.

12

T26565

Dowel Pin

(USE WITH R108900)

2шт.

H79910

Dowel Pin

(USE WITH R121688)

2шт.

13

Washer

ARшт.

14

Bolt

ARшт.

19H2431

Cap Screw

3/4" X 2-1/4" (OIL PAN TO FL YWHEEL HSG) (SUB FOR 19H1782)

6шт.

R78019

Washer

(OIL PAN TO FLYWHEEL HSG)

6шт.

RE57792

Clip

(TIMING PIN PLUG)

1шт.
