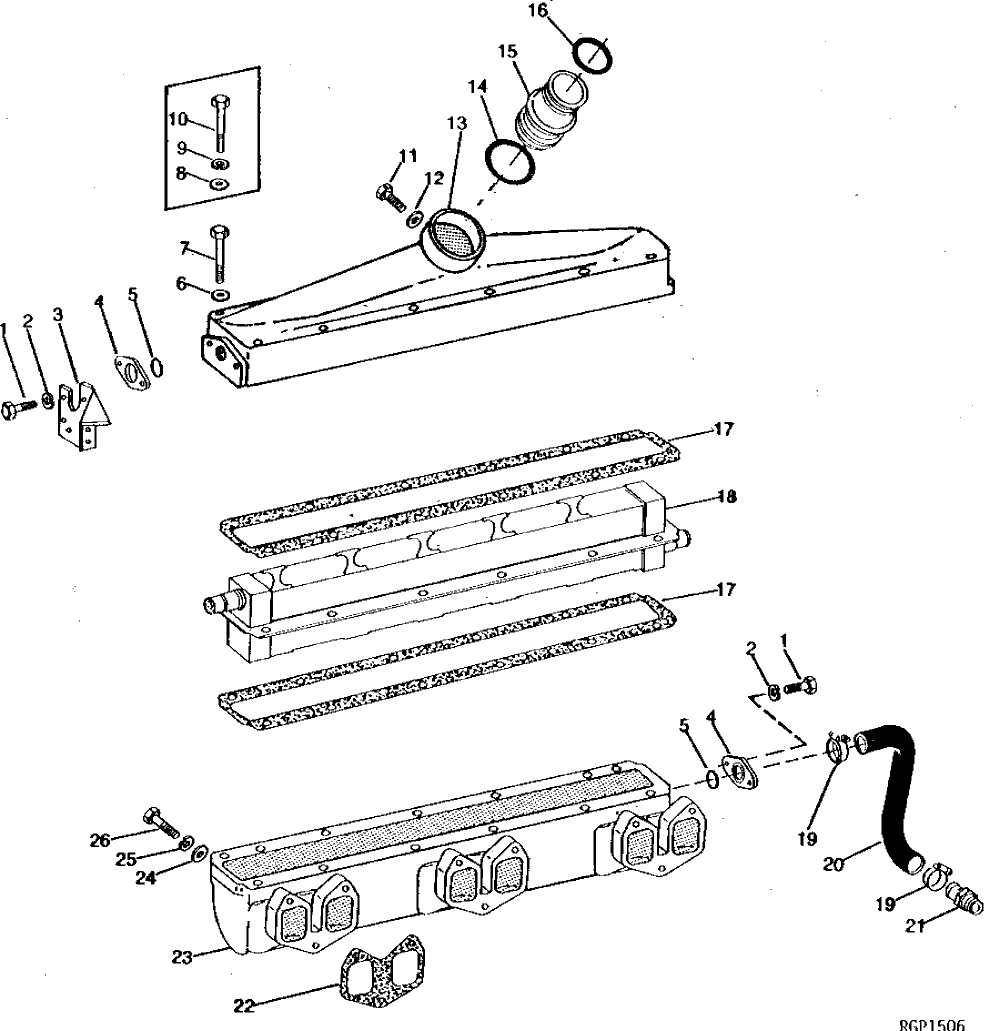

Запчасти John Deere 92DLC 2 - AFTERCOOLER AND INTAKE MANIFOLD 414 - ENGINE 4

1

19H2127

CAP SCREW

5/16" X 7/8"

4шт.

2

12H303

LOCK WASHER

5/16", (NO LONGER REQUIRED WITH 19H2127)

4шт.

3

R74006

SHIELD

1шт.

4

R49517

COVER

2шт.

5

R47153

O-RING

(SUB FOR R50420)

2шт.

6

M72490

WASHER

(SUB FOR R70234 OR R42729)

12шт.

7

19H3404

CAP SCREW

3/8" X 4"

12шт.

8

24H1305

WASHER

13/32" X 13/16" X 0.065"

12шт.

9

12H304

LOCK WASHER

3/8"

12шт.

10

19H2228

CAP SCREW

3/8" X 4", (SUB 19H3404 AND M72490)

11шт.

19H1944

CAP SCREW

3/8" X 2-3/4", (SUB 19H3404 AND M72490)

1шт.

19H2228

CAP SCREW

3/8" X 4", (SUB 19H3404 AND M72490)

12шт.

11

19H2021

CAP SCREW

3/8" X 5/8", (JD862)

1шт.

12

T11292

WASHER

(JD862)

1шт.

13

R63027

COVER

(SUB R74200 AND 19H2228)

1шт.

R74200

COVER

(JD862, JD860B)

1шт.

R97996

COVER

(992D-LC)

1шт.

14

R57517

O-RING

1шт.

15

R57518

COUPLING

1шт.

16

R49424

O-RING

1шт.

17

R53081

GASKET

2шт.

18

RE46441

INTERCOOLER

(SUB FOR AR73030 OR AR70420)

1шт.

19

TY22467

CLAMP

(SUB FOR AR21839)

2шт.

20

R49473

HOSE

1шт.

21

R49518

FITTING

1шт.

22

R40088

GASKET

3шт.

23

R59071

INTAKE MANIFOLD

1шт.

24

R63489

WASHER

0.472" X 0.925" X 0.120"

9шт.

25

LOCK WASHER

(NO LONGER REQUIRED)

9шт.

26

19H1802

CAP SCREW

7/16" X 1-7/8"

9шт.
