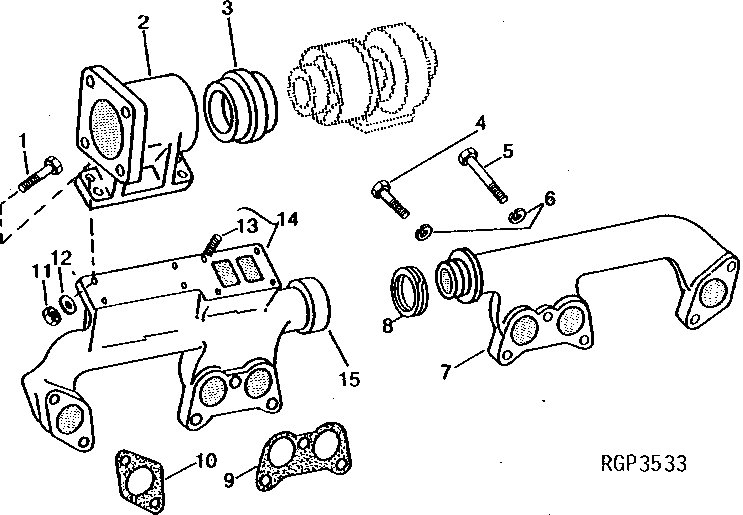

Запчасти John Deere 92DLC 2 - EXHAUST MANIFOLDS 410 - ENGINE 4

1

19H1800

CAP SCREW

3/8" X 1-1/2"

4шт.

2

R59734

FLANGE

1шт.

3

R59733

LOCKING COLLAR

1шт.

4

19H2719

CAP SCREW

7/16" X 1-7/8", (SUB FOR R53082)

6шт.

5

19H3705

CAP SCREW

7/16" X 3-1/2", (SUB FOR R53083)

4шт.

6

R63489

WASHER

10шт.

7

R120789

EXHAUST MANIFOLD

(FRONT) (SUB FOR R59730)

1шт.

8

R57703

RING

1шт.

9

R80969

GASKET

(INNER) (SUB R86454 AND R86455)

2шт.

R86455

GASKET

(INNER)

2шт.

10

R80970

GASKET

(OUTER) (SUB R86454 AND R86455)

2шт.

R86454

GASKET

(OUTER)

2шт.

11

E55662

FLANGE NUT

4шт.

12

24H1305

WASHER

13/32" X 13/16" X 0.065", (NO LONGER REQUIRED)

4шт.

13

R55078

STUD

4шт.

14

RE17470

EXHAUST MANIFOLD

(MARKED R80600) (SUB FOR AR74622) (SUB R71677 AND (4) R54500)

1шт.

AR94305

EXHAUST MANIFOLD

(MARKED R71677) (SUB FOR AR74622) (SUB R71677 AND (4) R54500) (JD862, 992D-LC, JD762)

1шт.

15

R71677

EXHAUST MANIFOLD

(REAR)

1шт.
