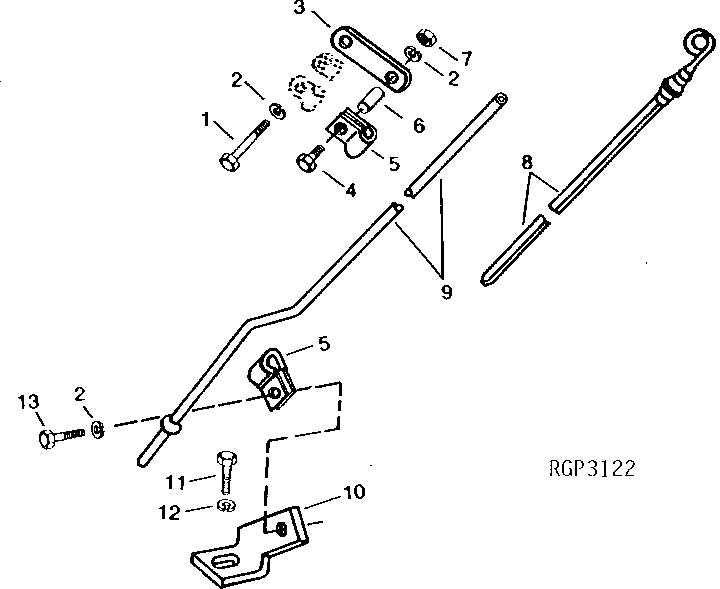

Запчасти John Deere 92DLC 18 - ENGINE OIL DIPSTICK, TUBE AND BRACKET 407 - ENGINE 4

1

19H1791

CAP SCREW

1/4" X 1-1/4"

1шт.

2

12H303

LOCK WASHER

5/16"

3шт.

3

R67453

STRAP

1шт.

4

19H1849

CAP SCREW

5/16" X 1-1/4"

1шт.

5

T13914

CLAMP

(SUB FOR T13814, THIS APPLICATION)

2шт.

6

R55599

SLEEVE

1шт.

7

14H785

NUT

5/16"

1шт.

8

AR78430

DIPSTICK

1шт.

9

R75829

DIPSTICK TUBE

1шт.

R105618

DIPSTICK TUBE

1шт.

10

R75830

BRACKET

1шт.

11

19H2284

CAP SCREW

3/8" X 7/8"

1шт.

12

12H304

LOCK WASHER

3/8"

1шт.

13

19H1900

CAP SCREW

5/16" X 3/4"

1шт.
