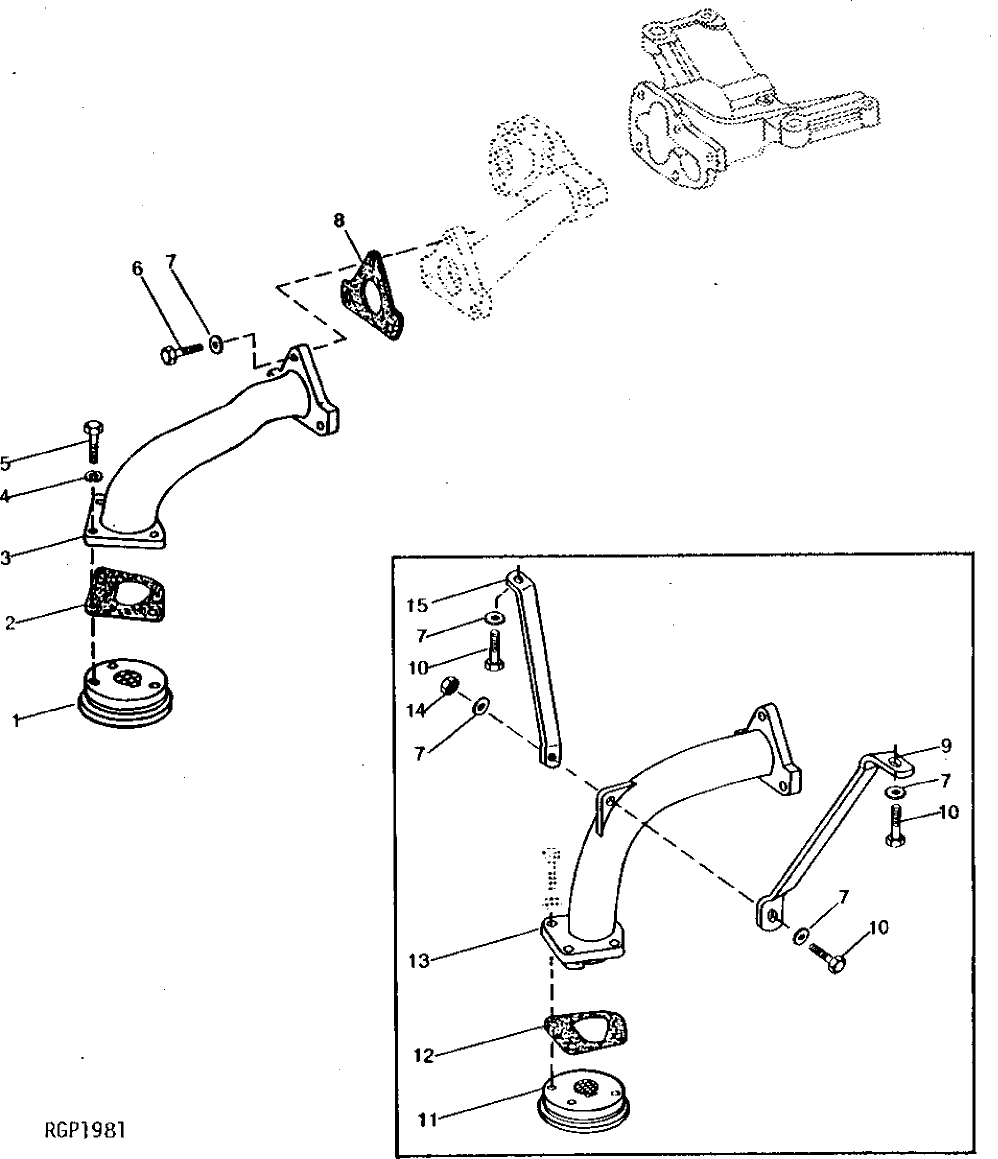

Запчасти John Deere 92DLC 6 - ENGINE OIL PUMP INTAKE 407 - ENGINE 4

1

AR99953

OIL PUMP INTAKE

1шт.

2

R74464

GASKET

1шт.

3

R74463

ELBOW FITTING

(USE WITH AR94479, AR96193 OR AR99344)

1шт.

4

12H303

LOCK WASHER

5/16"

3шт.

5

19H2127

CAP SCREW

5/16" X 7/8"

3шт.

6

19H1732

CAP SCREW

3/8" X 1-1/4"

3шт.

7

M72490

WASHER

(SUB FOR R70234 OR R42729)

3шт.

M72490

WASHER

(SUB FOR R70234 OR R42729)

7шт.

8

R71312

GASKET

1шт.

9

R70224

BRACKET

1шт.

10

19H2665

CAP SCREW

3/8" X 1-5/8"

3шт.

11

AR77711

OIL PUMP INTAKE

1шт.

12

R70475

GASKET

1шт.

13

R71505

ELBOW FITTING

1шт.

14

M63440

LOCK NUT

(SUB FOR C744DN)

1шт.

15

R70223

BRACKET

1шт.
