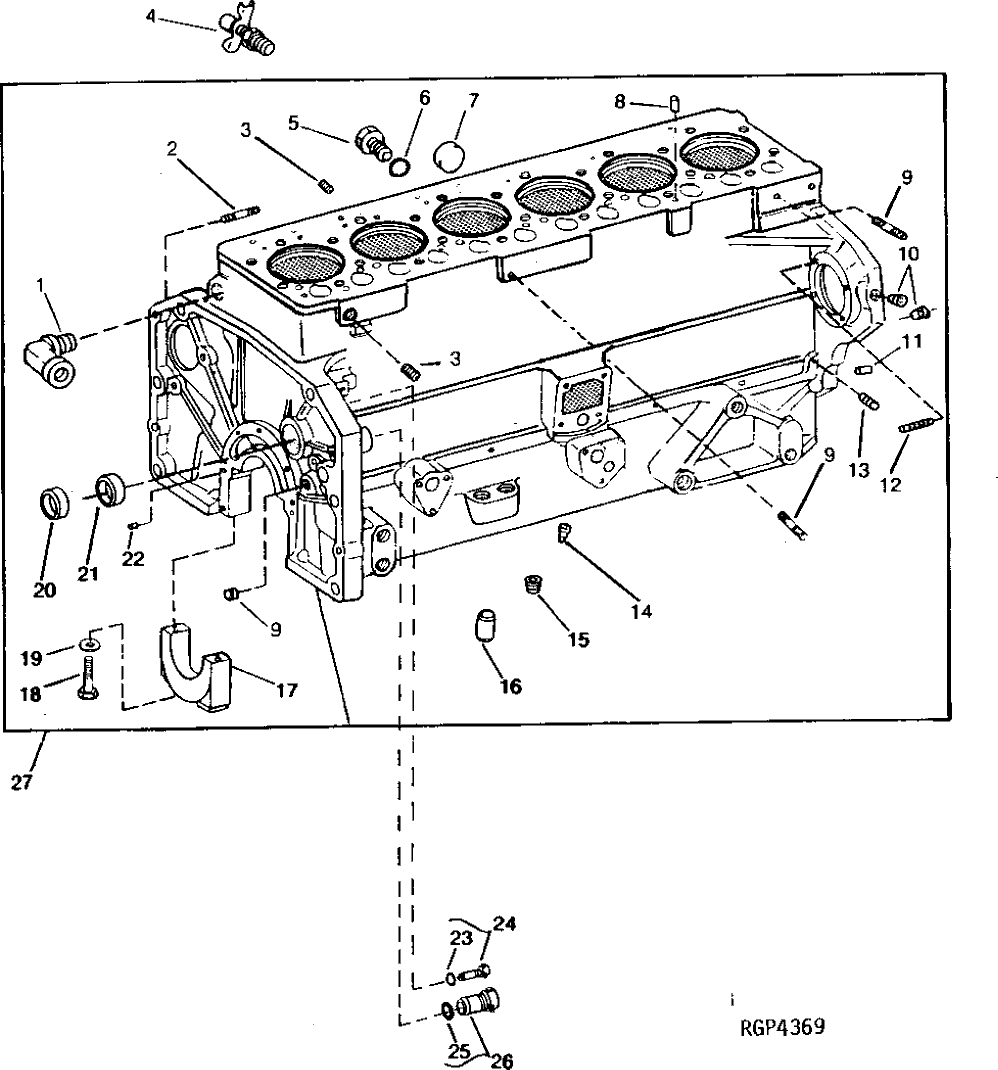

Запчасти John Deere 92DLC 4 - CYLINDER BLOCK, FITTINGS AND MAIN BEARING CAPS 404 - ENGINE 4

1

R58725

ELBOW FITTING

1шт.

2

R114129

STUD

(SUB FOR D488R, APPL)

2шт.

3

15H666

PIPE PLUG

3/8"

1шт.

15H666

PIPE PLUG

3/8" (TO BLOCK WITH R68157 OR R71485 OIL PRESSURE REGULATING HOUSING ONLY)

1шт.

4

AT13740

DRAIN VALVE

1шт.

5

R39741

DRAIN PLUG

1шт.

6

U13639

O-RING

1шт.

7

AR80294

PLUG

1шт.

8

R26241

DOWEL PIN

2шт.

9

K3083R

STUD

3шт.

10

RE57836

PIPE PLUG

1/2", (SUB FOR 15H624)

3шт.

11

R1612R

DOWEL PIN

4шт.

12

R114130

STUD

(SUB FOR R55396, APPL)

4шт.

13

R104592

PIPE PLUG

5шт.

14

R43621

ORIFICE

6шт.

15

T23434

PLUG

(USE AS REQUIRED DIPSTICK HOLE)

2шт.

16

R500642

BUSHING

(SUB FOR R62930, THIS APPLICATION)

2шт.

17

R59112

CAP

(MAIN)

6шт.

R59113

CAP

(MAIN THRUST)

1шт.

18

R60117

SCREW

14шт.

19

R70268

WASHER

14шт.

20

R26115

PLUG

1шт.

21

R46903

BUSHING

4шт.

22

F1743R

DOWEL PIN

2шт.

23

A4365R

O-RING

1шт.

24

AR61589

PLUG

1шт.

25

R27149

O-RING

1шт.

26

AR61533

PLUG

1шт.

27

RE43051

CYLINDER BLOCK

(MARKED R105739) (SUB SE500076, THIS APPLICATION)

1шт.

28

SE500076

BASIC DIESEL ENGINE REMAN

(REMANUFACTURED) (CALL 888-697-3626 FOR AVAILABILITY)

1шт.
