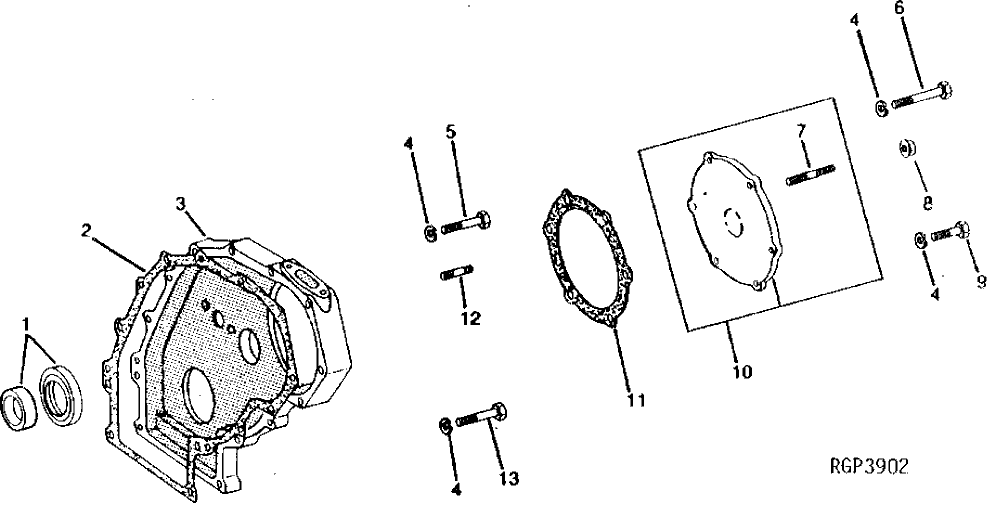

Запчасти John Deere 92DLC 2 - TIMING GEAR COVER AND ACCESS COVER 402 - ENGINE 4

1

AR49025

SEAL

1шт.

2

R49483

GASKET

1шт.

3

R77301

COVER

(SUB R110147)

1шт.

R110147

COVER

1шт.

4

12H304

LOCK WASHER

3/8", (NO LONGER REQUIRED)

13шт.

5

19H2549

CAP SCREW

3/8" X 1-7/8"

5шт.

6

19H2128

CAP SCREW

3/8" X 3"

3шт.

7

D2420R

STUD

1шт.

8

E55662

FLANGE NUT

3/8", (NO LONGER REQUIRED)

1шт.

9

19H2733

CAP SCREW

3/8" X 2-3/8"

1шт.

10

RE14129

COVER

(MARKED R55506) (SUB RE42820, R105487 AND 19H2227)

1шт.

RE42820

COVER

(MARKED R105579)

1шт.

11

R35349

GASKET

1шт.

12

R47105

STUD

(SUB FOR R32042 USE WITH BELT TIGHTENER)

1шт.

T20173

STUD

(SUB FOR R32042 USE WITH NO BELT TIGHTENER)

1шт.

13

19H1800

CAP SCREW

3/8" X 1-1/2"

4шт.
