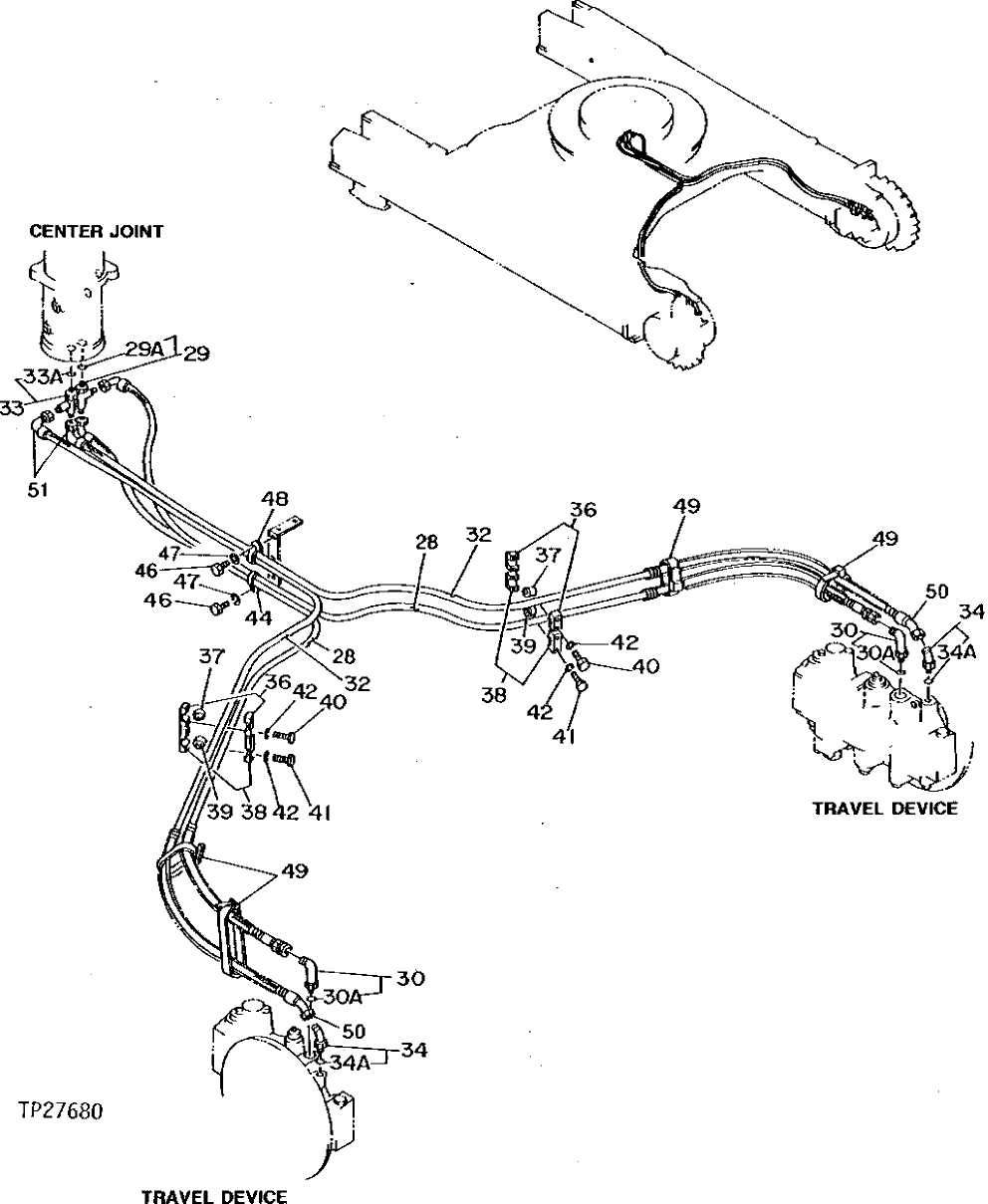

Запчасти John Deere 92DLC 14 - PROPEL HYDRAULIC LINES AND HOSES 260 - AXLES AND SUSPENSION SYSEMS 2

28

AT131905

HYDRAULIC HOSE

3/4" X 3 040 MM (119-3/4") X 3/4", (PROPEL DRAIN LINE)

2шт.

29

4217343

TEE FITTING

(SUB FOR AT131873)

1шт.

29A

4506418

O-RING

(SUB FOR U46489)

1шт.

30

4154672

ELBOW FITTING

(SUB FOR AT131872) (SUB FOR TH101008)

2шт.

30A

4506418

O-RING

(SUB FOR U46489)

1шт.

32

AA36172

HYDRAULIC HOSE

(SUB FOR AT131904, ALONG WITH AE24616 AND AU43156) (TWO SPEED PILOT CONTROL LINES)

2шт.

33

4205363

TEE FITTING

(SUB FOR AT126362)

1шт.

33A

CH11570

O-RING

1шт.

34

4190244

ELBOW FITTING

(SUB FOR TH106152)

2шт.

34A

CH11570

O-RING

1шт.

36

4186040

CLAMP

(SUB FOR AT131722)

2шт.

37

4186041

BUSHING

(SUB FOR AT131723)

2шт.

38

4217754

CLAMP

(SUB FOR AT131894)

2шт.

39

4217755

BUSHING

(SUB FOR AT131895)

2шт.

40

19M8397

CAP SCREW

M8 X 50

4шт.

41

19M8402

CAP SCREW

M8 X 65

4шт.

42

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

8шт.

44

4190266

CLIP

(SUB FOR TH108793)

1шт.

46

19M8324

CAP SCREW

M10 X 16

2шт.

47

12M7066

LOCK WASHER

10 MM

2шт.

48

T32854

CLAMP

(SUB FOR AT121964)

1шт.

49

H77698

TIE BAND

(SUB FOR TH106422)

8шт.

50

AU43156

ELBOW FITTING

2шт.

51

AE24616

ELBOW FITTING

2шт.
