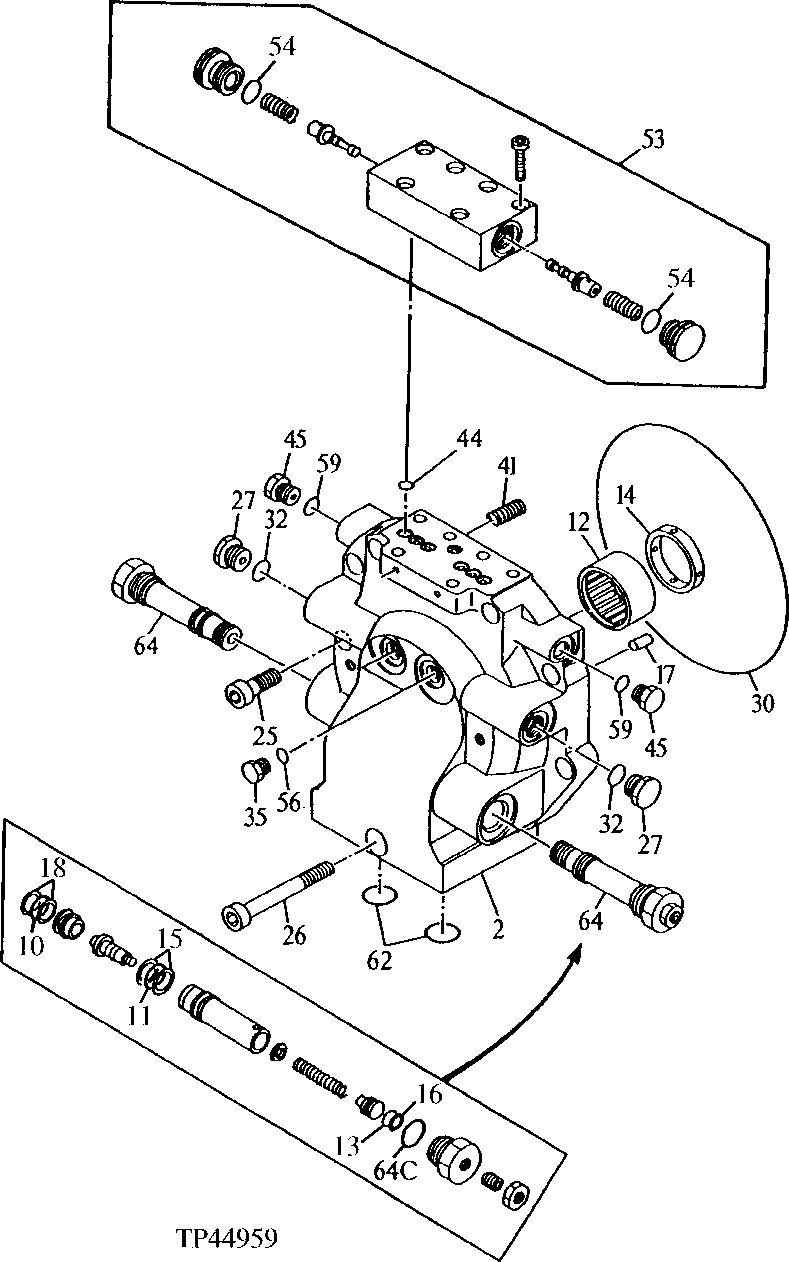

Запчасти John Deere 92DLC 10 - PROPEL MOTOR 260 - AXLES AND SUSPENSION SYSEMS 2

2

0352202

COVER

(SUB FOR AT132239)

1шт.

10

4506418

O-RING

(SUB FOR U46489)

1шт.

11

CH12329

PACKING

1шт.

12

CE15060

NEEDLE BEARING

(SUB FOR AT132246)

1шт.

13

CH10568

PACKING

1шт.

14

0352211

BUSHING

(SUB FOR AT132248)

1шт.

15

4027959

BACK-UP RING

(SUB FOR TH102654) (SUB FOR TH100771)

2шт.

16

4027963

BACK-UP RING

(SUB FOR TH103579)

1шт.

17

0352213

PIN FASTENER

(SUB FOR AT132250)

1шт.

18

4033725

BACK-UP RING

(SUB FOR TH103576)

2шт.

25

0288618

BOLT

(SUB FOR AT127285)

6шт.

26

4168975

BOLT

(SUB FOR AT132176)

1шт.

27

0251321

PLUG

(SUB FOR AT132254, THIS APPLICATION) (SUB FOR AT201969)

2шт.

30

0419806

O-RING

(SUB FOR AT132256) (SUB FOR AT201977)

1шт.

32

4506418

O-RING

(SUB FOR U46489)

2шт.

35

0419902

FITTING PLUG

(SUB FOR TH109062, THIS APPLICATION) (SUB FOR AT201563)

2шт.

41

0352223

SPRING

(SUB FOR AT132260)

10шт.

44

CH17167

O-RING

7шт.

45

0187502

DRAIN PLUG

(SUB FOR AT132178) (SUB FOR TH110242)

2шт.

53

0352228

FLOW CONTROL HYD. VALVE

(SUB FOR AT132264)

1шт.

54

AT318035

O-RING

(SUB FOR 4506424, TH100055)

2шт.

56

M800650

PACKING

2шт.

59

CH11570

O-RING

2шт.

62

AT264348

O-RING

(SUB FOR TH102788)

2шт.

64

0352229

PRESSURE RELIEF VALVE

(SUB FOR AT132265)

2шт.

64C

U17409

O-RING

1шт.

70

4299090EX

HYDRAULIC MOTOR REMAN

(SUB FOR AT167497) (USE IF AVAILABLE) (IF AT167497 NOT AVAILABLE, SUB AT217351) (NOT ILLUSTRATED) (CONTAINS BRAKE VALVE AND ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGE)

1шт.

4299090EX

HYDRAULIC MOTOR REMAN

(REMANUFACTURED) (SUB FOR AT131911 AND AT167497) (SUB FOR AT217351) (NOT ILLUSTRATED) (CONTAINS BRAKE VALVE AND ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGE)

1шт.
