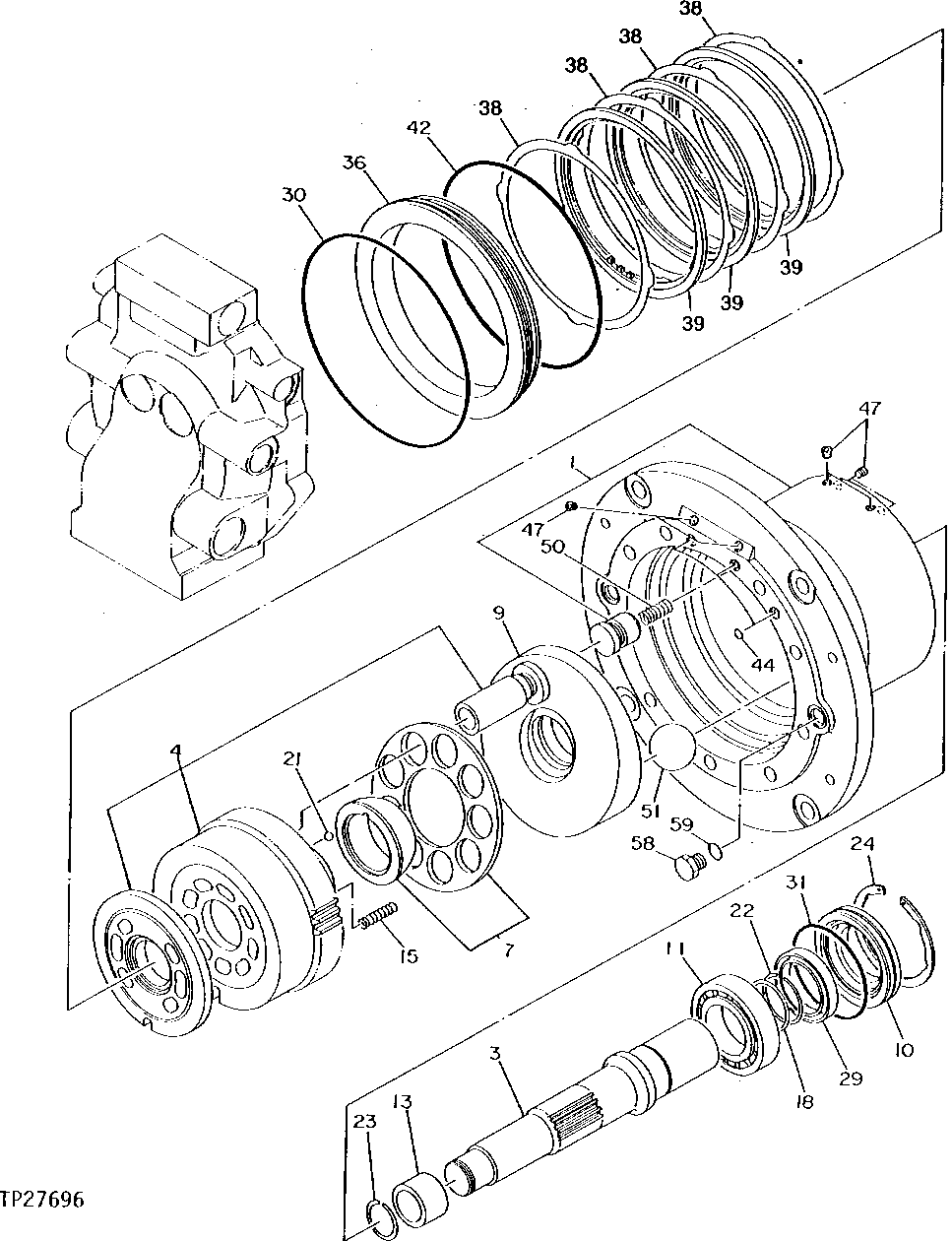

Запчасти John Deere 92DLC 8 - PROPEL MOTOR 260 - AXLES AND SUSPENSION SYSEMS 2

1

CASE

1шт.

3

0352203

SHAFT

(SUB FOR AT132240)

1шт.

4

0352204

CYLINDER BLOCK

(SUB FOR AT132241)

1шт.

7

0352205

PLATE

(SUB FOR AT132242)

1шт.

9

0352206

PLATE

(SUB FOR AT132243)

1шт.

10

0352207

CASE

(SUB FOR AT132244)

1шт.

11

JD10204

CYLINDRICAL ROLLER BEARING

(SUB FOR AT132245)

1шт.

13

0352210

BEARING RACE

(SUB FOR AT132247)

1шт.

15

0352212

SPRING

(SUB FOR AT132249)

9шт.

18

L39999

WASHER

(SUB FOR AT132251 OR 0352214)

1шт.

21

400R

BALL

(SUB FOR TH103565)

1шт.

22

0352215

RING

(SUB FOR AT132252)

1шт.

23

0352216

RING

(SUB FOR AT132253)

1шт.

24

0311317

SNAP RING

(SUB FOR TH109060)

1шт.

29

0352218

SEAL

(SUB FOR AT132255)

1шт.

30

0419806

O-RING

(SUB FOR AT132256) (SUB FOR AT201977)

1шт.

31

AT264223

O-RING

(SUB FOR AT121852, A811105)

1шт.

36

0352220

PISTON

(SUB FOR AT132257)

1шт.

38

0352221

PLATE

(SUB FOR AT132258)

4шт.

39

0419808

PLATE

(SUB FOR AT132259, THIS APPLICATION) (SUB FOR AT201978)

3шт.

42

0419809

O-RING

(SUB FOR AT132261)

1шт.

44

CH17167

O-RING

3шт.

47

15H560

PIPE PLUG

1/16"

6шт.

50

0352226

SPRING

(SUB FOR AT132262)

4шт.

51

0352227

BALL

(SUB FOR AT132263)

2шт.

58

0311336

PIPE PLUG

(SUB FOR TH109082)

2шт.

59

CH11570

O-RING

2шт.

70

4299090EX

HYDRAULIC MOTOR REMAN

(SUB FOR AT167497) (USE IF AVAILABLE) (IF AT167497 NOT AVAILABLE, SUB AT217351) (NOT ILLUSTRATED) (CONTAINS BRAKE VALVE AND ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON FOLLOWING PAGE)

1шт.

4299090EX

HYDRAULIC MOTOR REMAN

(REMANUFACTURED) (SUB FOR AT131911 AND AT167497) (SUB FOR AT217351) (NOT ILLUSTRATED) (CONTAINS BRAKE VALVE AND ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON FOLLOWING PAGE)

1шт.
