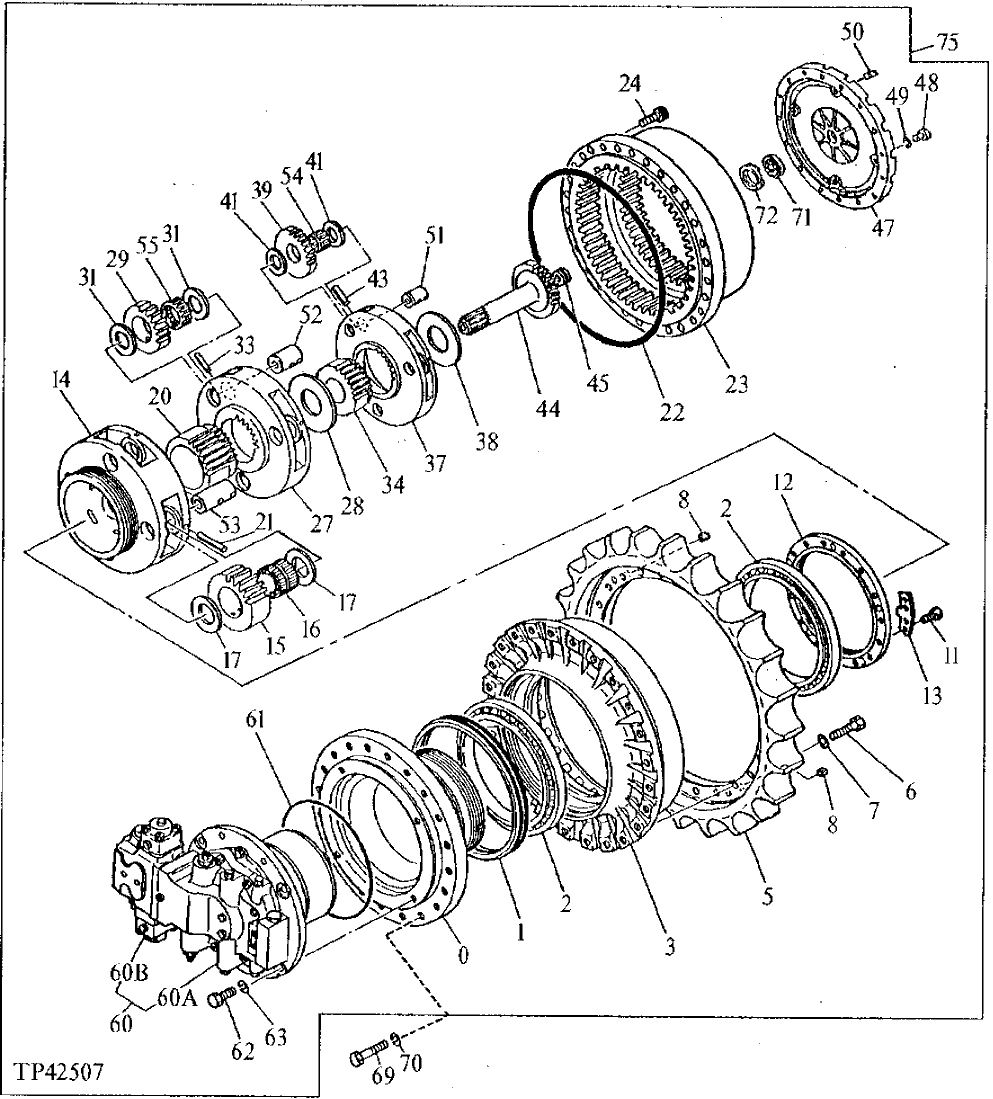

Запчасти John Deere 92DLC 6 - PROPEL PLANETARY DRIVE 260 - AXLES AND SUSPENSION SYSEMS 2

0

1011127

SPINDLE

(SUB FOR AT131570)

1шт.

1

AT131736

SEAL

1шт.

2

4200411

TAPERED ROLLER BEARING

(SUB FOR AT131735)

2шт.

3

1011126

DRUM

(SUB FOR AT131569)

1шт.

5

4S00540

CHAIN SPROCKET

(SUB FOR AT131565, 1010956 OR 1028494)

1шт.

6

T214405

BOLT

(SUB FOR TH101870, J932270)

24шт.

7

12H245

LOCK WASHER

24шт.

8

99M7010

PLUG

(SUB FOR TH109402)

2шт.

PLUG

(NOT REQUIRED)

2шт.

11

19M7872

CAP SCREW

M12 X 25, (SUB FOR TH105688)

2шт.

12

3043140

RETAINER

(SUB FOR AT131651)

1шт.

13

3043141

LOCK PLATE

(SUB FOR AT131652)

1шт.

14

1020640

PLANET PINION CARRIER

(SUB FOR AT131575) (SUB FOR AT168827)

1шт.

15

3038190

GEAR

(SUB FOR AT131617)

4шт.

16

4222930

NEEDLE BEARING

(SUB FOR AT131910)

4шт.

17

4219595

THRUST WASHER

(SUB FOR AT131899)

8шт.

20

2024380

SUN GEAR

(SUB FOR AT131587)

1шт.

21

34H343

SPRING PIN

(SUB FOR AT131852)

4шт.

22

4203187

O-RING

(SUB FOR AT131751)

1шт.

23

1011130

RING GEAR

(SUB FOR AT131573)

1шт.

24

M341850

BOLT

(SUB FOR AT131557)

30шт.

27

1011128

PLANET PINION CARRIER

(SUB FOR AT131571)

1шт.

28

4201966

WASHER

(SUB FOR AT131745)

1шт.

29

3038191

GEAR

(SUB FOR AT131618)

3шт.

31

4201968

SHIM

(SUB FOR AT131747)

6шт.

33

4203180

SPRING PIN

(SUB FOR AT131748)

3шт.

34

2024381

SUN GEAR

(SUB FOR AT131588)

1шт.

37

1011129

PLANET PINION CARRIER

(SUB FOR AT131572)

1шт.

38

4201965

WASHER

(SUB FOR AT131744)

1шт.

39

3038187

GEAR

(SUB FOR AT131616)

3шт.

41

4201967

SHIM

(SUB FOR AT131746)

6шт.

43

4192020

SPRING PIN

(SUB FOR TH111239)

3шт.

44

2024382

SHAFT

(SUB FOR AT131589)

1шт.

45

RETAINER

(SUB FOR AT160248) ( 4246690 NO LONGER AVAILABLE) (SUB 1018010, ALONG WITH 4274541, 4295204 AND 4295232)

1шт.

4295232

PIN

(SUB FOR AT160246)

1шт.

47

COVER

(SUB FOR AT160248) ( AT131574 NO LONGER AVAILABLE) (SUB 1018010, ALONG WITH 4274541, 4295204 AND 4295232)

1шт.

1018010

COVER

(SUB FOR AT160247)

1шт.

48

19M6332

CAP SCREW

M14 X 35

16шт.

4373463

BOLT

(SUB FOR AT217130)

16шт.

49

12H317

LOCK WASHER

9/16"

16шт.

50

4241426

FITTING PLUG

(SUB FOR TH111907)

3шт.

51

3042696

BUSHING

(SUB FOR AT131647)

3шт.

52

3042697

BUSHING

(SUB FOR AT131648)

3шт.

53

3042698

BUSHING

(SUB FOR AT131649)

4шт.

54

4228364

NEEDLE BEARING

(SUB FOR AT131935)

3шт.

55

4228365

NEEDLE BEARING

(SUB FOR AT131936)

3шт.

60

4299090EX

HYDRAULIC MOTOR REMAN

(SUB FOR AT167497) (USE IF AVAILABLE) (IF AT167497 NOT AVAILABLE, SUB AT217351)

1шт.

4299090EX

HYDRAULIC MOTOR REMAN

(SUB FOR AT217351) (REMANUFACTURED)

1шт.

60A

MOTOR

(SUB AT167497 OR AT217351)

1шт.

60B

4299637

FLOW CONTROL HYD. VALVE

(SUB FOR AT131953) (SUB FOR AT167498)

1шт.

61

4271596

O-RING

(SUB FOR AT131752)

1шт.

62

19M8969

CAP SCREW

M18 X 60, (SUB FOR J911860)

4шт.

63

12H236

LOCK WASHER

3/4"

4шт.

69

J932200

BOLT

(SUB FOR AT122492)

40шт.

70

T56006

WASHER

40шт.

71

4274541

BALL BEARING

(SUB FOR AT160248)

1шт.

72

4295204

SNAP RING

(SUB FOR AT160249)

1шт.

75

MOTOR

( AT132126 NO LONGER AVAILABLE, SUB INDIVIDUAL COMPONENTS)

1шт.
