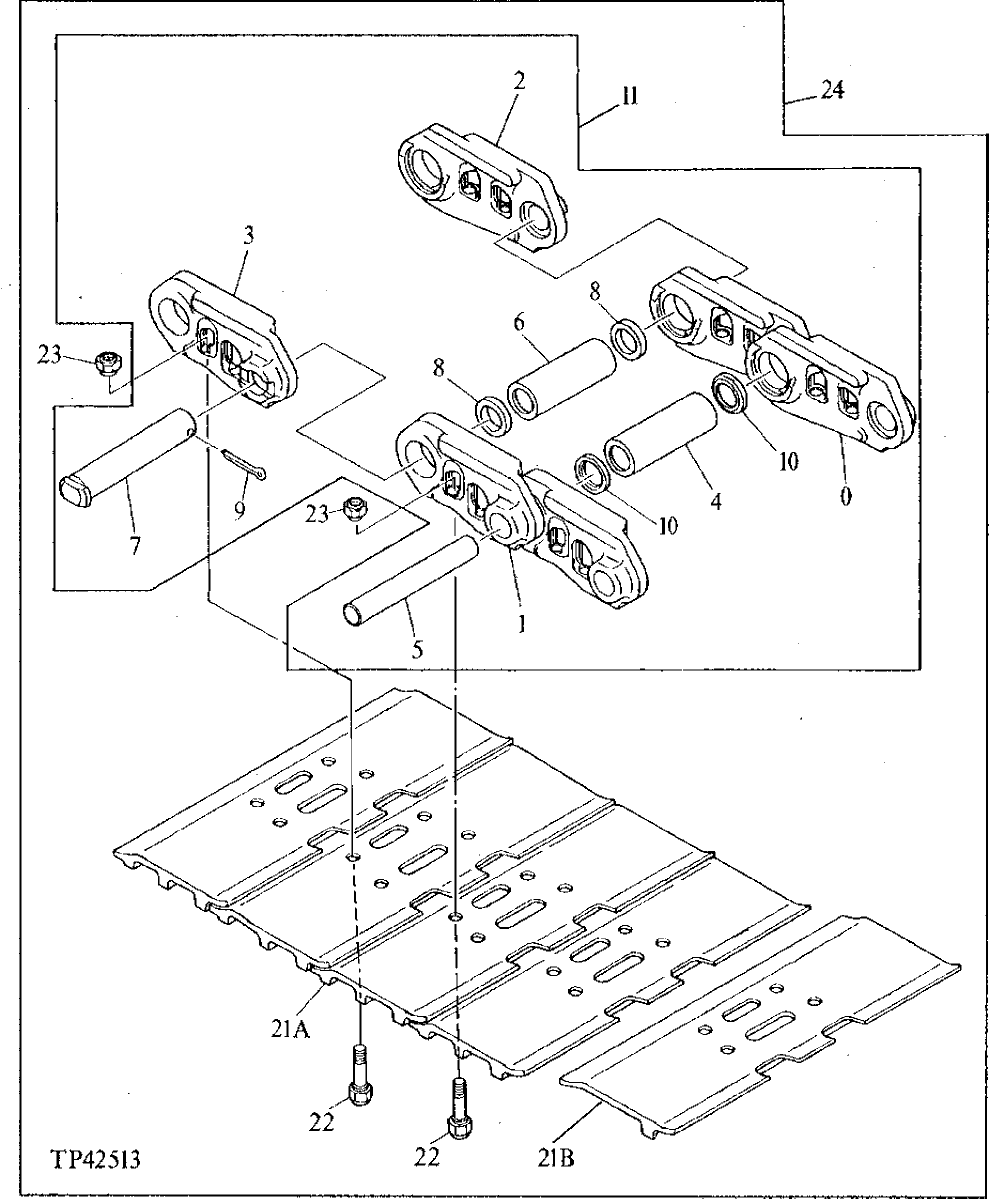

Запчасти John Deere 92DLC 14 - TRACK CHAIN 130 - WHEELS 1

0

AT132150

STRUTTED LINK-RH

RIGHT

52шт.

1

AT132151

STRUTTED LINK-LH

LEFT

52шт.

2

AT132521

MASTER TRACK LINK-RH

RIGHT, (MASTER)

1шт.

3

AT132522

MASTER TRACK LINK-LH

LEFT, (MASTER)

1шт.

4

KIT

( AT132152 NO LONGER AVAILABLE)

52шт.

5

AT132153

PIN

52шт.

6

AT132505

BUSHING

MASTER

1шт.

7

AT132569

MASTER TRACK PIN

MASTER

1шт.

8

KIT

( AT132524 NO LONGER AVAILABLE)

2шт.

9

11H259

COTTER PIN

3/8" X 3-1/2", (SUB FOR AT132456)

1шт.

10

AT132527

SEAL

104шт.

11

AT132591

TRACK CHAIN W/O SHOES

1шт.

21A

4232904

OPEN CENTER 3 BAR SHOE

(SUB FOR AT132525) (750MM - 30 INCH)

53шт.

4232905

OPEN CENTER 3 BAR SHOE

(SUB FOR AT132526) (900MM - 36 INCH)

53шт.

21B

4313832

OPEN CENTER 1 BAR SHOE

(SUB FOR AT157545) (750MM - 30 INCH)

53шт.

22

4229948

BOLT

(SUB FOR AT132523)

212шт.

23

4198449

NUT

(SUB FOR AT132497)

212шт.

24

TRACK LINK

750MM GROUSER, ( AT132592 NO LONGER AVAILABLE)

2шт.

TRACK LINK

900MM GROUSER, ( AT132593 NO LONGER AVAILABLE)

2шт.
